SRM-265 S - Echo String Trimmer (SN: S80913001001 - S80913999999) Carburetor -- RB-K84 Parts Diagram

String Trimmer

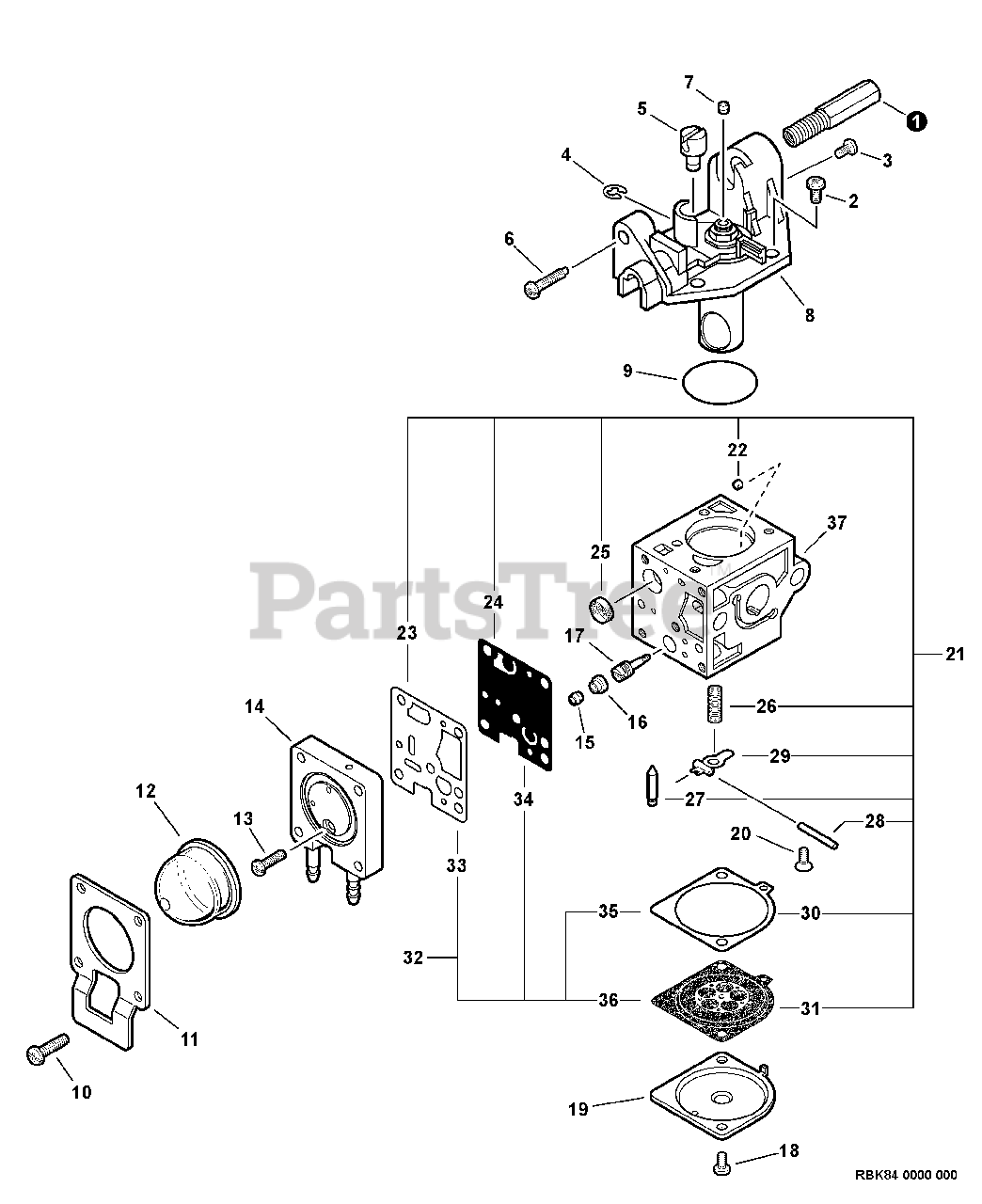

Carburetor -- RB-K84 Parts Diagram

  • Title

Echo A021001201

CARBURETOR RB-K84
(Superseded to A021001202)

$89.99

$

In Stock, Qty 6

0

1

Echo P005001330

NUT, CABLE ADJUST

$3.99

$

In Stock, Qty 6

0

$2.49

$

In Stock, Qty 12

0

$0.99

$

In Stock, Qty 8

0

4

Echo P005000190

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

5

$4.99

$

In Stock, only 1 left!

0

6

Echo P005000100

SCREW, IDLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 20+

0

8

Echo P005001980

ROTOR COVER ASSY

$27.99

$

In Stock, only 1 left!

0

9

$3.49

$

In Stock, only 4 left!

0

10

Echo P005001900

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

11

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

12

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

13

Echo P005000270

SCREW, PURGE BASE

$1.49

$

In Stock, Qty 20+

0

14

Echo P005001890

BASE, PURGE

$18.99

$

In Stock, Qty 16

0

15

$1.49

$

In Stock, Qty 20+

0

16

Echo P005001250

CAP, LIMITER

$1.49

$

Usually ships in 2-4 days

0

17

Echo P005001290

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

18

$0.99

$

In Stock, Qty 8

0

19

Echo 12534252130

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

20

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

21

Echo P005002290

REPAIR KIT

Note: Includes ITEMS 22-31

$16.99

$

In Stock, Qty 20+

0

22

Echo P005001000

GUIDE, ROLLER

$1.99

$

In Stock, Qty 5

0

23

------------------

GASKET, PUMP

$

$

Not available

24

------------------

DIAPHRAGM, PUMP

$

$

Not available

25

------------------

STRAINER

$

$

Not available

26

------------------

SPRING, METERING LEVER

$

$

Not available

27

------------------

VALVE, INLET NEEDLE

$

$

Not available

28

------------------

PIN, METERING LEVER

$

$

Not available

29

------------------

LEVER, METERING

$

$

Not available

30

------------------

GASKET, METERING

$

$

Not available

31

------------------

DIAPHRAGM, METERING

$

$

Not available

32

Echo P005002270

DIAPHRAGM/GASKET KIT

Note: Includes ITEMS 33-36

$10.99

$

In Stock, Qty 14

0

33

------------------

GASKET, PUMP

$

$

Not available

34

------------------

DIAPHRAGM, PUMP

$

$

Not available

35

------------------

GASKET, METERING

$

$

Not available

36

------------------

DIAPHRAGM, METERING

$

$

Not available

37

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
