SRM-2620 U - Echo Brush Cutter (SN: U44515001001 - U44515999999) Gear Case Parts Diagram

Brush Cutter

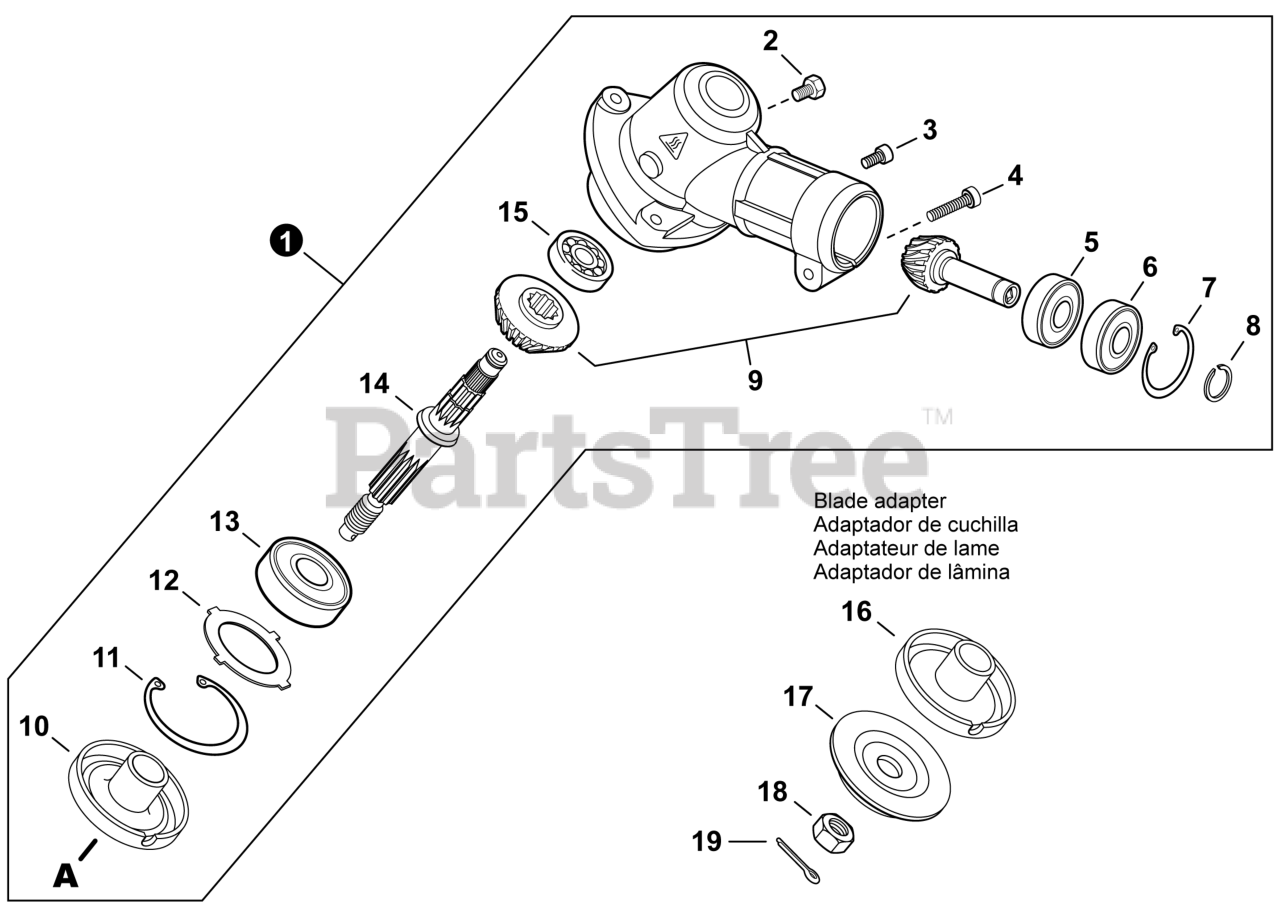

Gear Case Parts Diagram

  • Title

1

Echo P021051520

GEAR CASE ASSY

Note: Includes items 2-15

$103.99

$

In Stock, only 1 left!

0

2

Echo 61043450031

BOLT M8x8

$1.99

$

In Stock, Qty 6

0

3

Echo V805000140

BOLT, TORX 5x12

$0.99

$

In Stock, Qty 20+

0

4

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

5

Echo 9411000609

BEARING, BALL 609A

$10.99

$

Usually ships in 2-4 days

0

6

Echo 9411100609

BEARING, BALL 609ZA

$10.99

$

Usually ships in 2-4 days

0

7

Echo 90070200025

RING, SNAP 25

$1.99

$

In Stock, Qty 5

0

8

Echo 90070100009

RING, SNAP 9

$

$

Not available

9

Echo V000000250

GEAR SET

$69.99

$

In Stock, only 1 left!

0

10

Echo C535000210

PLATE, ADAPTOR - UPPER

$12.99

$

Usually ships in 2-4 days

0

11

Echo 90070200032

RING, SNAP 32

$1.99

$

In Stock, Qty 13

0

12

Echo V340000180

WASHER

$1.49

$

In Stock, only 4 left!

0

13

Echo 90081206201

BEARING, BALL 6201

$12.99

$

In Stock, only 2 left!

0

14

Echo C534001090

SHAFT, GEAR

$50.99

$

In Stock, only 2 left!

0

15

Echo 9411000629

BEARING, BALL 629A

$10.99

$

Usually ships in 2-4 days

0

16

Echo C535001240

PLATE, ADAPTOR - UPPER

$19.99

$

In Stock, only 1 left!

0

17

Echo C535000150

PLATE, ADAPTOR - LOWER

Note: Arbor style

$9.49

$

In Stock, Qty 7

0

18

Echo 90051100010

NUT 10

$1.49

$

In Stock, Qty 9

0

19

Echo 90030020022

PIN, COTTER 2x22

$0.99

$

In Stock, Qty 20+

0
