SRM-2620 U - Echo Brush Cutter (SN: T89615001001 - T89615999999) Gear Case Parts Diagram

Brush Cutter

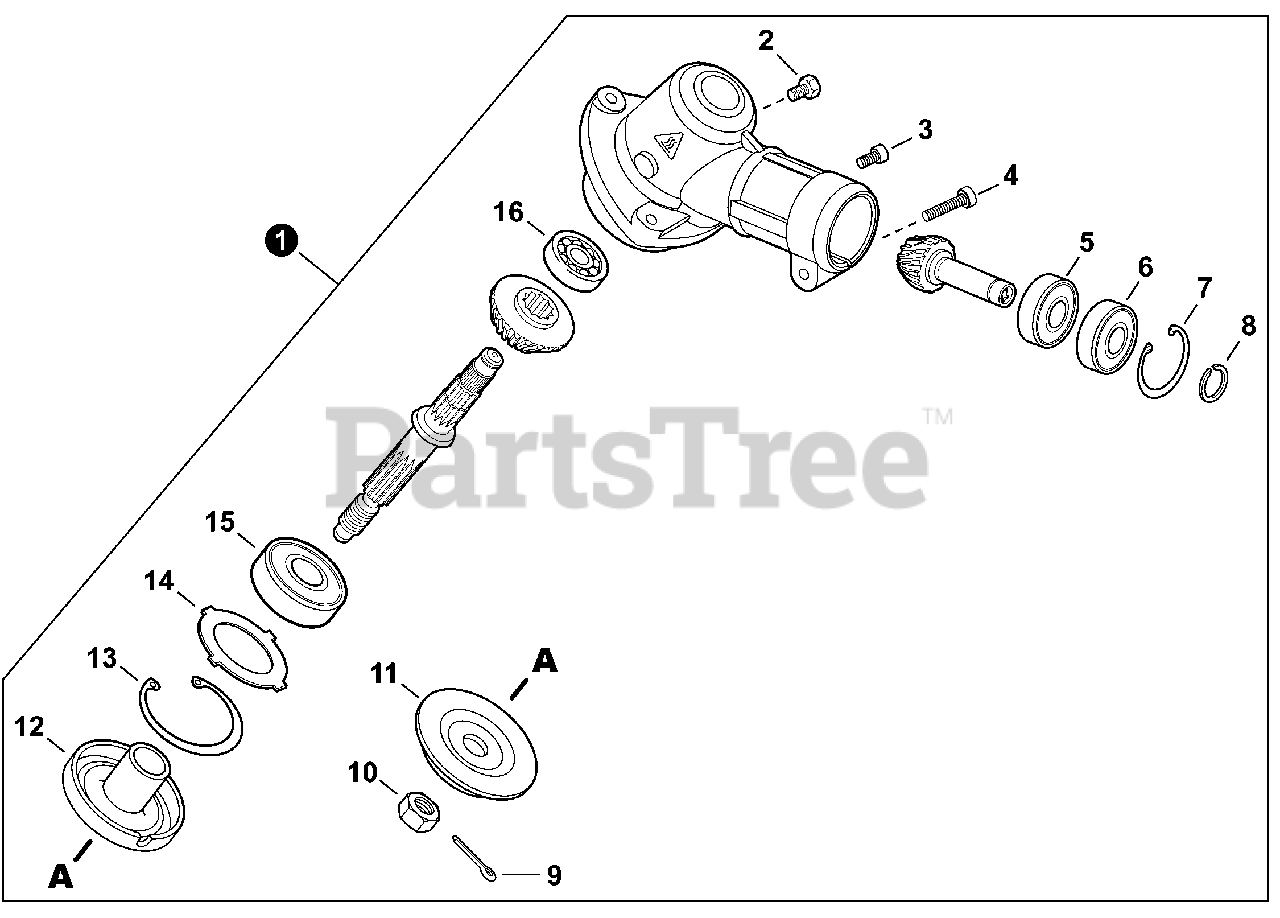

Gear Case Parts Diagram

  • Title

1

Echo P021051230

GEAR CASE ASSY
(Superseded to P021051231)

Note: Includes ITEMS 2-16

$100.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 6

0

3

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

4

Echo V805000170

BOLT, TORX 5×25

$0.99

$

Usually ships in 2-4 days

0

5

Echo 9406000609

BEARING, BALL 609
(Superseded to 90080000609)

$9.99

$

In Stock, Qty 11

0

6

Echo 90080300609

BEARING, BALL 609

$15.99

$

Usually ships in 2-4 days

0

7

Echo 90070200025

RING, SNAP Ø25

$1.99

$

In Stock, Qty 5

0

8

Echo 90070100009

RING, SNAP Ø9

$

$

Not available

9

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

10

Echo 90051100010

NUT 10

$1.49

$

In Stock, Qty 6

0

11

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$9.49

$

In Stock, only 2 left!

0

12

Echo C535000941

PLATE, ADAPTOR - UPPER
(Superseded to C535001240)

$19.99

$

In Stock, only 2 left!

0

13

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 14

0

14

Echo V340000180

WASHER

$1.49

$

In Stock, Qty 5

0

15

Echo 90081206201

BEARING, BALL 6201

$12.99

$

In Stock, only 3 left!

0

16

Echo 90081000629

BEARING, BALL 629

$15.99

$

In Stock, only 2 left!

0
