SRM-2620 T - Echo String Trimmer (SN: U44415001001 - U44415999999) Fuel System Parts Diagram

String Trimmer

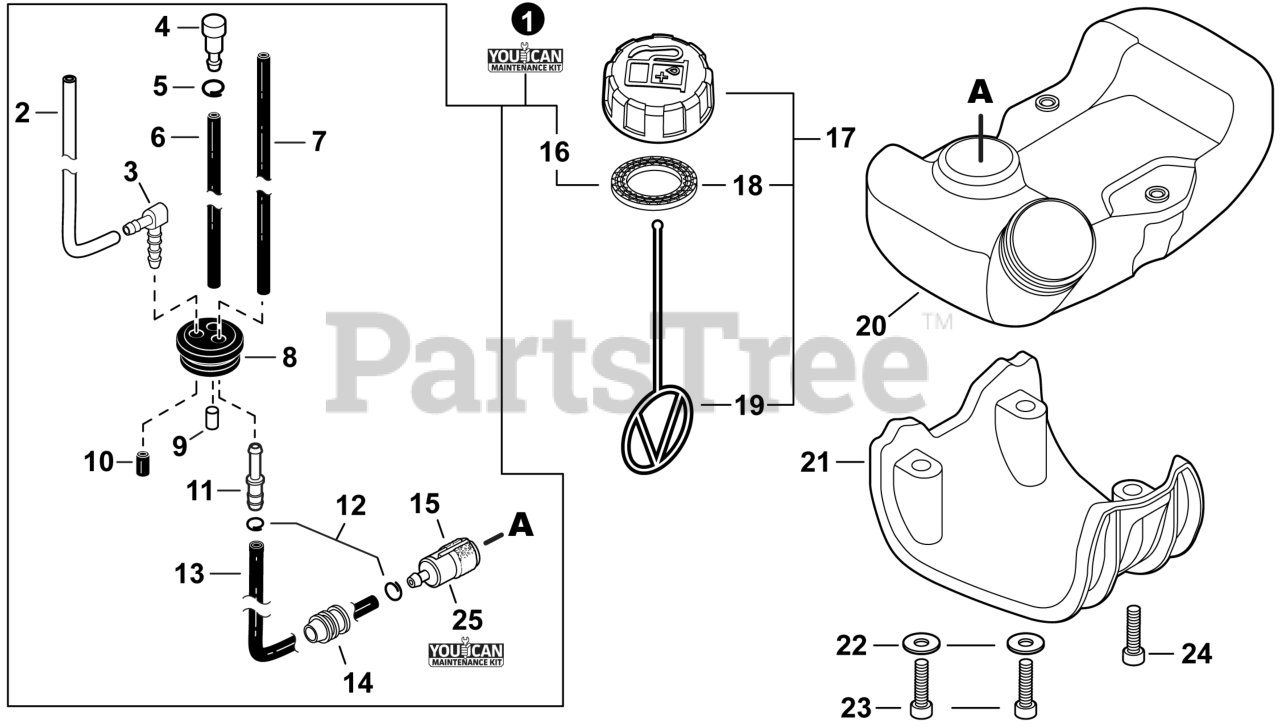

Fuel System Parts Diagram

  • Title

1

Echo 90182Y

FUEL SYSTEM KIT - YOUCANT

Note: Includes items 2-16

$35.99

$

In Stock, Qty 11

0

2

Echo 13201256030

PIPE, FUEL 3x6x80 YELLOW

$3.49

$

In Stock, Qty 20+

0

3

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

4

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

5

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

6

Echo 13201006531

PIPE, FUEL 3x6x85 BLACK

$2.49

$

In Stock, only 3 left!

0

7

Echo V471005650

PIPE, FUEL 3x5.5x83 BLACK

$3.49

$

In Stock, Qty 20+

0

8

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

9

Echo 13131435430

FILTER, VENT

$1.49

$

In Stock, Qty 8

0

10

Echo V471005440

PIPE, FUEL 3x7x10 BLACK

$0.99

$

Usually ships in 2-4 days

0

11

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

12

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 15

0

13

Echo V471003651

PIPE, FUEL - 3x5x125 - BLACK

$1.49

$

In Stock, Qty 5

0

14

Echo A413000190

BOOT

$1.99

$

In Stock, Qty 8

0

15

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

16

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.49

$

In Stock, Qty 20+

0

17

Echo P021053030

CAP ASSY, FUEL
(Superseded to P021040430)

Note: Includes items 18-19

$5.99

$

In Stock, Qty 20+

0

18

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.49

$

In Stock, Qty 20+

0

19

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

20

Echo A350002760

TANK, FUEL

$36.99

$

In Stock, only 1 left!

0

21

Echo A175000040

GUARD, FUEL TANK

$7.99

$

In Stock, only 1 left!

0

22

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo V805000170

BOLT, TORX 5x25

$0.99

$

Usually ships in 2-4 days

0

24

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

25

Echo 90181Y

TUNE-UP KIT - YOUCANT

$41.99

$

In Stock, only 2 left!

0
