SRM-2620 T - Echo String Trimmer (SN: T94315001001 - T94315999999) Gear Case Parts Diagram

String Trimmer

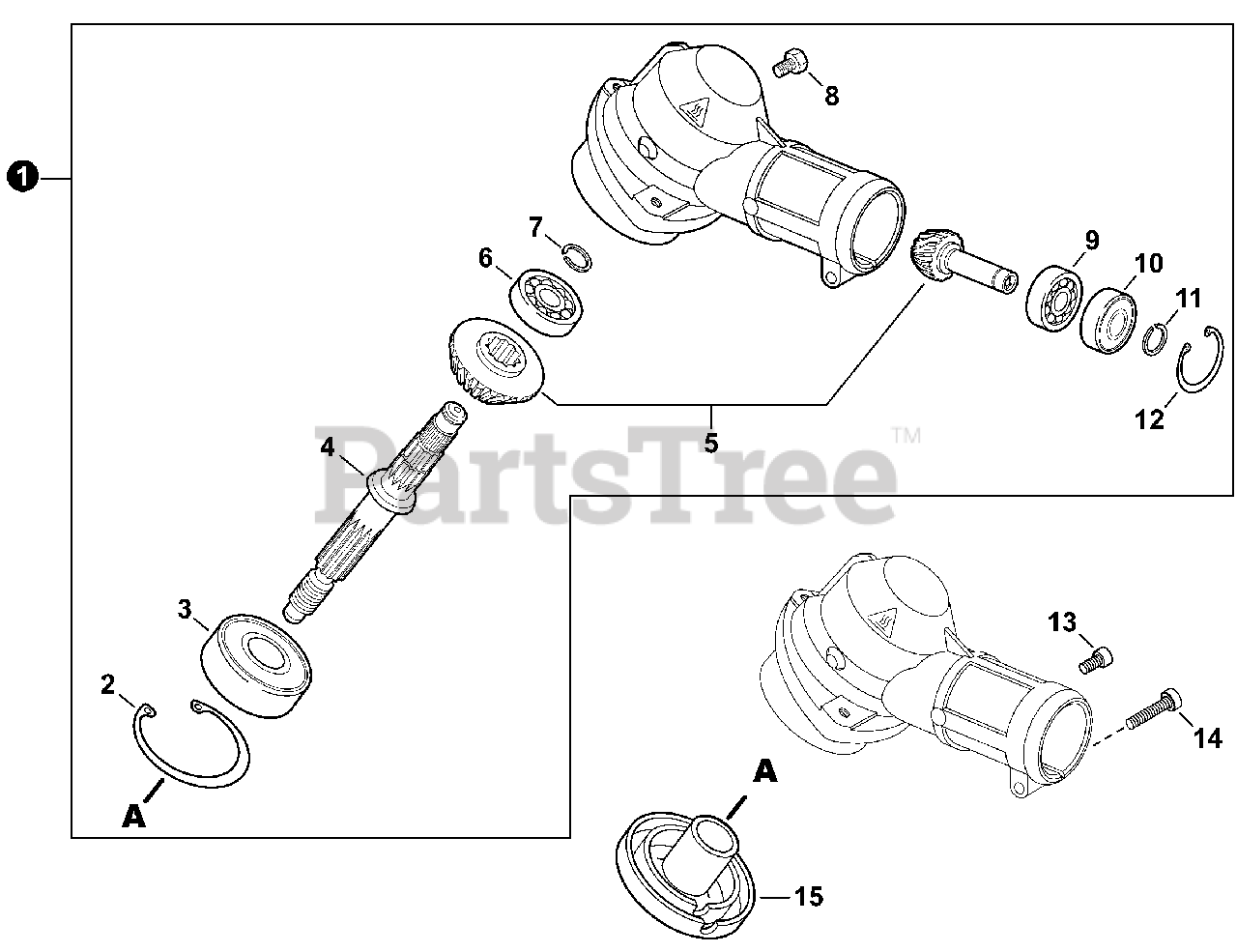

Gear Case Parts Diagram

  • Title

1

Echo C051001350

GEAR CASE ASSY
(Superseded to C051001351)

Note: Includes ITEMS 2-12

$121.99

$

In Stock, only 1 left!

0

2

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 16

0

3

Echo 90081206302

BEARING, BALL 6302

$16.99

$

In Stock, Qty 7

0

4

Echo C534000220

SHAFT, GEAR

$60.99

$

In Stock, only 1 left!

0

5

Echo V000000020

GEAR SET

$61.99

$

In Stock, only 3 left!

0

6

Echo 90081000629

BEARING, BALL 629

$15.99

$

In Stock, only 2 left!

0

7

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 6

0

8

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 6

0

9

Echo 90085506900

BEARING, BALL 6900

$18.99

$

In Stock, Qty 5

0

10

Echo 90085806900

BEARING, BALL 6900Z

$22.99

$

In Stock, Qty 6

0

11

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

12

Echo 90070200022

RING, SNAP Ø22

$1.99

$

In Stock, Qty 5

0

13

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

15

Echo C535000320

PLATE, ADAPTOR - UPPER

$9.99

$

In Stock, only 2 left!

0
