SRM-2620 T - Echo String Trimmer (SN: T87214001001 - T87214999999) Fuel System Parts Diagram

String Trimmer

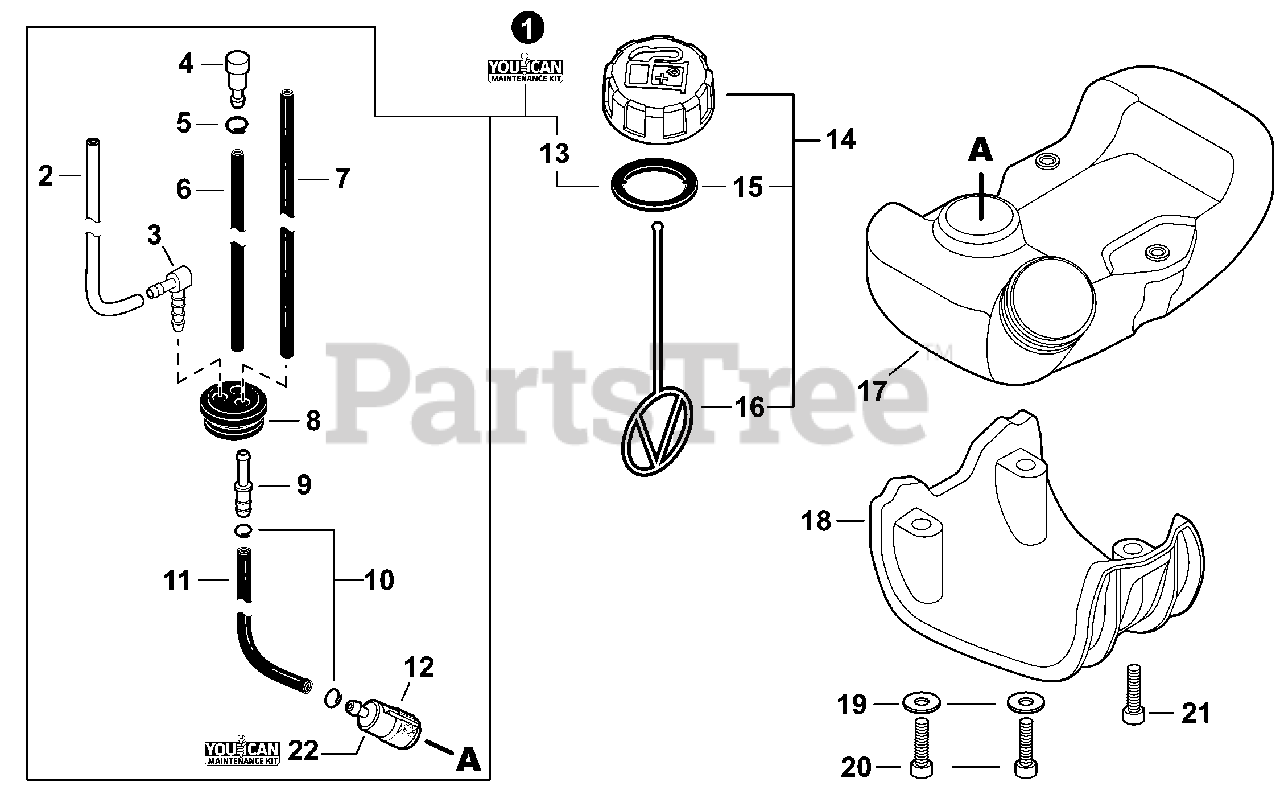

Fuel System Parts Diagram

  • Title

1

Echo 90182Y

FUEL SYSTEM KIT - YOUCAN™

Note: Includes ITEMS 2-13

$35.99

$

In Stock, Qty 11

0

2

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

3

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

4

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

5

Echo V490001230

CLIP Ø6.5MM

$0.99

$

In Stock, Qty 20+

0

6

Echo 13201006530

PIPE, FUEL 3×6×85
(Superseded to 13201006531)

$2.49

$

In Stock, only 3 left!

0

7

Echo V471004060

PIPE, FUEL 3×5×83 BLACK
(Superseded to V471005650)

$3.49

$

In Stock, Qty 20+

0

8

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

9

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

10

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 15

0

11

Echo V471003650

PIPE, FUEL - 3×5×125 - BLACK
(Superseded to V471003651)

$1.49

$

In Stock, Qty 5

0

12

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

14

Echo P021040430

CAP ASSY, FUEL

Note: Includes ITEMS 15-16

$5.99

$

In Stock, Qty 20+

0

15

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

16

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

17

Echo A350002340

TANK, FUEL
(Superseded to A350002341)

$35.99

$

In Stock, only 1 left!

0

18

Echo A175000040

GUARD, FUEL TANK

$7.99

$

In Stock, only 1 left!

0

19

Echo 90060200005

WASHER 5.3×10×1
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

20

Echo V805000170

BOLT, TORX 5×25

$0.99

$

Usually ships in 2-4 days

0

21

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

22

Echo 90181Y

TUNE-UP KIT - YOUCAN™

$41.99

$

In Stock, only 2 left!

0
