SRM-2610 - Echo String Trimmer Handles, Throttle, Shaft Asy Parts Diagram

String Trimmer

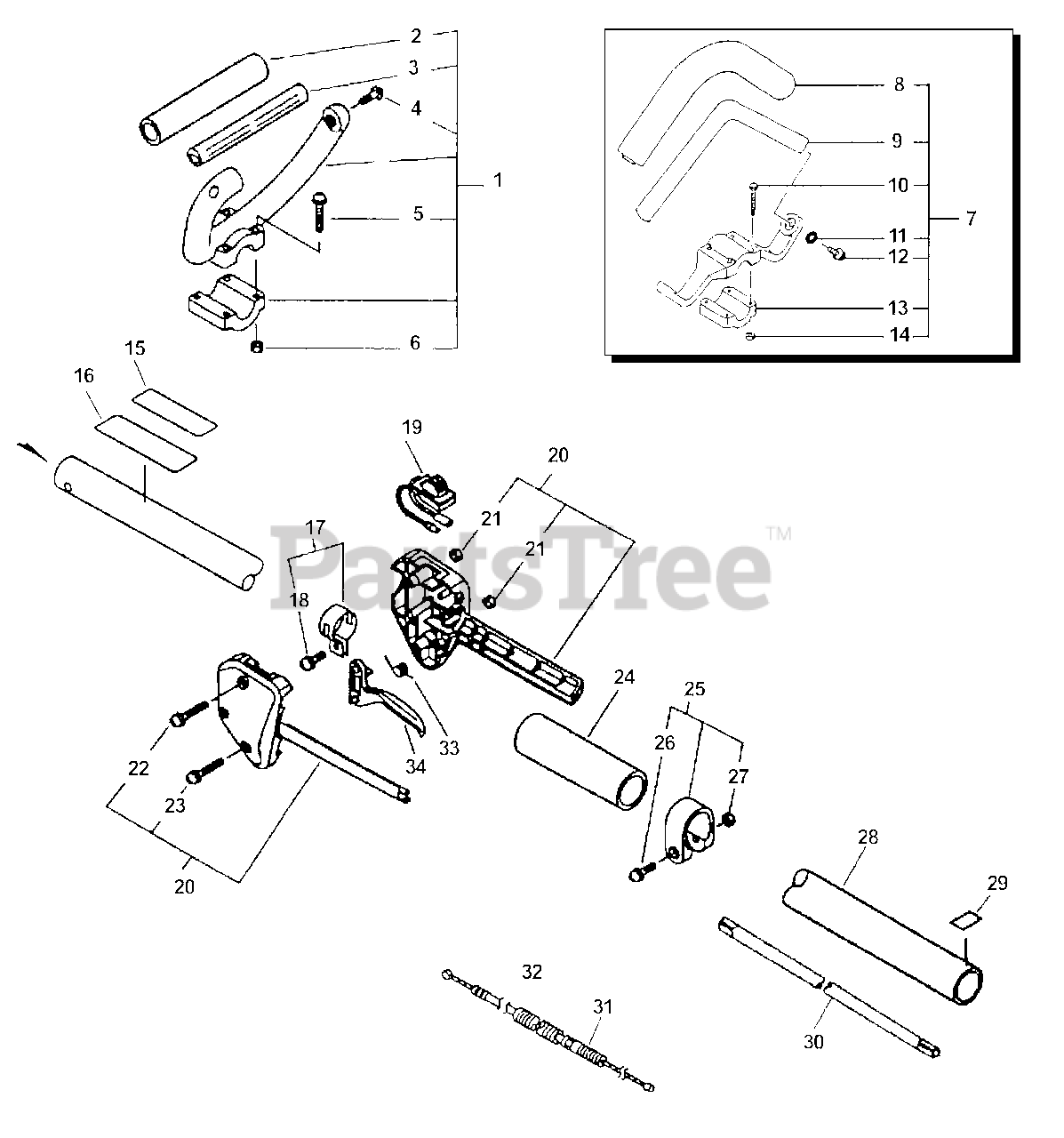

Handles, Throttle, Shaft Asy Parts Diagram

  • Title

1

Echo 35120152130

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 2 - 6

$65.99

$

In Stock, only 1 left!

0

2

Echo 35121351730

GRIP, HANDLE

$8.49

$

In Stock, Qty 6

0

3

Echo 35121051730

HANDLE

$4.49

$

Usually ships in 2-4 days

0

4

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

5

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

6

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo P021000021

HANDLE ASSY - FRONT
(Superseded to P021012390)

Note: INCLUDES ITEMS 8 - 14

$13.99

$

In Stock, Qty 10

0

8

Echo 35121666230

GRIP, HANDLE

$4.49

$

In Stock, Qty 17

0

9

Echo 35120566230

HANDLE - FRONT

$4.49

$

Usually ships in 2-4 days

0

10

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

11

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 88995021060

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

13

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

$1.99

$

In Stock, only 1 left!

0

14

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 89016054130

LABEL - CAUTION

$1.49

$

In Stock, only 1 left!

0

15

Echo 89031749030

LABEL - CAUTION
(Superseded to Discontinued)

Note: FOR CANADIAN MODELS

$

$

Not available

16

Echo 89022809560

LABEL - CAUTION -- SPANISH

$0.99

$

In Stock, only 2 left!

0

17

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 18

$9.49

$

In Stock, only 1 left!

0

18

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

19

Echo 16340052430

IGNITION SWITCH ASSY
(Superseded to A440000290)

$12.99

$

Usually ships in 2-4 days

0

20

Echo 17800352130

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 21 - 23

$4.99

$

In Stock, only 1 left!

0

21

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

22

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

23

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

24

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 2 left!

0

25

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 26 & 27

$9.99

$

In Stock, only 1 left!

0

26

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

27

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

28

Echo 61020656030

MAIN PIPE ASSY
(Superseded to 61020656031)

$116.99

$

Usually ships in 2-4 days

0

29

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

30

Echo 61001156030

DRIVESHAFT
(Superseded to C504000050)

$45.99

$

In Stock, only 2 left!

0

31

Echo 17800156530

CABLE, THROTTLE

$19.99

$

In Stock, Qty 17

0

32

Echo 17812706960

TUBE

$2.49

$

In Stock, only 3 left!

0

33

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

34

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0
