SRM-260 S - Echo String Trimmer (SN: 04001001 - 04999999) Intake Parts Diagram

String Trimmer

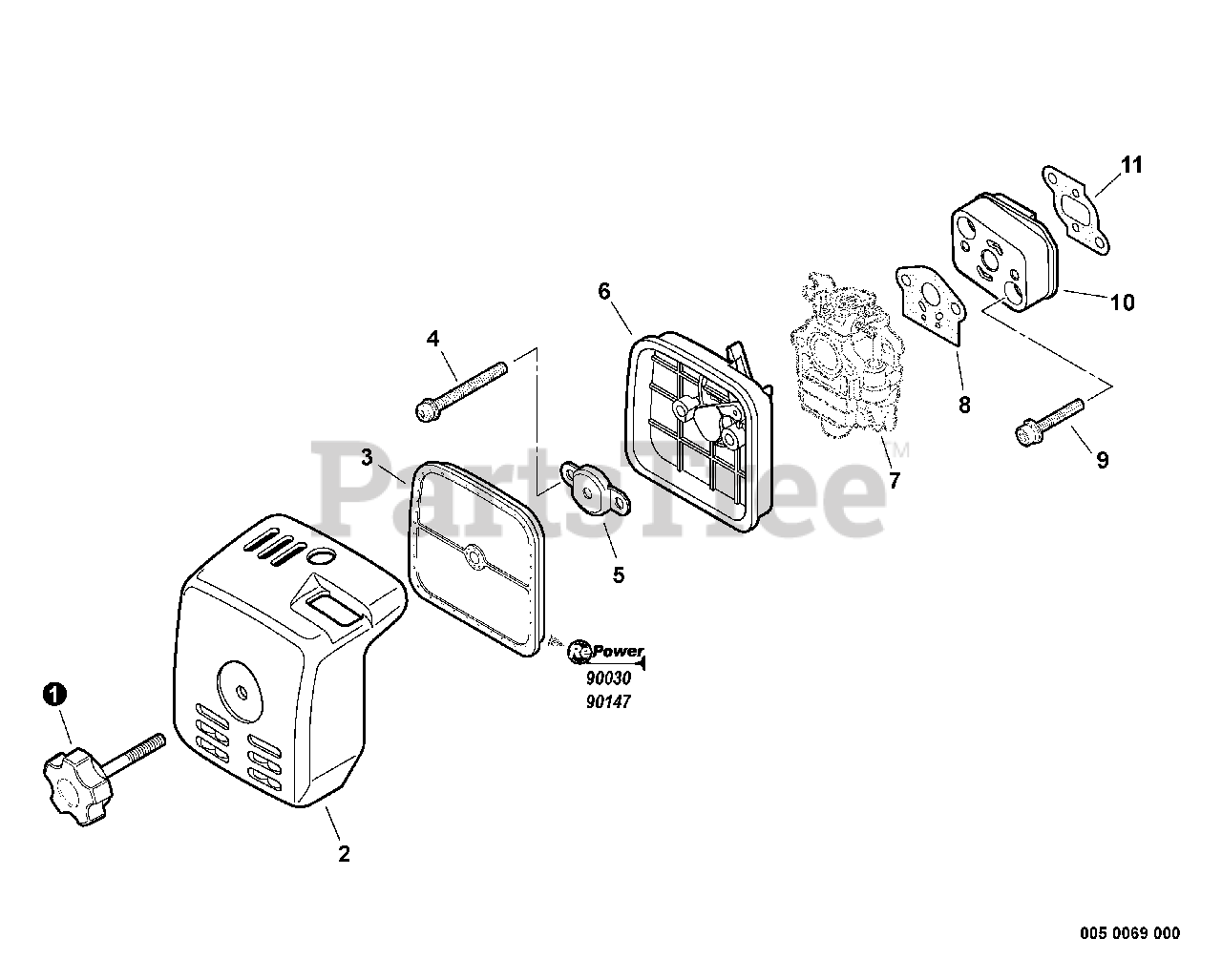

Intake Parts Diagram

  • Title

1

Echo 13040652131

THUMBSCREW

$5.49

$

In Stock, Qty 20+

0

2

Echo 13031357731

COVER, AIR FILTER
(Superseded to 13031357732)

$8.49

$

In Stock, Qty 20+

0

3

Echo 13031051830

FILTER, AIR - HEAVY DUTY

Note: Included In RePower Kit

$7.49

$

In Stock, Qty 20+

0

4

Echo 90024205060

SCREW - 5X60

$0.99

$

In Stock, Qty 12

0

5

Echo 12901157731

PLATE, PREVENT

$5.49

$

In Stock, Qty 14

0

6

Echo P021001430

CASE, AIR FILTER

$7.99

$

In Stock, Qty 15

0

7

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

8

Echo 13001013410

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

9

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

10

Echo 13001756431

INSULATOR, INTAKE

$12.99

$

In Stock, only 1 left!

0

11

Echo 13001055930

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 17

0

12

Echo 90030

RePower FILTER KIT
(Superseded to 90153)

$18.99

$

In Stock, Qty 12

0

13

Echo 90147

RePower TUNE-UP KIT
(Superseded to Discontinued)

$

$

Not available
