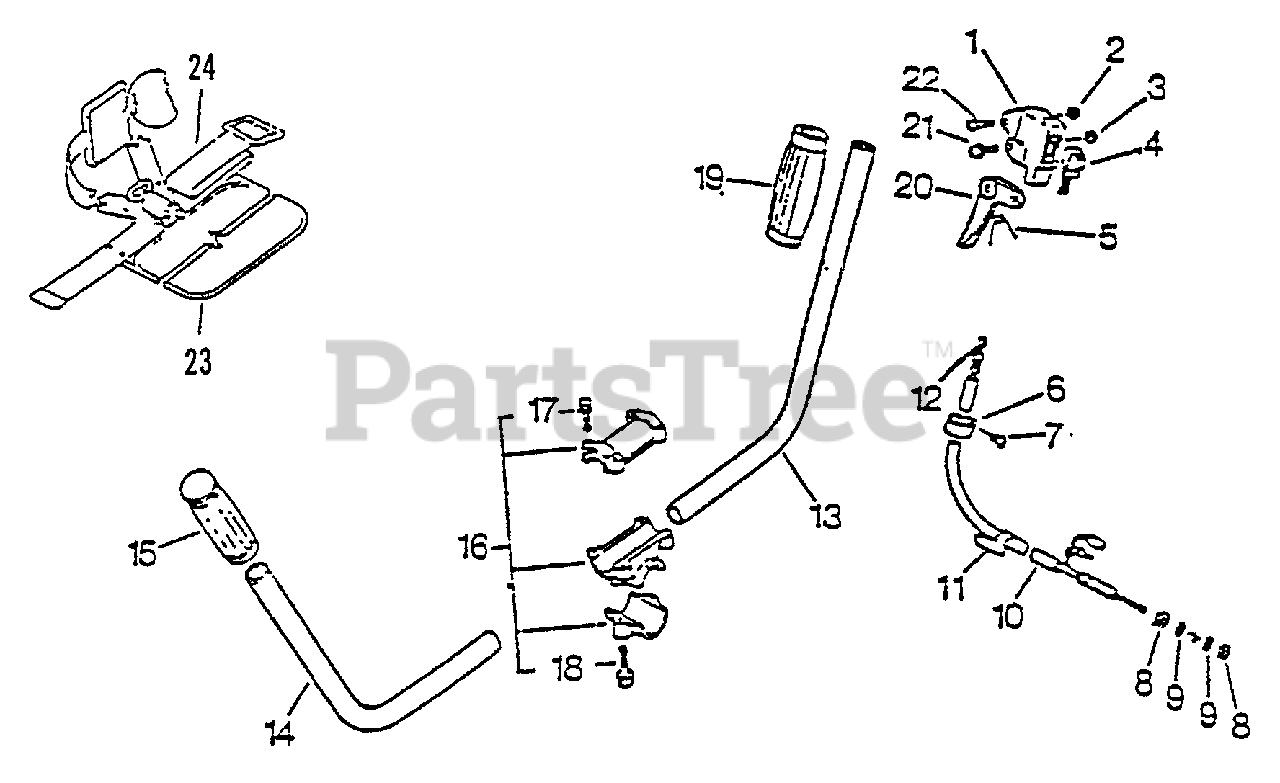

SRM-2510 - Echo String Trimmer (SN: 079352 - 098240) Handles, Ignition Switch, Shoulder Strap, Throttle Parts Diagram

String Trimmer

Handles, Ignition Switch, Shoulder Strap, Throttle Parts Diagram

  • Title
1

Echo 17802441830

BRACKET, THROTTLE
(Superseded to 17802451830)

$7.49

$

In Stock, only 1 left!

0

2

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

3

$0.99

$

In Stock, Qty 20+

0

4

Echo 16340041030

IGNITION SWITCH ASSY

$11.99

$

Usually ships in 2-4 days

0

5

Echo 17804305230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 7

0

$4.99

$

Usually ships in 2-4 days

0

7

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

8

Echo 17802105530

LOCKNUT - 6

$2.99

$

Usually ships in 2-4 days

0

9

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

10

Echo 17812741030

TUBE - VINYL

$2.49

$

Usually ships in 2-4 days

0

11

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17800209131

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

$27.99

$

Usually ships in 2-4 days

0

14

Echo 35121005530

HANDLE, FRONT - LEFT

$

$

Not available

15

Echo 35131102330

GRIP, HANDLE - LEFT

$6.49

$

In Stock, only 3 left!

0

16

Echo 35130109230

HANDLE BRACKET KIT
(Superseded to P021000460)

Note: Includes ITEMS 17-18

$28.99

$

Usually ships in 2-4 days

0

17

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

18

Echo 90010006030

BOLT - 6X30
(Superseded to Discontinued)

$

$

Not available

19

Echo 35131522130

GRIP, HANDLE

$10.99

$

Usually ships in 2-4 days

0

20

Echo 17801006460

TRIGGER, THROTTLE

$4.99

$

In Stock, only 4 left!

0

21

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, only 1 left!

0

22

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

23

Echo C652000000

CUSHION

$24.99

$

Usually ships in 2-4 days

0

24

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$21.99

$

In Stock, only 1 left!

0
