SRM-2510 - Echo String Trimmer (SN: 061969 - 079351) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

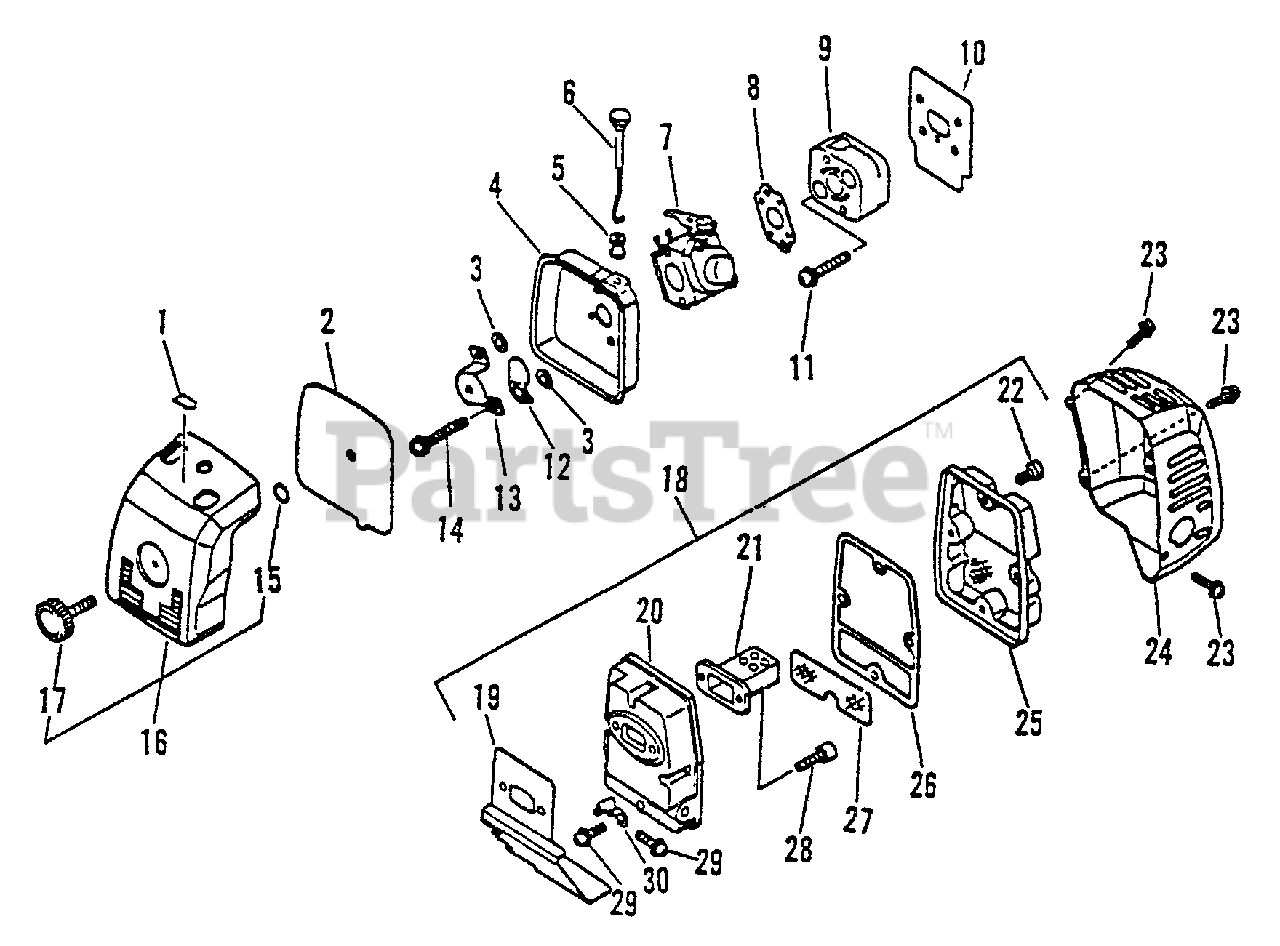

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title
1

Echo 89012151730

LABEL - CHOKE
(Superseded to 89012152130)

$

$

Not available

2

Echo 13031051730

FILTER, AIR

$8.99

$

In Stock, Qty 11

0

3

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

5

$1.99

$

In Stock, Qty 8

0

6

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

7

Echo 12520051230

CARBURETOR C1U-K20
(Superseded to 12520051231)

$

$

Not available

8

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

9

Echo 13000751230

INSULATOR, INTAKE
(Superseded to 13000751231)

$9.49

$

In Stock, only 1 left!

0

10

Echo 13001022331

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

12

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

13

Echo 12901151730

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

14

Echo 90023805050

SCREW - 5X50

$0.99

$

In Stock, Qty 9

0

15

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 9

0

16

Echo 13030251730

AIR FILTER COVER ASSY
(Superseded to 13030251731)

Note: Includes ITEMS 15-17

$15.99

$

In Stock, Qty 5

0

17

Echo 13040616330

THUMBSCREW
(Superseded to 13040616331)

$5.49

$

In Stock, only 1 left!

0

18

Echo 14580051230

MUFFLER ASSY

Note: Includes Items 19 - 22, 25 - 30

$90.99

$

Usually ships in 2-4 days

0

19

Echo 14551051230

GASKET, EXHAUST

$7.99

$

Usually ships in 2-4 days

0

20

$88.99

$

Usually ships in 2-4 days

0

21

Echo 14585951230

BAFFLE, MUFFLER

$5.99

$

Usually ships in 2-4 days

0

22

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

23

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

24

Echo 14562151730

COVER, MUFFLER
(Superseded to 14562151731)

$

$

Not available

25

Echo 14586151230

LID, MUFFLER

$44.99

$

Usually ships in 2-4 days

0

26

Echo 14586651230

GASKET, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

27

Echo 14586251030

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

28

Echo 90010505018

SCREW - 5X18

$1.49

$

In Stock, only 2 left!

0

29

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

30

Echo 14571151230

BRACKET, MUFFLER

$6.99

$

Usually ships in 2-4 days

0
