SRM-2510 - Echo String Trimmer (SN: 061969 - 079351) Clutch, Ignition, Starter Parts Diagram

String Trimmer

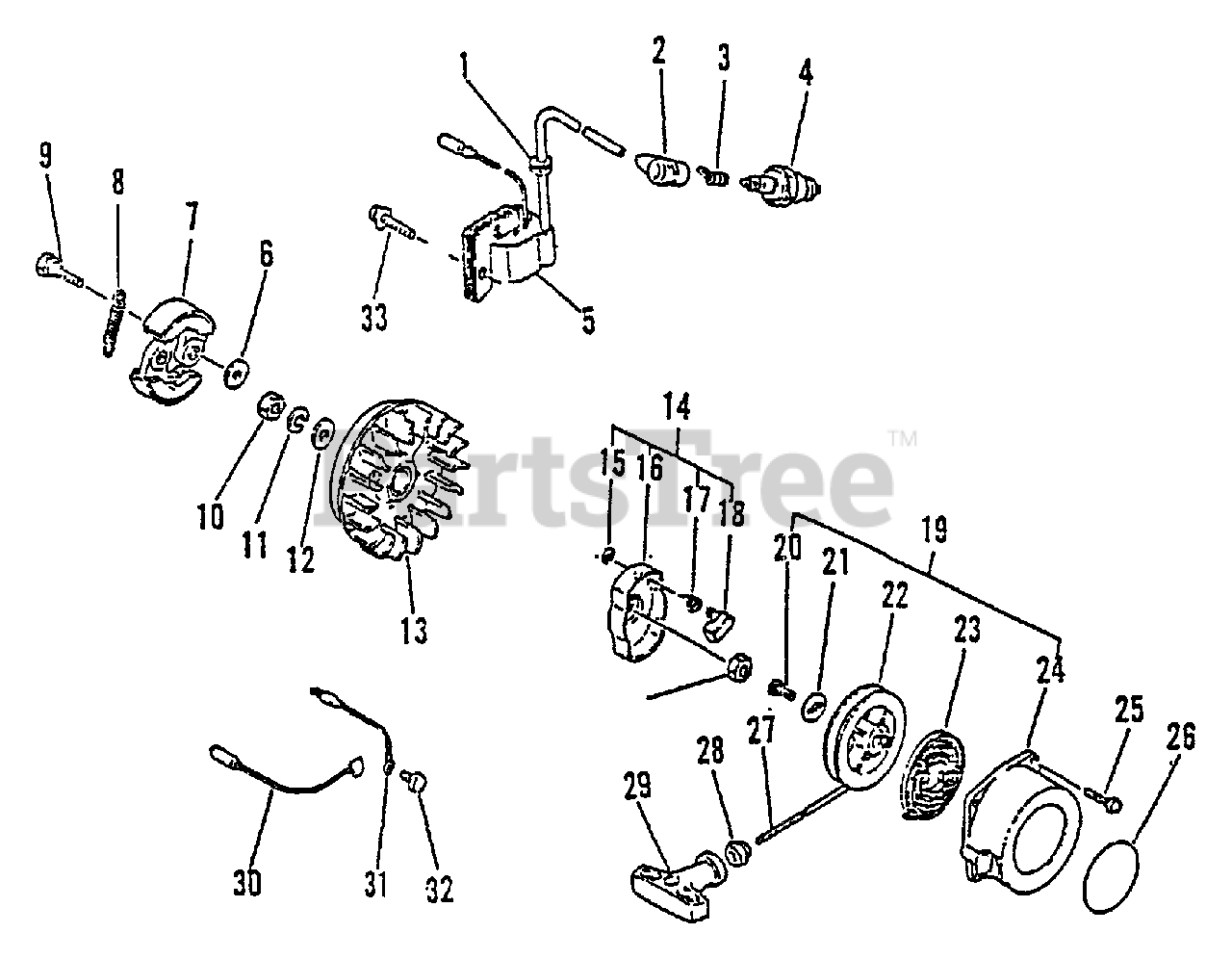

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 3 left!

0

2

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 8

0

3

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 18

0

4

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

5

Echo 15660140930

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

6

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 19

0

7

Echo 17500905532

SHOE, CLUTCH
(Superseded to 17500955930)

$21.99

$

In Stock, only 2 left!

0

8

Echo 17501805535

SPRING, CLUTCH

$1.99

$

In Stock, only 1 left!

0

9

Echo 17504622332

BOLT, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

10

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

11

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

13

Echo 15680122330

FLYWHEEL

$94.99

$

Usually ships in 2-4 days

0

14

Echo A052000030

STARTER PAWL ASSY

Note: Includes ITEMS 15-18

$12.99

$

In Stock, Qty 20+

0

15

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

16

Echo 17721040630

CATCHER, PAWL
(Superseded to 17720240630)

$12.99

$

In Stock, Qty 20+

0

17

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

18

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

19

Echo 17720049330

STARTER ASSY - GRAY
(Superseded to Discontinued)

Note: Includes Items 20-24, 27 - 29

$

$

Not available

20

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

21

Echo 17721440630

WASHER
(Superseded to P022022280)

$0.99

$

In Stock, Qty 6

0

22

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

23

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 12

0

24

Echo 17723249330

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

25

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

26

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0

27

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 7

0

28

Echo 17722705530

GUIDE, ROPE

$3.99

$

In Stock, Qty 10

0

29

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

30

Echo 16202227230

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

31

Echo 16201427230

LEAD - GROUND

$2.99

$

In Stock, Qty 5

0

32

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

33

Echo 90023805028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0
