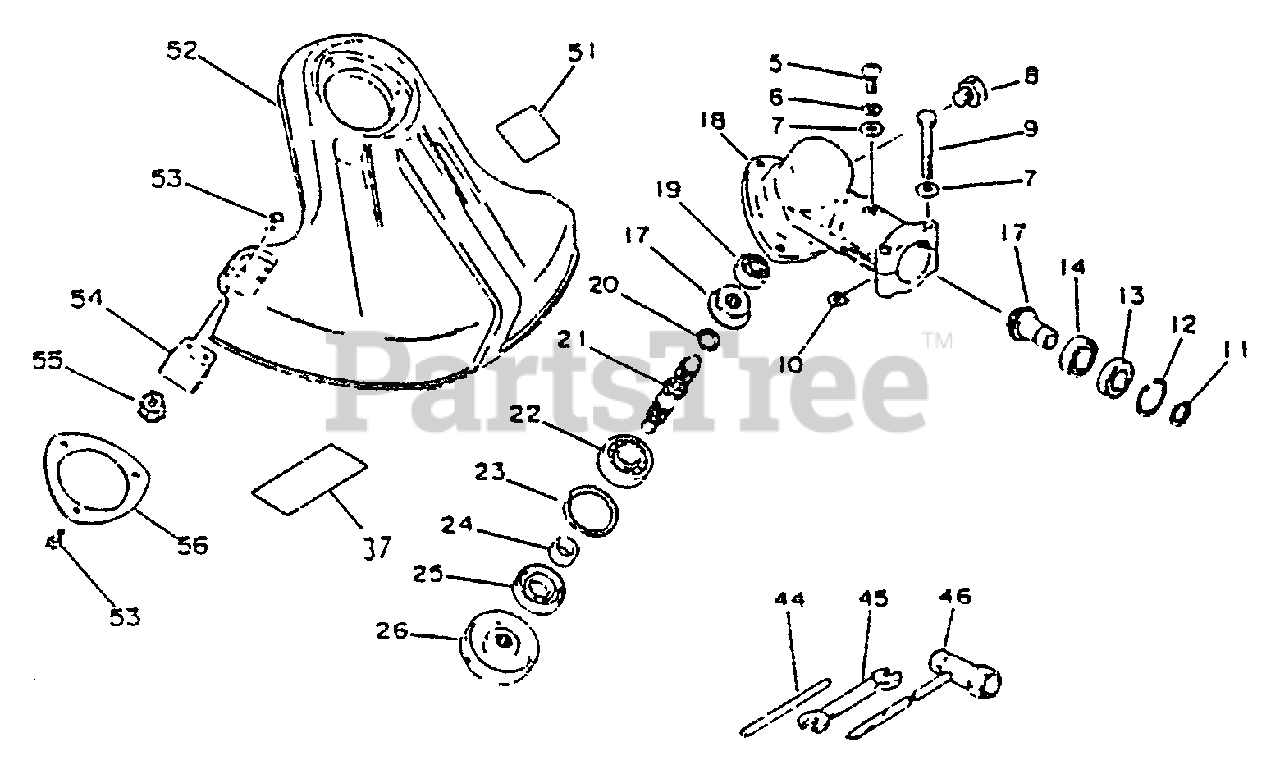

SRM-2502 - Echo String Trimmer (SN: 0010201 - 0025000) Gear Case, Shield, Tools Parts Diagram

String Trimmer

Gear Case, Shield, Tools Parts Diagram

  • Title

Echo 61040247732

GEAR CASE ASSY
(Superseded to 61040247733)

$98.99

$

Usually ships in 2-4 days

0

5

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

6

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

7

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

9

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 10

0

11

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 6

0

12

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

13

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

14

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

17

Echo 61030044830

GEAR SET - BEVEL

$88.99

$

Usually ships in 2-4 days

0

18

Echo 90070227430

CASE, GEAR

$

$

Currently unavailable

19

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 11

0

20

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

21

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

22

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

23

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

24

$3.99

$

In Stock, Qty 5

0

25

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

26

Echo 61031347730

ADAPTOR, BLADE - UPPER
(Superseded to 61031347731)

$12.99

$

In Stock, Qty 18

0

37

Echo 89013844330

LABEL - ECHO
(Superseded to 89011848730)

$0.99

$

In Stock, Qty 8

0

44

Echo 89751801131

LOCKING TOOL

$

$

Not available

45

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

46

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

51

Echo 89035240530

LABEL - CAUTION

$

$

Currently unavailable

52

Echo 69900440930

SHIELD, DEBRIS
(Superseded to 69900440931)

$25.99

$

In Stock, only 4 left!

0

53

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

54

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

55

$0.99

$

In Stock, Qty 20+

0

56

Echo C552000110

PLATE, SHIELD
(Superseded to C552000240)

$2.49

$

In Stock, Qty 13

0

51

Echo 89016844830

LABEL - CAUTION

$3.49

$

Usually ships in 2-4 days

0
