SRM-2502 - Echo String Trimmer (SN: 0010201 - 0025000) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

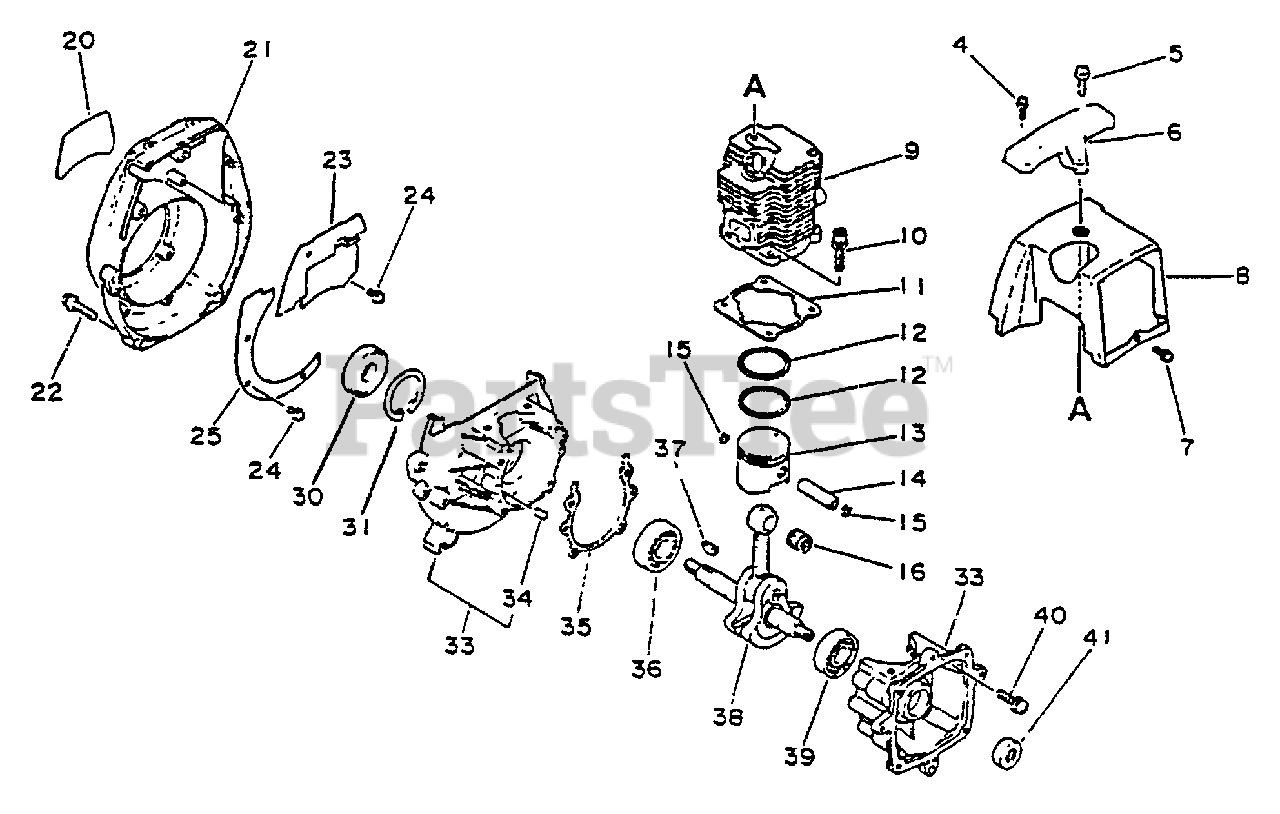

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

4

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

5

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

6

Echo 15990540930

GUARD - TOP

$12.99

$

Usually ships in 2-4 days

0

7

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 14

0

8

Echo 10151440930

COVER, ENGINE - ORANGE
(Superseded to 10151449330)

$11.99

$

Usually ships in 2-4 days

0

9

Echo 10101122330

CYLINDER

$201.99

$

Usually ships in 2-4 days

0

10

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

11

------------------

GASKET, CYLINDER

$

$

Not available

12

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

13

Echo 10001022330

PISTON
(Superseded to 10000022330)

$

$

Not available

14

Echo 10001322330

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

15

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

16

Echo 10001222330

BEARING, NEEDLE
(Superseded to V553000040)

$9.49

$

Usually ships in 2-4 days

0

20

Echo 89011547730

LABEL - MODEL
(Superseded to 89011549330)

$4.99

$

Usually ships in 2-4 days

0

21

Echo 10151440930

COVER, ENGINE - ORANGE
(Superseded to 10151449330)

$11.99

$

Usually ships in 2-4 days

0

22

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

23

Echo 10153440930

SHIELD, FAN

$8.49

$

Usually ships in 2-4 days

0

24

Echo 90023504005

SCREW - 4X5

$

$

Currently unavailable

25

Echo 10154140930

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

30

Echo 10021203930

SEAL, OIL

$5.49

$

In Stock, only 2 left!

0

31

Echo 90020200032

RING, RETAINING - 32

$

$

Currently unavailable

33

Echo 10020022331

CRANKCASE KIT

$160.99

$

Usually ships in 2-4 days

0

34

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

35

------------------

GASKET, CRANKCASE

$

$

Not available

36

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

37

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

38

Echo 10010022430

CRANKSHAFT ASSY
(Superseded to 10010027830)

$258.99

$

Usually ships in 2-4 days

0

39

Echo 90080036001

BEARING, BALL - 6001C3

$9.49

$

In Stock, Qty 6

0

40

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

41

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

Echo 88900027230

GASKET KIT
(Superseded to 88900027231)

$9.99

$

Usually ships in 2-4 days

0
