SRM-2501 S - Echo String Trimmer (SN: 098241 - 999999) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

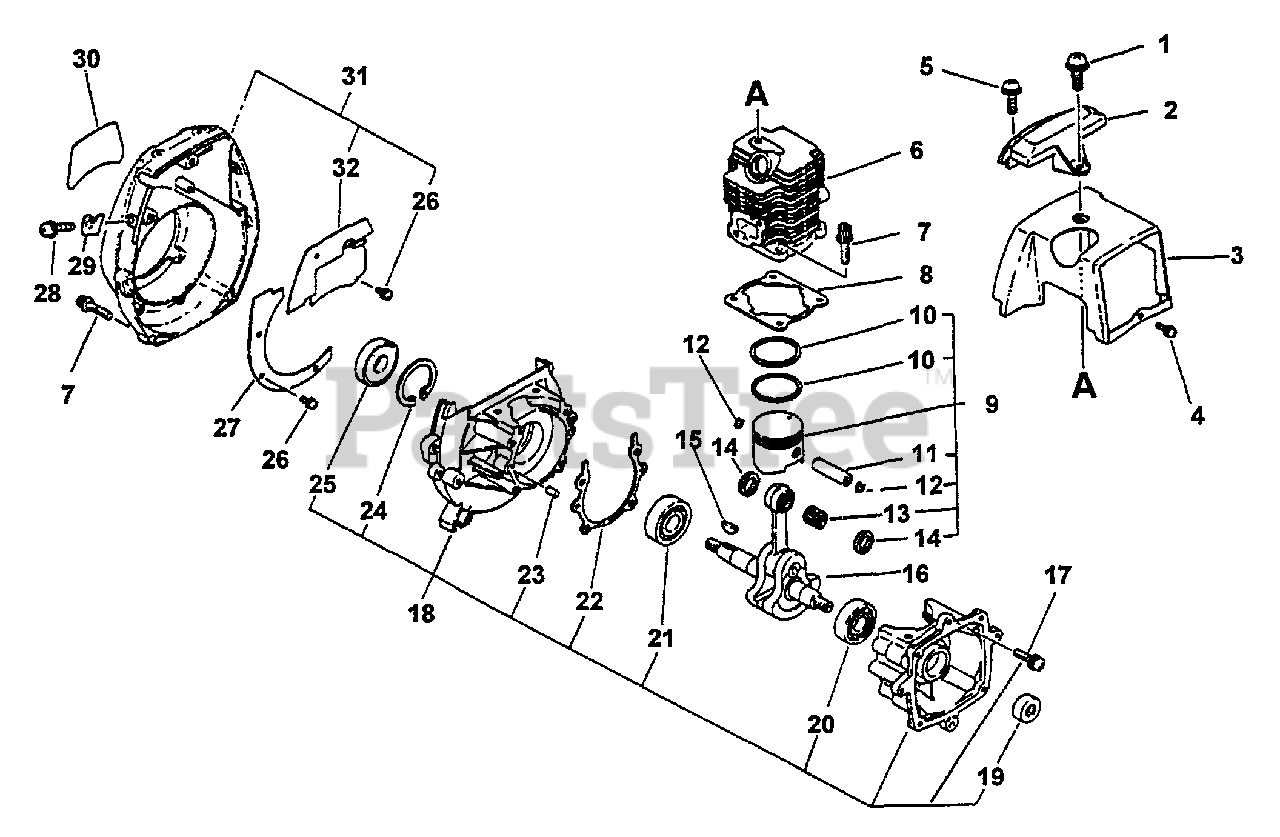

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

2

Echo 15990540930

GUARD - TOP

$12.99

$

Usually ships in 2-4 days

0

3

Echo 10151449330

COVER, ENGINE

$11.99

$

Usually ships in 2-4 days

0

4

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

5

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

6

Echo 10101122330

CYLINDER

$201.99

$

Usually ships in 2-4 days

0

7

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

8

Echo 10101022331

GASKET, CYLINDER
(Superseded to Discontinued)

Note: Use Gasket Kit 88900051230

$

$

Not available

9

Echo 10000045430

PISTON KIT
(Superseded to 10000045431)

Note: Includes ITEMS 10-14

$64.99

$

In Stock, only 1 left!

0

10

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

11

Echo 10001322330

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

12

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

13

Echo 10001222330

BEARING, NEEDLE
(Superseded to V553000040)

$9.49

$

Usually ships in 2-4 days

0

14

Echo 10001445430

SPACER, PISTON
(Superseded to Discontinued)

$

$

Not available

15

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

16

Echo 10010044830

CRANKSHAFT ASSY
(Superseded to 10010044832)

$

$

Not available

17

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

18

Echo 10020422330

CRANKCASE KIT

Note: Includes items 17, 19 - 25

$390.99

$

Usually ships in 2-4 days

0

19

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

20

Echo 90080036001

BEARING, BALL - 6001C3

$9.49

$

In Stock, only 3 left!

0

21

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

22

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit 88900051230

$

$

Not available

23

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

24

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

25

Echo 10021203930

SEAL, OIL

$5.49

$

In Stock, only 2 left!

0

26

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

27

Echo 10154140930

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

28

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

29

Echo 17812151230

HOLDER, CABLE

$3.99

$

Usually ships in 2-4 days

0

30

Echo 89013549330

LABEL - MODEL SRM-2501S
(Superseded to Discontinued)

$

$

Not available

31

Echo 10150351730

FAN CASE ASSY

Note: Includes items 26 - 29 & 32

$90.99

$

Usually ships in 2-4 days

0

32

Echo 10153440930

SHIELD, FAN

$8.49

$

Usually ships in 2-4 days

0

Echo SB1015

SHORT BLOCK -- SB1015

$250.99

$

Usually ships in 2-4 days

0

Echo 88900051230

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

Echo 10101022331

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001022331

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo 14586651230

GASKET, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

Echo 14551051230

GASKET, EXHAUST

$7.99

$

Usually ships in 2-4 days

0
