SRM-2501 S - Echo String Trimmer (SN: 098241 - 999999) Clutch, Exhaust, Ignition, Intake, Starter Parts Diagram

String Trimmer

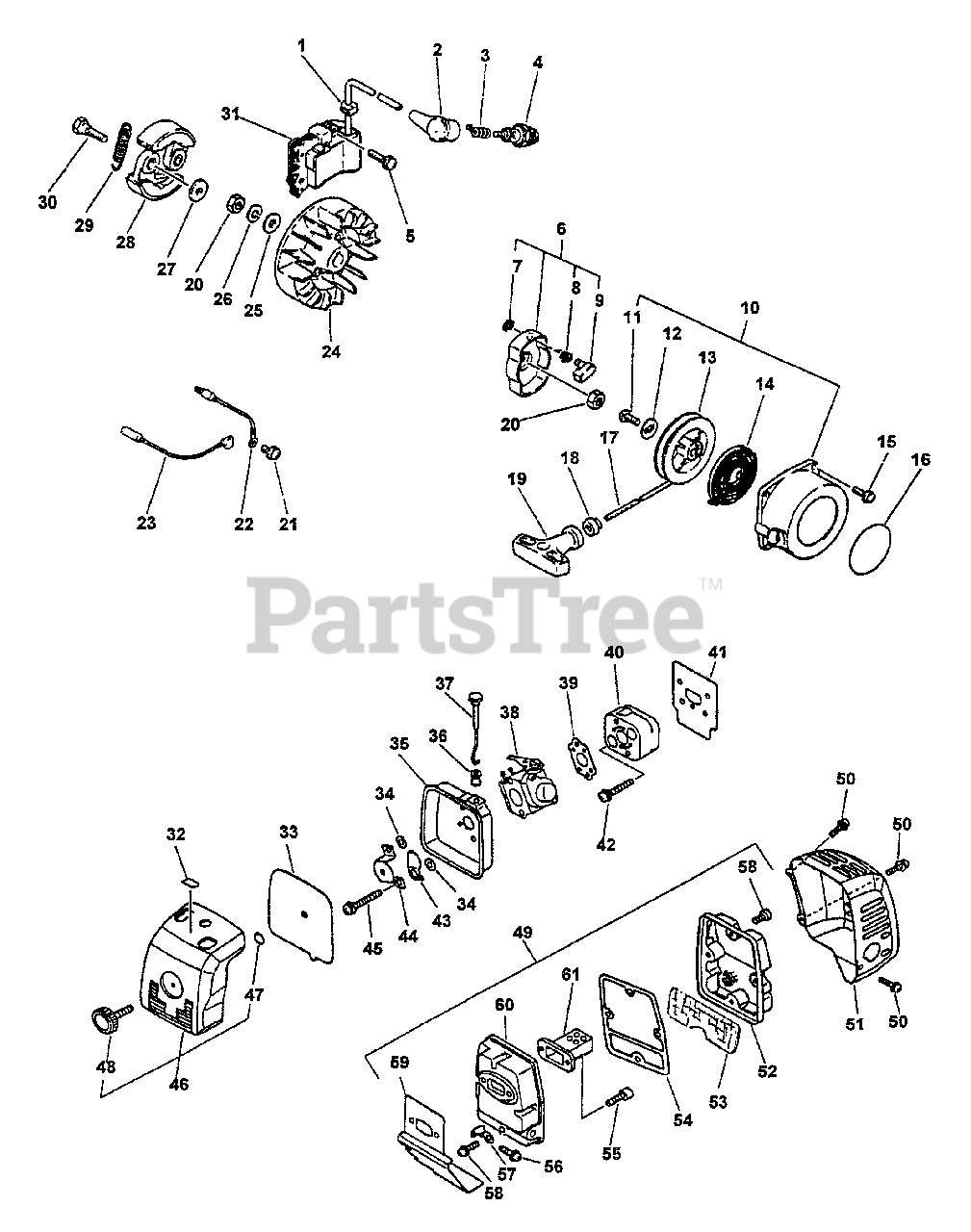

Clutch, Exhaust, Ignition, Intake, Starter Parts Diagram

  • Title

1

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

2

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 6

0

3

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 13

0

4

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

5

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

6

Echo A052000030

STARTER PAWL ASSY

Note: Includes items 7 - 9

$12.99

$

In Stock, Qty 20+

0

7

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

8

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

9

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

10

Echo 17720049330

STARTER ASSY - GRAY
(Superseded to Discontinued)

Note: Includes items 11 - 14, 17 - 19

$

$

Not available

11

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

12

Echo 17721440630

WASHER
(Superseded to P022022280)

$0.99

$

In Stock, Qty 6

0

13

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

14

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 12

0

15

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

16

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0

17

Echo 17722640630

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

Usually ships in 2-4 days

0

18

Echo 17722705530

GUIDE, ROPE

$3.99

$

In Stock, Qty 10

0

19

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

20

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

21

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

22

Echo 16201427230

LEAD - GROUND

$2.99

$

In Stock, Qty 5

0

23

Echo 16202227230

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

24

Echo 15680122330

FLYWHEEL

$94.99

$

Usually ships in 2-4 days

0

25

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

26

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

27

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 19

0

28

Echo 17500905532

SHOE, CLUTCH
(Superseded to 17500955930)

$21.99

$

In Stock, only 2 left!

0

29

Echo 17501805535

SPRING, CLUTCH

$1.99

$

In Stock, only 1 left!

0

30

Echo 17504622332

BOLT, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

31

Echo 15660140930

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

32

Echo 89012152130

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

33

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.49

$

In Stock, Qty 20+

0

34

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

35

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

36

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 8

0

37

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

38

Echo 12520051231

CARBURETOR C1U-K20B
(Superseded to 12520051232)

$

$

Not available

39

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

40

Echo 13000751231

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

41

Echo 13001022331

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

42

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

43

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

44

Echo 12901151730

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

45

Echo 90023805050

SCREW - 5X50

$0.99

$

In Stock, Qty 9

0

46

Echo 13030251730

AIR FILTER COVER ASSY
(Superseded to 13030251731)

Note: Includes items 47 & 48

$15.99

$

In Stock, Qty 5

0

47

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 10

0

48

Echo 13040616331

THUMBSCREW

$5.49

$

In Stock, only 1 left!

0

49

Echo 14580051230

MUFFLER ASSY

Note: Includes items 52 - 61

$90.99

$

Usually ships in 2-4 days

0

50

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

51

Echo 14562151731

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

52

Echo 14586151230

LID, MUFFLER

$44.99

$

Usually ships in 2-4 days

0

53

Echo 14586251030

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

54

Echo 14586651230

GASKET, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

55

Echo 90010505018

SCREW - 5X18

$1.49

$

In Stock, only 2 left!

0

56

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

57

Echo 14571151230

BRACKET, MUFFLER

$6.99

$

Usually ships in 2-4 days

0

58

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

59

Echo 14551051230

GASKET, EXHAUST

$7.99

$

Usually ships in 2-4 days

0

60

Echo 14581051230

MUFFLER

$88.99

$

Usually ships in 2-4 days

0

61

Echo 14585951230

BAFFLE, MUFFLER

$5.99

$

Usually ships in 2-4 days

0
