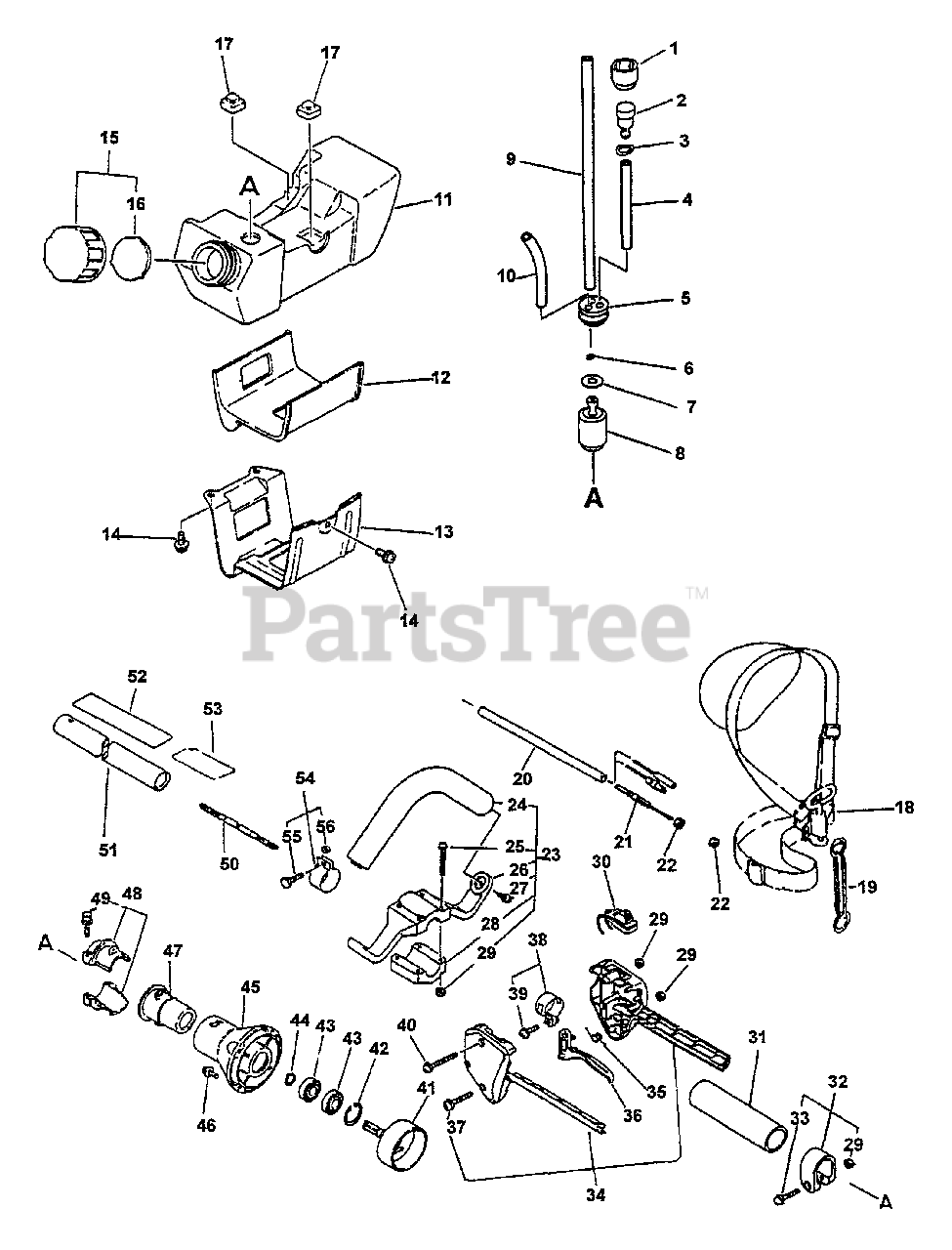

SRM-2501 S - Echo String Trimmer (SN: 098241 - 999999) Clutch, Driveshaft, Fuel System, Strap, Throttle Control Parts Diagram

String Trimmer

Clutch, Driveshaft, Fuel System, Strap, Throttle Control Parts Diagram

  • Title

1

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 10

0

2

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0

3

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

4

Echo 13201051230

PIPE - 3X6X70 -- BLACK

Note: RePower BULK OPTION: 90015

$4.99

$

In Stock, Qty 5

0

5

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

6

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 13120021330

FILTER, FUEL
(Superseded to 13120002830)

$8.99

$

In Stock, Qty 14

0

9

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

10

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

11

Echo 13101041930

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

12

Echo 13192440930

CUSHION
(Superseded to Discontinued)

$

$

Not available

13

Echo 30511040930

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

14

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

15

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 16

$4.49

$

In Stock, only 1 left!

0

16

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 19

0

17

Echo 13192522330

CUSHION
(Superseded to Discontinued)

$

$

Not available

18

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$21.99

$

In Stock, only 1 left!

0

19

Echo 30130524330

HOOK

$10.99

$

Usually ships in 2-4 days

0

20

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

21

Echo 17800151030

CABLE, THROTTLE

$17.99

$

In Stock, Qty 6

0

22

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 1 left!

0

23

Echo 35120107132

LOOP HANDLE ASSY
(Superseded to 35120107133)

Note: Includes items 24 - 29

$44.99

$

In Stock, only 1 left!

0

24

Echo 35120507130

HANDLE - FRONT
(Superseded to 35120507131)

$

$

Not available

25

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

26

Echo 35123207131

BRACKET, HANDLE - UPPER
(Superseded to P021013241)

$18.99

$

In Stock, only 1 left!

0

27

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

28

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

$1.99

$

In Stock, only 1 left!

0

29

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

30

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 13

0

31

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 2 left!

0

32

Echo 61027252130

CLAMP KIT

Note: Includes items 29 & 33

$9.99

$

In Stock, only 1 left!

0

33

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

34

Echo 17800352130

CONTROL HANDLE KIT

Note: Includes items 29, 37 & 40

$4.99

$

In Stock, only 1 left!

0

35

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

36

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

37

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

38

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 39

$9.49

$

In Stock, only 1 left!

0

39

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

40

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

41

Echo 17500540930

DRUM, CLUTCH

$56.99

$

Usually ships in 2-4 days

0

42

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

43

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 13

0

44

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

45

Echo 61022349230

CASE, CLUTCH - GRAY

$56.99

$

Usually ships in 2-4 days

0

46

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

47

Echo 61091027832

CUSHION

$7.99

$

In Stock, only 1 left!

0

48

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: Includes ITEM 49

$9.99

$

Usually ships in 2-4 days

0

49

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

50

Echo 61001125530

DRIVESHAFT

$45.99

$

Usually ships in 2-4 days

0

51

Echo 61020645430

PIPE, MAIN
(Superseded to Discontinued)

$

$

Not available

52

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$6.49

$

Usually ships in 2-4 days

0

53

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.49

$

Usually ships in 2-4 days

0

54

Echo 30120708930

CLAMP

$4.99

$

In Stock, only 2 left!

0

55

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

56

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

0
