SRM-2501 - Echo String Trimmer (SN: 079352 - 098240) Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

String Trimmer

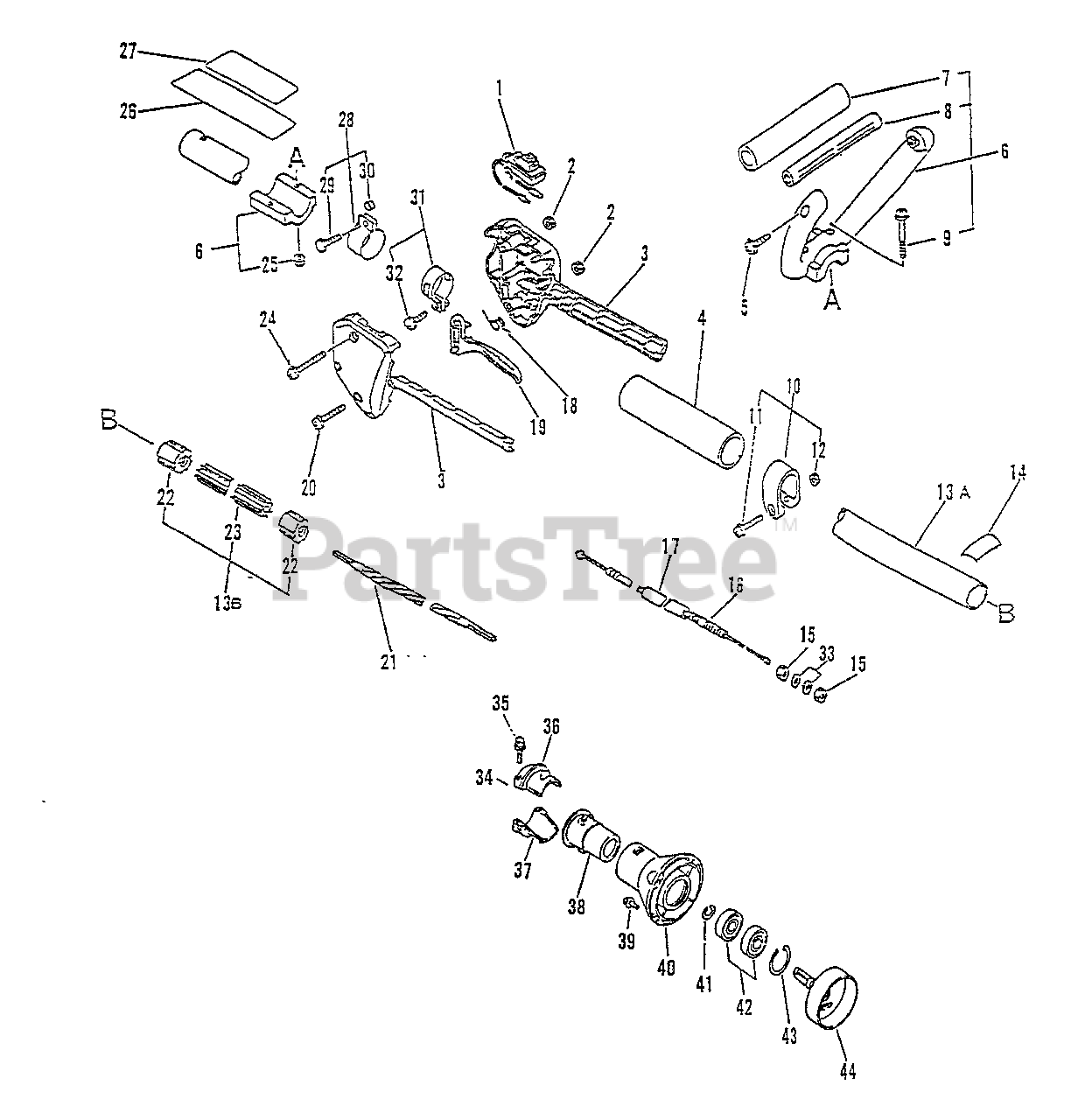

Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 14

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 17800352130

CONTROL HANDLE KIT

Note: Includes Items 2, 20 & 24

$4.99

$

In Stock, only 1 left!

0

4

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 2 left!

0

5

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

6

Echo 35120152130

LOOP HANDLE ASSY

Note: Includes Items 5, 7 - 9 & 25

$65.99

$

In Stock, only 1 left!

0

7

Echo 35121351730

GRIP, HANDLE

$8.49

$

In Stock, Qty 6

0

8

Echo 35121051730

HANDLE

$4.49

$

Usually ships in 2-4 days

0

9

Echo 90024206035

SCREW - 6X35

$1.49

$

Usually ships in 2-4 days

0

10

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 11-12

$9.99

$

In Stock, only 1 left!

0

11

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 61060944730

MAIN PIPE ASSY

Note: Includes Items 22 & 23

$51.99

$

Usually ships in 2-4 days

0

14

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

15

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

16

Echo 17800151030

CABLE, THROTTLE

$17.99

$

In Stock, Qty 6

0

17

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

18

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

19

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

20

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

21

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, only 3 left!

0

22

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

23

Echo C507000260

LINER - FLEXIBLE

$25.99

$

Usually ships in 2-4 days

0

24

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

25

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

26

Echo 89016044730

LABEL - CAUTION

$3.99

$

Usually ships in 2-4 days

0

27

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$6.49

$

Usually ships in 2-4 days

0

28

Echo 30120708930

CLAMP

Note: Includes Items 29 & 30

$4.99

$

In Stock, only 2 left!

0

29

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

30

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

0

31

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes Item 32

$9.49

$

In Stock, only 1 left!

0

32

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

33

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

34

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: Includes Items 35 - 37

$9.99

$

Usually ships in 2-4 days

0

35

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

36

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

37

Echo 61092327432

CLAMP, MAIN PIPE

$6.49

$

Usually ships in 2-4 days

0

38

Echo 61091027832

CUSHION

$7.99

$

In Stock, only 1 left!

0

39

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

40

Echo 61022349230

CASE, CLUTCH - GRAY

$56.99

$

Usually ships in 2-4 days

0

41

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

42

Echo 90080806001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 4 left!

0

43

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

44

Echo 17500544830

DRUM, CLUTCH
(Superseded to 17500551730)

$15.99

$

Usually ships in 2-4 days

0
