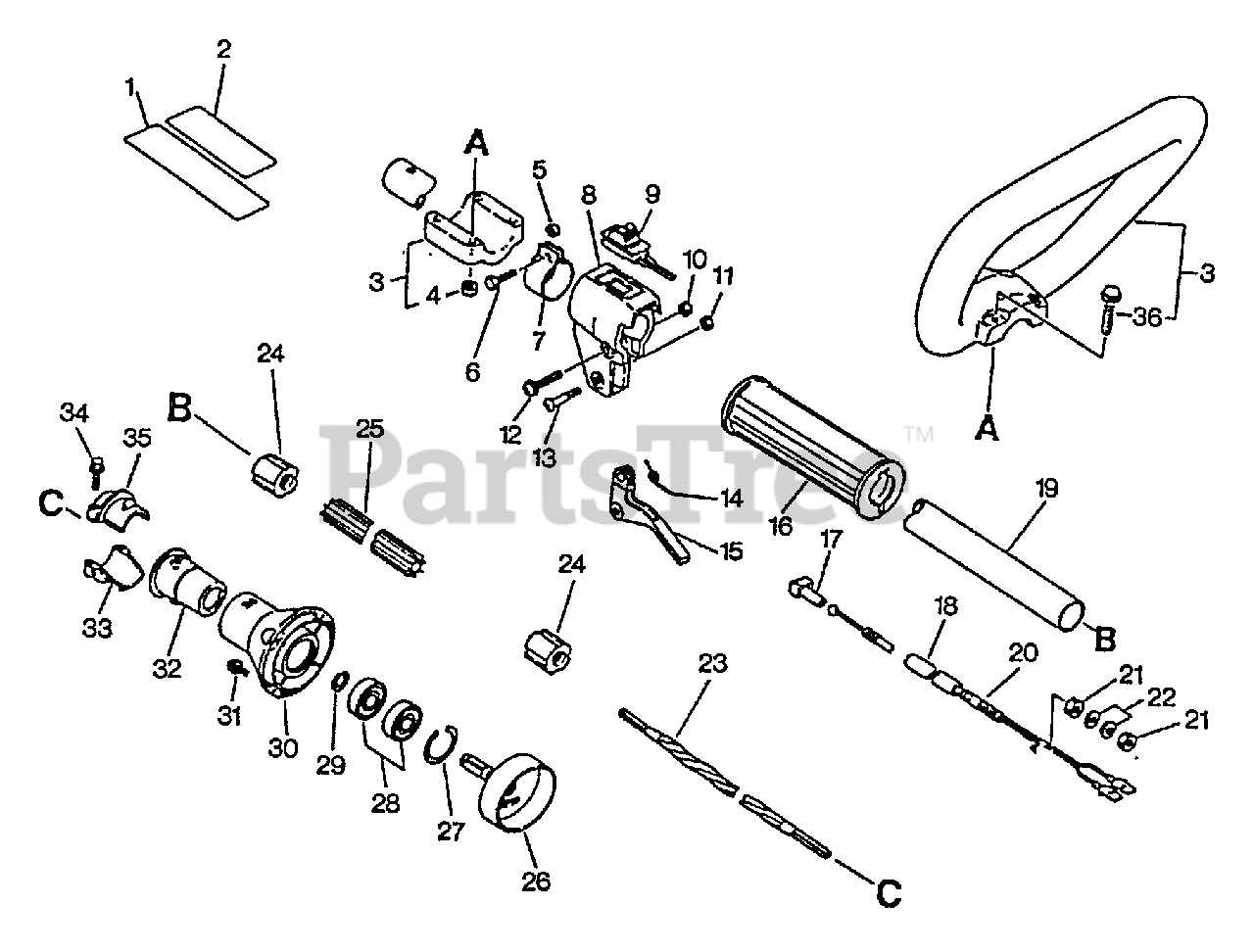

SRM-2501 - Echo String Trimmer (SN: 025001 - 043000) Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Parts Diagram

String Trimmer

Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Parts Diagram

  • Title

1

Echo 89016044730

LABEL - CAUTION

$3.99

$

Usually ships in 2-4 days

0

1

Echo 89033124330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

2

Echo 89017709130

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

2

Echo 89031744730

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

3

Echo 35120140830

LOOP HANDLE ASSY
(Superseded to 35120151730)

Note: INCLUDES ITEMS 3-4, 37

$12.99

$

Usually ships in 2-4 days

0

4

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

0

6

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

7

Echo 30120708930

CLAMP

$4.99

$

In Stock, only 2 left!

0

8

Echo 17802444730

BRACKET, THROTTLE CONTROL
(Superseded to 17802449230)

$

$

Not available

9

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 14

0

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

12

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

13

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

14

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

15

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.49

$

In Stock, Qty 20+

0

16

Echo 35101244730

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 15

0

18

Echo 17812740930

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

19

Echo 61020644730

MAIN PIPE ASSY
(Superseded to 61060944730)

Note: INCLUDES ITEMS 19, 24-25

$51.99

$

Usually ships in 2-4 days

0

20

Echo 17800140930

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

22

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

23

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, only 3 left!

0

24

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

25

Echo C507000260

LINER - FLEXIBLE

$25.99

$

Usually ships in 2-4 days

0

26

Echo 17500544830

DRUM, CLUTCH
(Superseded to 17500551730)

$15.99

$

Usually ships in 2-4 days

0

27

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

28

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 13

0

29

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

30

Echo 61022349230

CASE, CLUTCH - GRAY

$56.99

$

Usually ships in 2-4 days

0

31

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

32

Echo 61091027832

CUSHION

$7.99

$

In Stock, only 1 left!

0

33

Echo 61092327432

CLAMP, MAIN PIPE

$6.49

$

Usually ships in 2-4 days

0

34

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

35

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

36

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0
