SRM-2501 - Echo String Trimmer (SN: 001001 - 010200) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

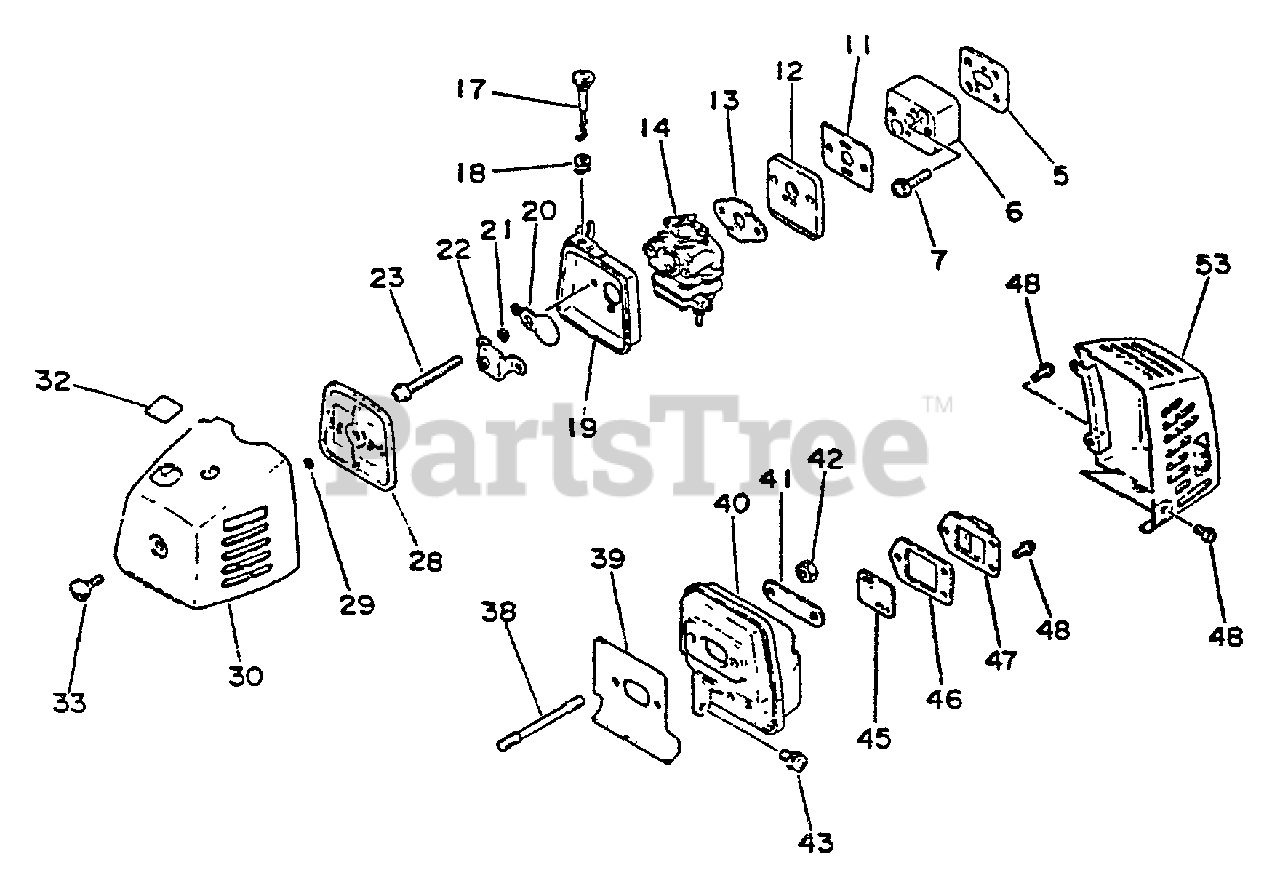

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title
5

Echo 13001022330

GASKET, INTAKE
(Superseded to 13001022331)

$

$

Not available

6

Echo 13000740930

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 10

0

11

Echo 13002240930

GASKET, INTAKE
(Superseded to 13002240931)

$

$

Not available

12

Echo 13002641030

PLATE
(Superseded to Discontinued)

$

$

Not available

13

Echo 13001640930

GASKET, INTAKE
(Superseded to 13001640931)

$0.99

$

In Stock, Qty 9

0

14

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

17

Echo 17851041030

ROD, CHOKE
(Superseded to 17851049130)

$

$

Not available

18

$1.99

$

In Stock, Qty 8

0

19

Echo 13030740930

CASE, AIR FILTER

$10.99

$

Usually ships in 2-4 days

0

20

Echo 17851540630

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

21

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

22

Echo 12900640930

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

23

Echo 90023805050

SCREW - 5X50

$0.99

$

In Stock, Qty 9

0

28

Echo 13031040930

FILTER, AIR

$11.99

$

In Stock, only 1 left!

0

30

Echo 13030240930

AIR FILTER COVER ASSY
(Superseded to Discontinued)

$

$

Not available

29

Echo 90072000004

O-RING - 4

$1.99

$

In Stock, Qty 14

0

33

$2.99

$

In Stock, only 1 left!

0

32

Echo X506000070

LABEL - CHOKE

$0.99

$

In Stock, Qty 9

0

32

Echo 89012112330

LABEL - CHOKE

$0.99

$

Usually ships in 2-4 days

0

38

Echo 10101422330

STUD - 5X60

$1.99

$

Usually ships in 2-4 days

0

39

Echo 14551022330

GASKET, EXHAUST
(Superseded to 14551022331)

$2.49

$

Usually ships in 2-4 days

0

40

Echo 14580627230

MUFFLER
(Superseded to Discontinued)

$

$

Not available

41

$1.49

$

Usually ships in 2-4 days

0

42

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

43

Echo 90023505010

SCREW - 5X10

$

$

Currently unavailable

45

Echo 14586227230

SCREEN, SPARK ARRESTOR

$3.99

$

Usually ships in 2-4 days

0

46

Echo 14586627230

GASKET, EXHAUST
(Superseded to 14586627231)

$

$

Not available

47

Echo 14590540930

GUIDE, EXHAUST

$7.99

$

Usually ships in 2-4 days

0

48

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

53

Echo 14590640931

COVER, EXHAUST
(Superseded to 14590640932)

$

$

Not available
