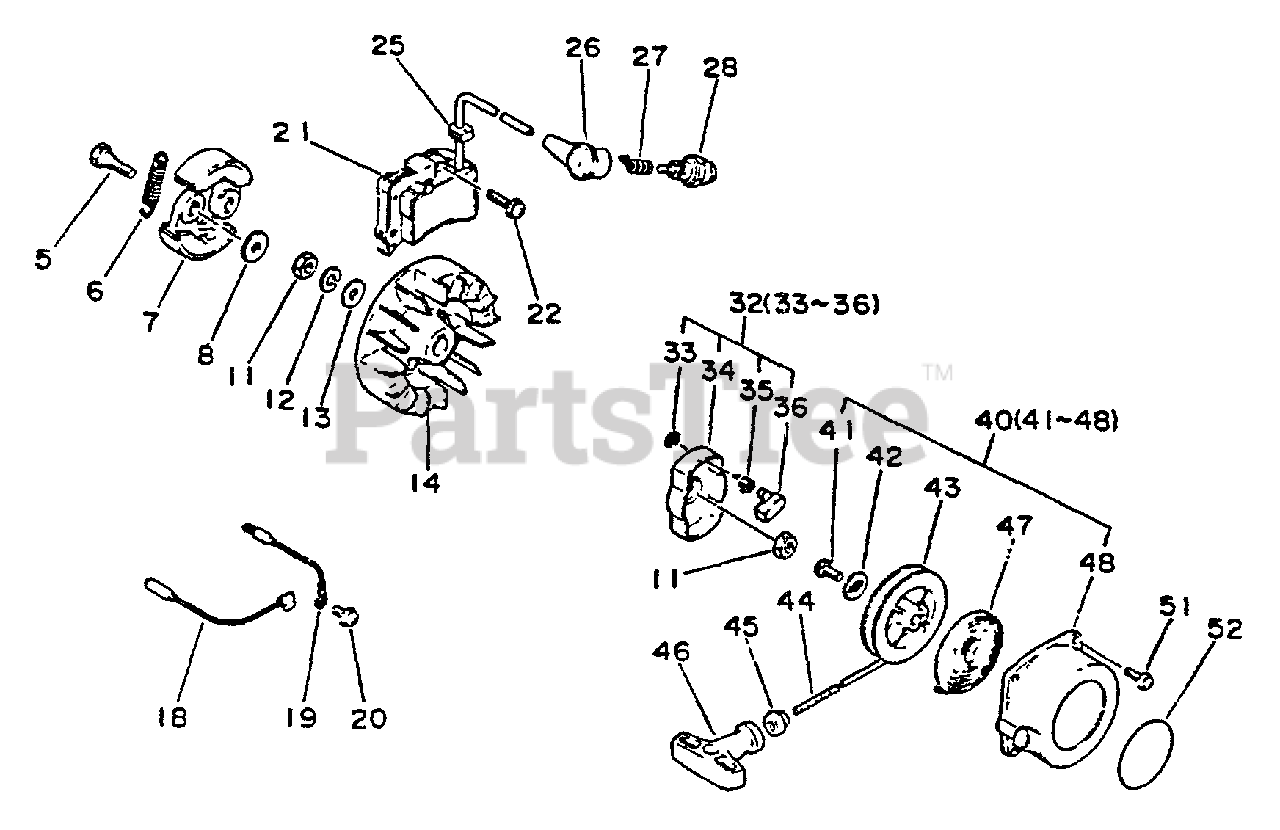

SRM-2501 - Echo String Trimmer (SN: 001001 - 010200) Clutch, Ignition, Starter Parts Diagram

String Trimmer

Clutch, Ignition, Starter Parts Diagram

  • Title
5

Echo 17504622332

BOLT, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

6

Echo 17501805535

SPRING, CLUTCH

$1.99

$

In Stock, only 1 left!

0

7

Echo 17500905531

SHOE, CLUTCH
(Superseded to 17500905532)

$21.99

$

In Stock, only 2 left!

0

8

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 7

0

11

$0.99

$

In Stock, only 2 left!

0

12

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

13

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

14

Echo 15680122330

FLYWHEEL

$94.99

$

Usually ships in 2-4 days

0

18

Echo 16202227230

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

19

Echo 16201427230

LEAD - GROUND

$2.99

$

In Stock, Qty 5

0

20

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 15660140930

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

22

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

25

$1.49

$

In Stock, only 2 left!

0

26

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

27

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

28

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

28

Echo 15901010230

SPARK PLUG -- BPMR-7A

Note: CANADA MODEL

$3.99

$

In Stock, Qty 20+

0

32

Echo A052000030

STARTER PAWL ASSY

$12.99

$

In Stock, Qty 20+

0

33

Echo 90070000006

RING, RETAINING - 6

$0.99

$

In Stock, Qty 5

0

34

Echo 17721040630

CATCHER, PAWL
(Superseded to 17720240630)

$12.99

$

In Stock, Qty 20+

0

35

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

36

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 6

0

40

Echo 17720040930

STARTER ASSY
(Superseded to 17720049330)

$

$

Not available

41

$3.99

$

In Stock, Qty 14

0

42

Echo 17721440630

WASHER
(Superseded to P022022280)

$0.99

$

In Stock, Qty 6

0

43

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

44

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 5

0

45

Echo 17722705530

GUIDE, ROPE

$3.99

$

In Stock, Qty 10

0

46

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 18

0

47

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 11

0

48

Echo 17723240930

CASE, STARTER
(Superseded to 17723249330)

$

$

Not available

51

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0

52

Echo 89011240930

LABEL - ECHO
(Superseded to 89011849330)

$6.49

$

In Stock, only 4 left!

0
