SRM-2410 - Echo String Trimmer (Type 1E) Starter, Fuel System Parts Diagram

String Trimmer (Type 1E)

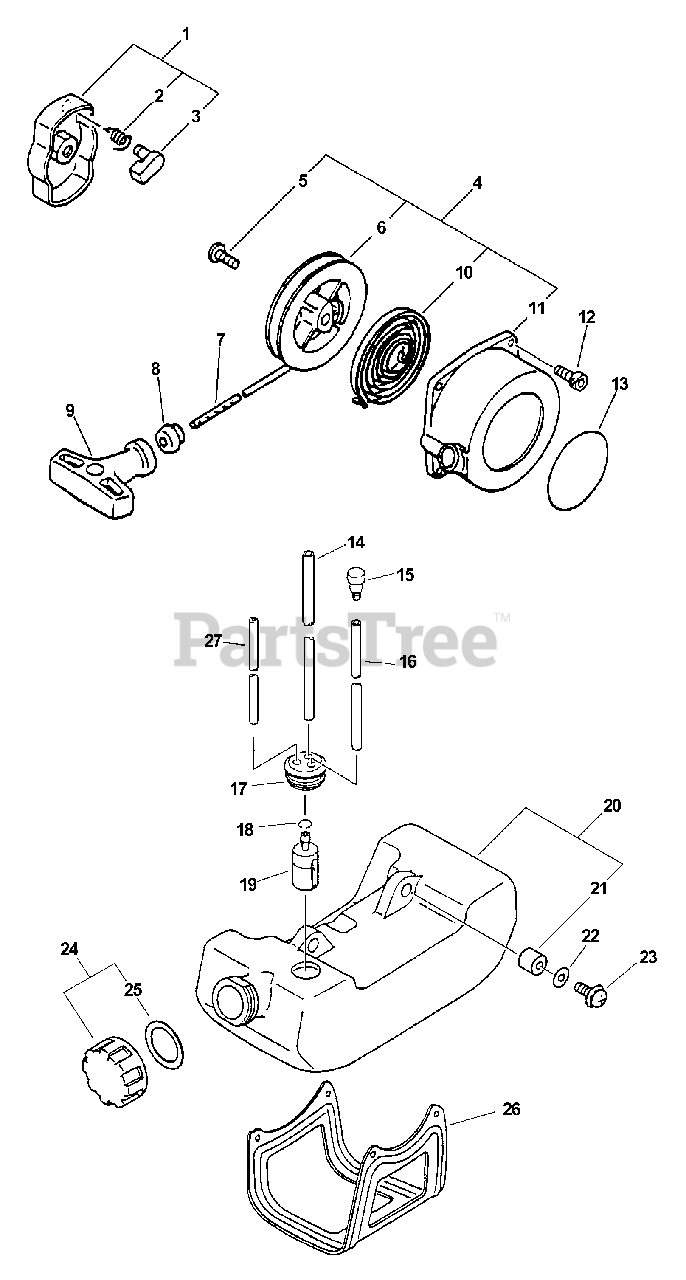

Starter, Fuel System Parts Diagram

  • Title
1

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 2-3

$16.99

$

In Stock, Qty 18

0

2

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

3

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

4

Echo 17720042033

STARTER ASSY

Note: INCLUDES ITEMS 4-11

$49.99

$

In Stock, Qty 20+

0

$3.49

$

In Stock, only 1 left!

0

6

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

7

Echo 17722610120

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$5.99

$

In Stock, Qty 6

0

8

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

9

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 19

0

10

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

11

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 2 left!

0

12

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

13

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

14

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

15

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

16

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

17

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

18

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

19

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

20

Echo 13100544331

TANK, FUEL
(Superseded to 13100544332)

Note: Includes ITEM 22

$20.99

$

In Stock, only 1 left!

0

21

$1.49

$

In Stock, Qty 20+

0

22

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

24

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: Includes ITEM 26

$4.49

$

In Stock, only 1 left!

0

25

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

26

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

27

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0
