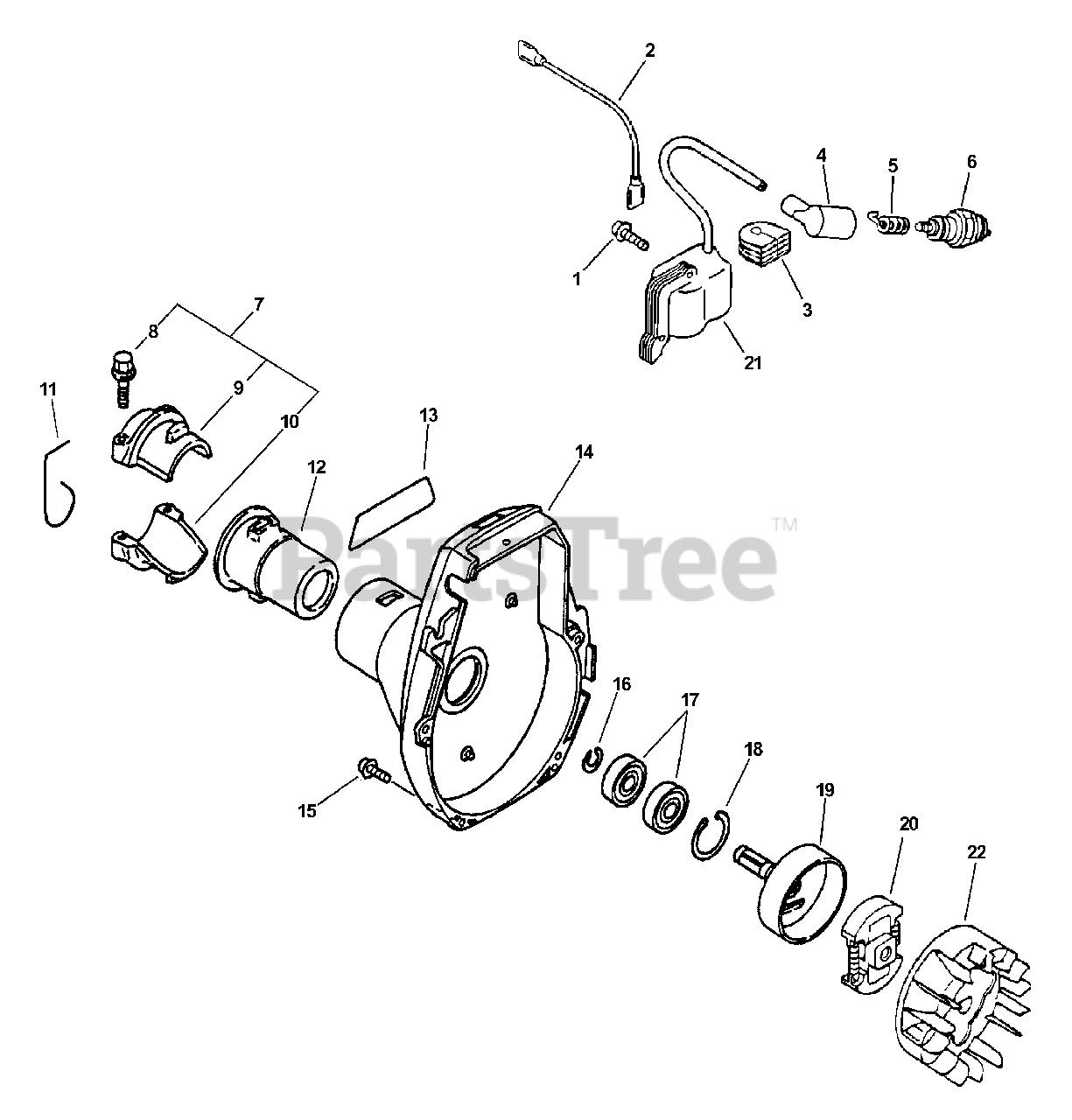

SRM-2410 - Echo String Trimmer (Type 1E) Ignition, Fan Case Parts Diagram

String Trimmer (Type 1E)

Ignition, Fan Case Parts Diagram

  • Title

1

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

2

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$3.99

$

In Stock, Qty 7

0

3

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 3 left!

0

4

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

5

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

6

Echo 99944500071

SPARK PLUG -- BPM-7Y

$3.49

$

In Stock, only 2 left!

0

6

Echo 15901010230

SPARK PLUG -- BPMR-7A

Note: CANADA MODELS

$3.49

$

In Stock, Qty 20+

0

7

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: INCLUDES ITEMS 8-10

$18.99

$

Usually ships in 2-4 days

0

8

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

9

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

10

Echo A575000100

CLAMP, MAIN PIPE - LOWER

$8.49

$

Usually ships in 2-4 days

0

11

Echo 17811106230

CLIP

Note: S/N: 503485 & UP

$2.49

$

Usually ships in 2-4 days

0

12

Echo 61091055230

CUSHION

$7.49

$

In Stock, only 2 left!

0

13

Echo 89011252130

LABEL - MODEL SRM-2400
(Superseded to Discontinued)

$

$

Not available

14

Echo 89013552130

LABEL - MODEL SRM-2410
(Superseded to Discontinued)

$

$

Not available

14

Echo 10150352131

CASE, FAN

$65.99

$

In Stock, only 1 left!

0

15

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

16

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

17

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 18

0

18

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

19

Echo 17500548931

DRUM, CLUTCH

$13.99

$

In Stock, Qty 6

0

20

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$27.99

$

In Stock, Qty 6

0

21

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

Note: S/N: 001001-501000

$133.99

$

In Stock, only 1 left!

0

22

Echo 15680144731

FLYWHEEL

Note: S/N: 001001-501000

$105.99

$

Usually ships in 2-4 days

0

21

Echo 15662652730

COIL, IGNITION
(Superseded to 15662652731)

Note: S/N: 501001 & UP

$

$

Not available

22

Echo 15680109660

FLYWHEEL

Note: S/N: 501001 & UP

$75.99

$

Usually ships in 2-4 days

0
