SRM-2410 - Echo String Trimmer (Type 1) Driveshaft, Handles, Throttle, Stop Switch Parts Diagram

String Trimmer (Type 1)

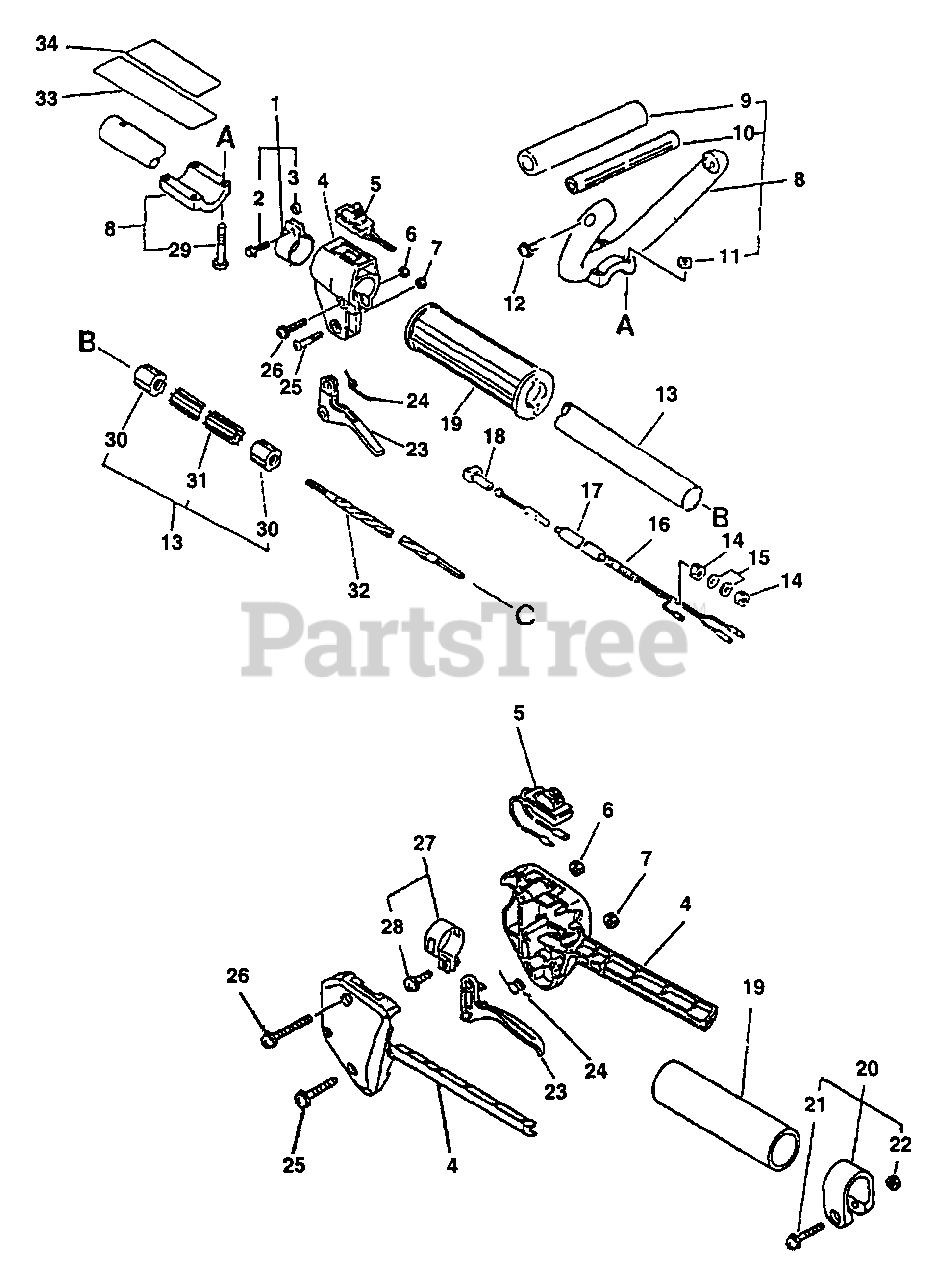

Driveshaft, Handles, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 30120708930

CLAMP

Note: INCLUDES ITEMS 2 & 3

$4.99

$

In Stock, only 2 left!

0

2

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

3

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

0

4

Echo 17802449230

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

Note: S/N 001001 - 016000

$

$

Not available

4

Echo 17800352130

CONTROL HANDLE KIT

Note: (S/N 016001 & UP). INCLUDES ITEMS 6, 25, & 26

$4.99

$

In Stock, only 1 left!

0

5

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 7

0

6

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

8

Echo 35120151730

LOOP HANDLE ASSY
(Superseded to P021012410)

Note: (S/N 001001 - 016000). INCLUDES ITEMS 9 - 12 & 29

$12.99

$

Usually ships in 2-4 days

0

8

Echo 35120152130

LOOP HANDLE ASSY

Note: (S/N 016001 & UP). INCLUDES ITEMS 9 - 12 8 29

$65.99

$

In Stock, only 1 left!

0

9

Echo 35121351730

GRIP, HANDLE

$8.49

$

In Stock, Qty 6

0

10

Echo 35121051730

HANDLE

$4.49

$

Usually ships in 2-4 days

0

11

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

13

Echo 61060944730

MAIN PIPE ASSY

Note: INCLUDES ITEMS 30 & 31

$51.99

$

Usually ships in 2-4 days

0

14

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

15

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

16

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, only 1 left!

0

17

Echo 17812724030

TUBE - VINYL

Note: S/N 001001 - 016000

$0.99

$

In Stock, Qty 10

0

17

Echo 17812750330

TUBE - VINYL

Note: S/N 16001 & UP

$1.49

$

In Stock, Qty 5

0

18

Echo 17804805630

GUIDE, CABLE

Note: S/N 001001 - 016000

$1.99

$

In Stock, Qty 15

0

19

Echo 35101244730

GRIP, HANDLE
(Superseded to Discontinued)

Note: S/N 001001 - 016000

$

$

Not available

19

Echo 35121352130

GRIP, HANDLE

Note: S/N 016001 & UP

$9.49

$

In Stock, only 2 left!

0

20

Echo 61027252130

CLAMP KIT

Note: (S/N 016001 & UP). INCLUDES ITEMS 21 & 22

$9.99

$

In Stock, only 1 left!

0

21

Echo 90024205028

SCREW - 5X28

Note: S/N 016001 & UP

$0.99

$

In Stock, Qty 7

0

22

Echo 90050000005

NUT - 5

Note: S/N 016001 & UP

$0.99

$

In Stock, Qty 20+

0

23

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

Note: S/N 001001 - 016000

$1.49

$

In Stock, Qty 20+

0

23

Echo 17801052130

TRIGGER, THROTTLE

Note: S/N 016001 & UP

$3.49

$

In Stock, Qty 20+

0

24

Echo 17804306930

SPRING, TRIGGER

Note: S/N 001001 - 016000

$0.99

$

In Stock, Qty 20+

0

24

Echo 17804342230

SPRING, TRIGGER

Note: S/N 016001 & UP

$0.99

$

In Stock, Qty 20+

0

25

Echo 17811005330

SCREW - 5X30

Note: S/N 001001 - 016000

$0.99

$

In Stock, Qty 6

0

25

Echo 90024205025

SCREW - 5X25

Note: S/N 016001 & UP

$0.99

$

In Stock, Qty 20+

0

26

Echo 90024205030

SCREW - 5X30

Note: S/N 001001 - 016000

$0.99

$

In Stock, only 2 left!

0

26

Echo 90024205035

SCREW - 5X35

Note: S/N 016001 & UP

$0.99

$

In Stock, Qty 20+

0

27

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: (S/N 016001 & UP). INCLUDES ITEM 28

$9.49

$

In Stock, only 1 left!

0

28

Echo 90024205014

SCREW - 5X14

Note: S/N 016001 & UP

$0.99

$

In Stock, Qty 20+

0

29

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

30

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

31

Echo C507000260

LINER - FLEXIBLE

$25.99

$

Usually ships in 2-4 days

0

32

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, only 3 left!

0

33

Echo 89016049730

LABEL - CAUTION

$6.49

$

Usually ships in 2-4 days

0

34

Echo 89031744530

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

34

Echo 89031744730

LABEL - CAUTION
(Superseded to Discontinued)

Note: CANADA

$

$

Not available
