SRM-2400 - Echo String Trimmer (Type 1E) Gear Case, Shield, Tools Parts Diagram

String Trimmer (Type 1E)

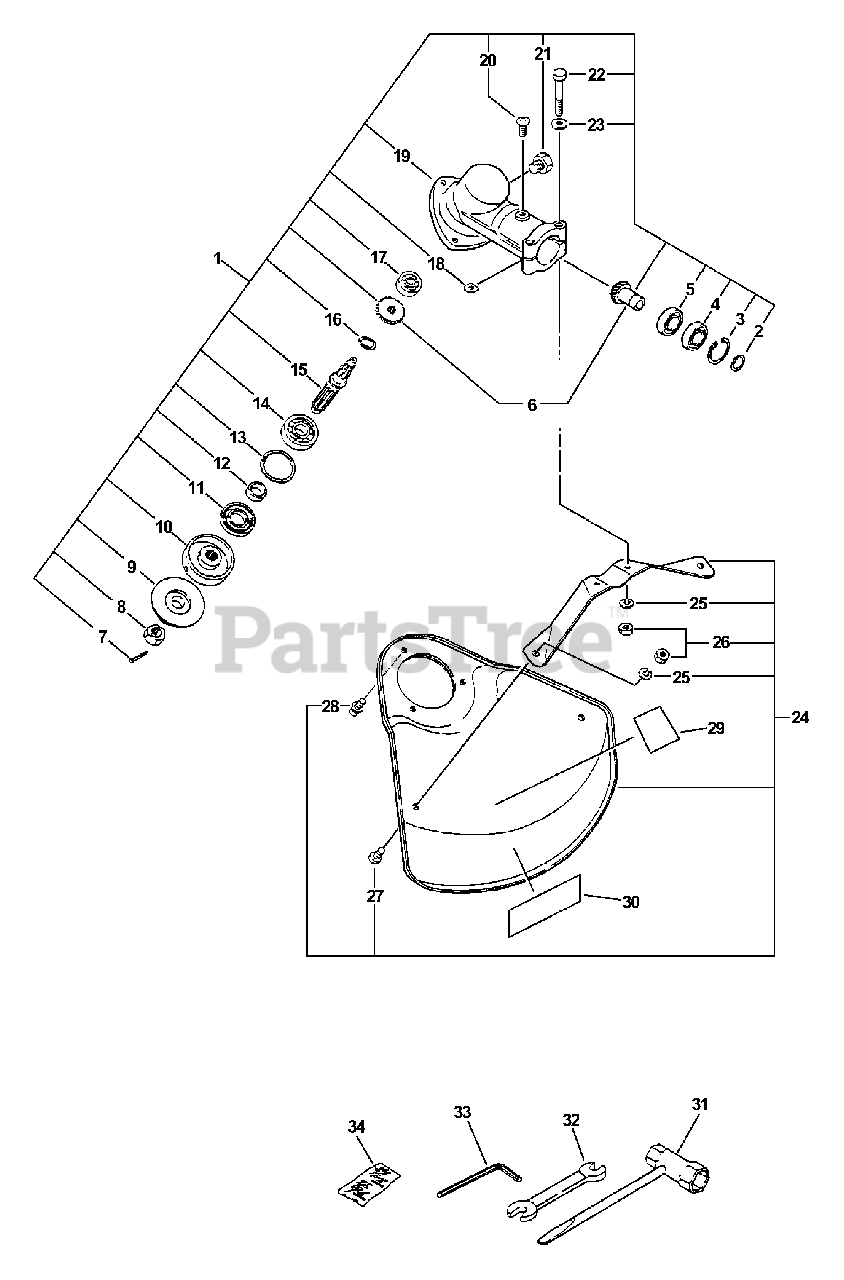

Gear Case, Shield, Tools Parts Diagram

  • Title

1

Echo 61040240930

GEAR CASE ASSY
(Superseded to 61040240932)

Note: INCLUDES ITEMS 2-23

$158.99

$

Usually ships in 2-4 days

0

2

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

3

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

4

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

5

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

6

Echo 61030044830

GEAR SET - BEVEL

$88.99

$

Usually ships in 2-4 days

0

7

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

8

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, only 2 left!

0

9

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, only 2 left!

0

10

Echo 61033808930

ADAPTOR, BLADE - UPPER
(Superseded to C535000160)

Note: SRM-2410 WITH BLADE ONLY

$10.99

$

In Stock, Qty 18

0

11

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

12

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

13

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 5

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

15

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

16

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

17

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 11

0

18

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

19

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

20

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

22

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

23

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 69900023431

DEBRIS SHIELD KIT - METAL
(Superseded to 69900023432)

Note: INCLUDES ITEMS 25-28

$23.99

$

In Stock, only 1 left!

0

25

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

26

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

27

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

28

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

29

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 8

0

30

Echo 89016841031

LABEL - DANGER

$2.49

$

Usually ships in 2-4 days

0

31

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

32

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

33

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

34

Echo 89850201130

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$1.99

$

In Stock, only 2 left!

0
