Echo SRM-2320 T - Echo String Trimmer (SN: U29515001001 - U29515999999) Control Handle Parts Lookup with Diagrams

1

Echo P021044483

CONTROL HANDLE ASSY

Note: Includes Items 2-14

$35.99

$

In Stock, Qty 12

2

Echo P021044371

CONTROL HANDLE KIT

Note: Includes Item 3

$10.99

$

Usually ships in 2-4 days

3

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

4

Echo P021044750

CABLE ASSY, CONTROL

Note: Includes Items 5-8

$17.99

$

In Stock, only 3 left!

5

Echo 9154503010

SCREW 3x10

$0.99

$

In Stock, Qty 20+

6

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

7

Echo 90051800006

NUT, FLANGE M6

$1.49

$

In Stock, Qty 11

8

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 8

9

Echo C453000482

TRIGGER, THROTTLE

$2.99

$

In Stock, Qty 20+

10

Echo V452001520

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

11

Echo C460000441

LEVER, THROTTLE LOCKOUT

$1.49

$

In Stock, Qty 20+

12

Echo V452001510

SPRING, TORSION

$1.49

$

In Stock, Qty 9

13

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

14

Echo V495003020

CLAMP

$1.49

$

In Stock, Qty 9

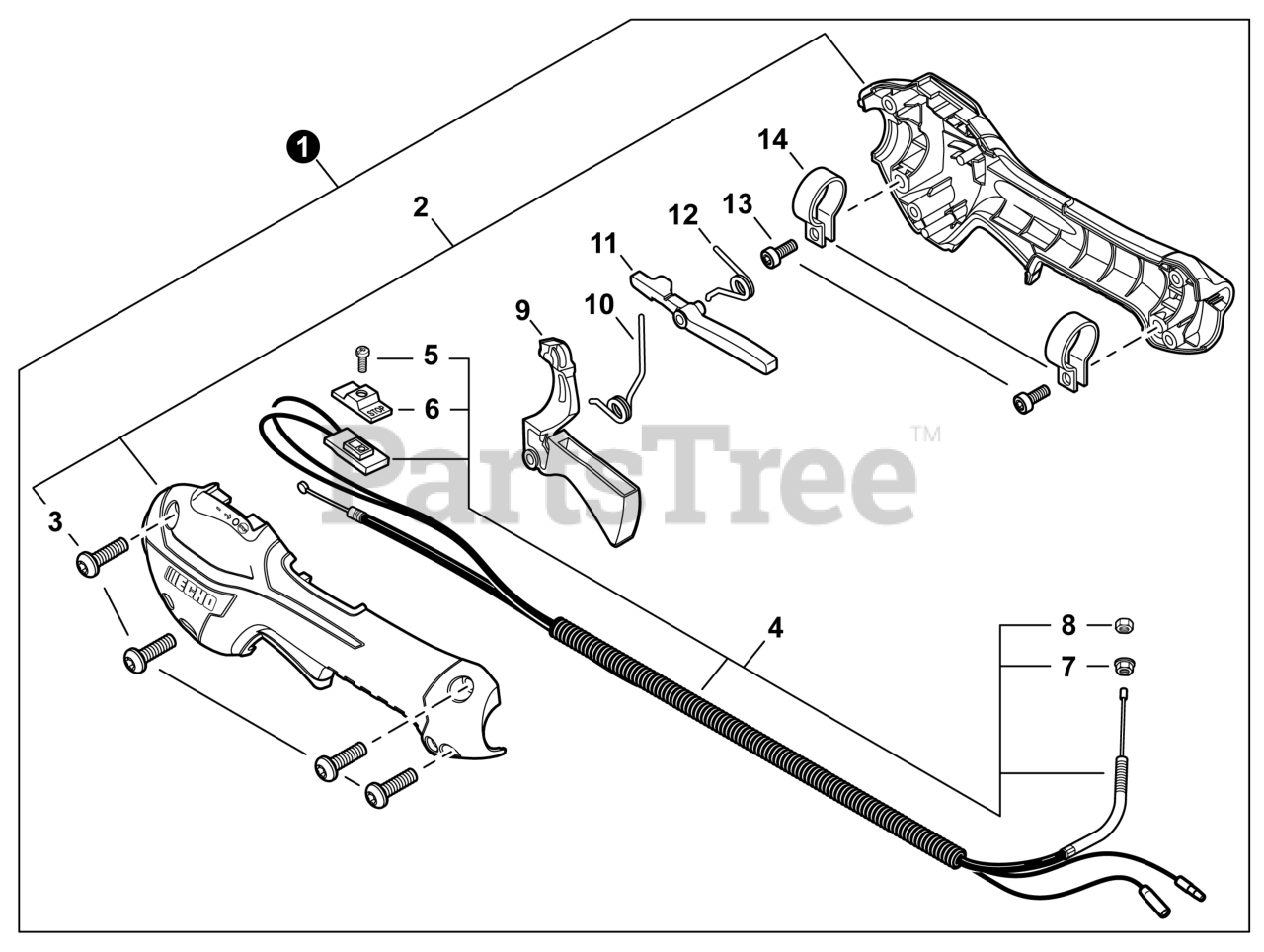

SRM-2320 T - Echo String Trimmer (SN: U29515001001 - U29515999999) Control Handle Parts Diagram

Control Handle Parts Diagram

Echo P021044483

Echo P021044371

Echo V805000000

Echo P021044750

Echo 9154503010

Echo A444000020

Echo 90051800006

Echo 90050200006

Echo C453000482

Echo V452001520

Echo C460000441

Echo V452001510

Echo V805000150

Echo V495003020
