SRM-2305 - Echo String Trimmer (SN: S25220001001 - S25220999999) Brushcutter (Part 6) Parts Diagram

String Trimmer

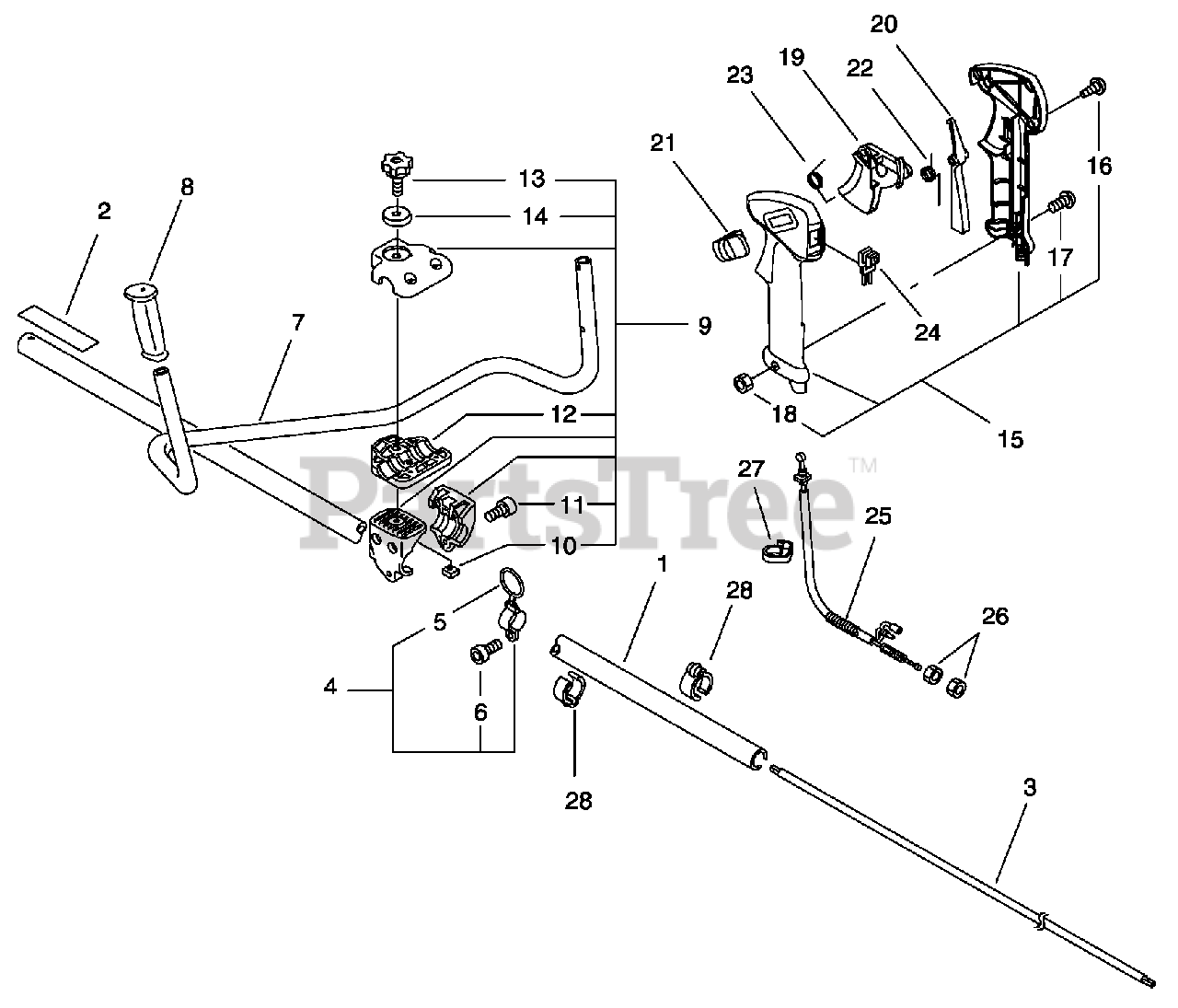

Brushcutter (Part 6) Parts Diagram

  • Title

1

Echo 61020628230

MAIN PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 61020628230

MAIN PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 89061743130

LABEL - CAUTION

$22.99

$

Usually ships in 2-4 days

0

2

Echo 89061743130

LABEL - CAUTION

$22.99

$

Usually ships in 2-4 days

0

3

Echo 61001827830

DRIVESHAFT

$48.99

$

Usually ships in 2-4 days

0

3

Echo 61001827830

DRIVESHAFT

$48.99

$

Usually ships in 2-4 days

0

4

Echo C646000060

HANGER KIT
(Superseded to P021046740)

Note: Includes 5-6

$3.49

$

In Stock, Qty 20+

0

4

Echo C646000060

HANGER KIT
(Superseded to P021046740)

Note: Includes 5-6

$3.49

$

In Stock, Qty 20+

0

5

Echo 30101505330

RING

$4.49

$

Usually ships in 2-4 days

0

5

Echo 30101505330

RING

$4.49

$

Usually ships in 2-4 days

0

6

Echo 9111905012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

6

Echo 9111905012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

7

Echo C400000000

HANDLE - FRONT

$95.99

$

Usually ships in 2-4 days

0

7

Echo C400000000

HANDLE - FRONT

$95.99

$

Usually ships in 2-4 days

0

8

Echo C403000031

GRIP, HANDLE

$9.99

$

Usually ships in 2-4 days

0

8

Echo C403000031

GRIP, HANDLE

$9.99

$

Usually ships in 2-4 days

0

9

Echo P021012821

HANDLE BRACKET KIT
(Superseded to P021012822)

Note: Includes 10-14

$80.99

$

Usually ships in 2-4 days

0

9

Echo P021012821

HANDLE BRACKET KIT
(Superseded to P021012822)

Note: Includes 10-14

$80.99

$

Usually ships in 2-4 days

0

10

Echo 90056550008

NUT - 8

$1.49

$

Usually ships in 2-4 days

0

10

Echo 90056550008

NUT - 8

$1.49

$

Usually ships in 2-4 days

0

11

Echo 9111805030

SCREW - 5X30

$1.49

$

Usually ships in 2-4 days

0

11

Echo 9111805030

SCREW - 5X30

$1.49

$

Usually ships in 2-4 days

0

12

Echo C423000041

BRACKET, HANDLE - LOWER

$17.99

$

Usually ships in 2-4 days

0

12

Echo C423000041

BRACKET, HANDLE - LOWER

$17.99

$

Usually ships in 2-4 days

0

13

Echo V299000110

THUMBSCREW

$12.99

$

Usually ships in 2-4 days

0

13

Echo V299000110

THUMBSCREW

$12.99

$

Usually ships in 2-4 days

0

14

Echo 60501454230

WASHER - 8

$3.49

$

Usually ships in 2-4 days

0

14

Echo 60501454230

WASHER - 8

$3.49

$

Usually ships in 2-4 days

0

15

Echo P021014090

CONTROL HANDLE ASSY

Note: Includes 16-18

$37.99

$

Usually ships in 2-4 days

0

15

Echo P021014090

CONTROL HANDLE ASSY

Note: Includes 16-18

$37.99

$

Usually ships in 2-4 days

0

16

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

16

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

17

Echo 9111905030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

17

Echo 9111905030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

18

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo C450000270

TRIGGER, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

19

Echo C450000270

TRIGGER, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

20

Echo C460000111

LEVER, TRIGGER LOCKOUT

$4.49

$

Usually ships in 2-4 days

0

20

Echo C460000111

LEVER, TRIGGER LOCKOUT

$4.49

$

Usually ships in 2-4 days

0

21

Echo C463000020

LOCK, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

21

Echo C463000020

LOCK, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

22

Echo V452000360

SPRING, TRIGGER

$1.99

$

Usually ships in 2-4 days

0

22

Echo V452000360

SPRING, TRIGGER

$1.99

$

Usually ships in 2-4 days

0

23

Echo V452000350

SPRING, LOCKOUT LEVER

$2.49

$

Usually ships in 2-4 days

0

23

Echo V452000350

SPRING, LOCKOUT LEVER

$2.49

$

Usually ships in 2-4 days

0

24

Echo A440001220

SWITCH, IGNITION

$15.99

$

Usually ships in 2-4 days

0

24

Echo A440001220

SWITCH, IGNITION

$15.99

$

Usually ships in 2-4 days

0

25

Echo V430002350

CABLE, THROTTLE

$10.99

$

Usually ships in 2-4 days

0

25

Echo V430002350

CABLE, THROTTLE

$10.99

$

Usually ships in 2-4 days

0

26

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

26

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

27

Echo 15911209961

CLIP

$3.99

$

Usually ships in 2-4 days

0

27

Echo 15911209961

CLIP

$3.99

$

Usually ships in 2-4 days

0

28

Echo 22492452130

CLIP

$6.99

$

In Stock, only 1 left!

0

28

Echo 22492452130

CLIP

$6.99

$

In Stock, only 1 left!
