SRM-2305 - Echo String Trimmer (SN: S25220001001 - S25220999999) Brushcutter (Part 1) Parts Diagram

String Trimmer

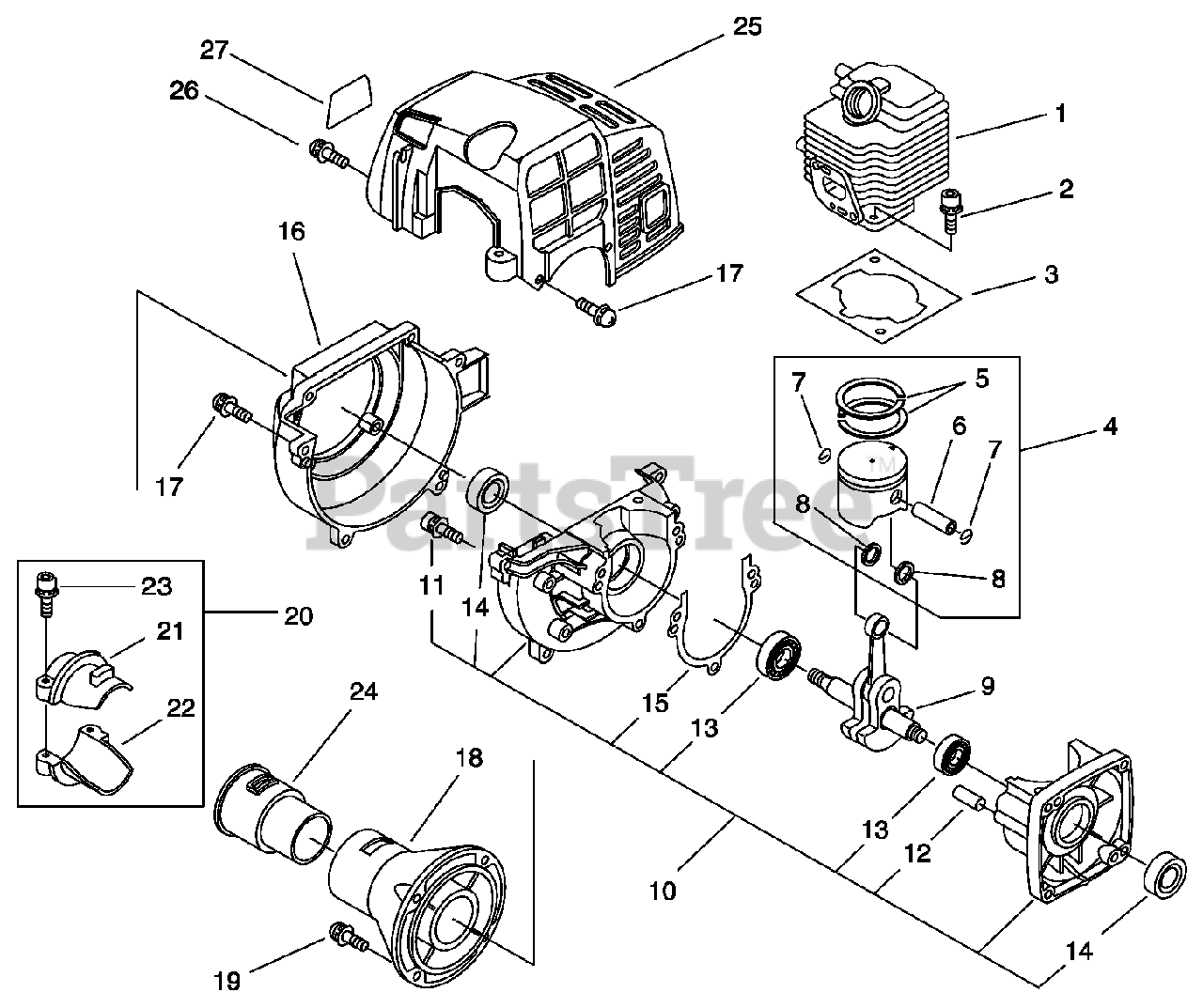

Brushcutter (Part 1) Parts Diagram

  • Title

1

Echo 10101106562

CYLINDER

$109.99

$

Usually ships in 2-4 days

0

1

Echo 10101106562

CYLINDER

$109.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, only 4 left!

0

3

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, only 4 left!

0

4

Echo P021009950

PISTON KIT

Note: Includes 5 - 8

$54.99

$

Usually ships in 2-4 days

0

4

Echo P021009950

PISTON KIT

Note: Includes 5 - 8

$54.99

$

Usually ships in 2-4 days

0

5

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

5

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

8

Echo V306000150

WASHER - 8

$2.49

$

Usually ships in 2-4 days

0

8

Echo V306000150

WASHER - 8

$2.49

$

Usually ships in 2-4 days

0

9

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

$155.99

$

In Stock, only 1 left!

0

9

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

$155.99

$

In Stock, only 1 left!

0

10

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes 11 -15

$140.99

$

Usually ships in 2-4 days

0

10

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes 11 -15

$140.99

$

Usually ships in 2-4 days

0

11

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

11

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

12

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

12

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

13

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

13

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

14

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

14

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

15

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

15

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

16

Echo 10151144730

CASE, FAN - ORANGE

Note: (BS)

$48.99

$

Usually ships in 2-4 days

0

16

Echo 10151144730

CASE, FAN - ORANGE

Note: (BS)

$48.99

$

Usually ships in 2-4 days

0

17

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

17

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

18

Echo 61022344730

CASE, CLUTCH

Note: (BS)

$56.99

$

Usually ships in 2-4 days

0

18

Echo 61022344730

CASE, CLUTCH

Note: (BS)

$56.99

$

Usually ships in 2-4 days

0

19

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

19

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

20

Echo P021013520

HOLDER KIT

Note: Includes 21 - 23

$9.99

$

Usually ships in 2-4 days

0

20

Echo P021013520

HOLDER KIT

Note: Includes 21 - 23

$9.99

$

Usually ships in 2-4 days

0

21

Echo 61092227432

HOLDER

$5.99

$

Usually ships in 2-4 days

0

21

Echo 61092227432

HOLDER

$5.99

$

Usually ships in 2-4 days

0

22

Echo 61092327432

HOLDER

$6.49

$

Usually ships in 2-4 days

0

22

Echo 61092327432

HOLDER

$6.49

$

Usually ships in 2-4 days

0

23

Echo 9111805025

SCREW - 5X25

$0.99

$

Usually ships in 2-4 days

0

23

Echo 9111805025

SCREW - 5X25

$0.99

$

Usually ships in 2-4 days

0

24

Echo 61091027832

CUSHION

$7.99

$

In Stock, only 1 left!

0

24

Echo 61091027832

CUSHION

$7.99

$

In Stock, only 1 left!

0

25

Echo 10151442031

COVER, ENGINE

$24.99

$

Usually ships in 2-4 days

0

25

Echo 10151442031

COVER, ENGINE

$24.99

$

Usually ships in 2-4 days

0

26

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 6

0

26

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 6

0

27

Echo X547001160

LABEL - ECHO

$3.99

$

Usually ships in 2-4 days

0

27

Echo X547001160

LABEL - ECHO

$3.99

$

Usually ships in 2-4 days

0
