SRM-2301 - Echo String Trimmer (SN: 0001001 - 0031000) Gear Case Parts Diagram

String Trimmer

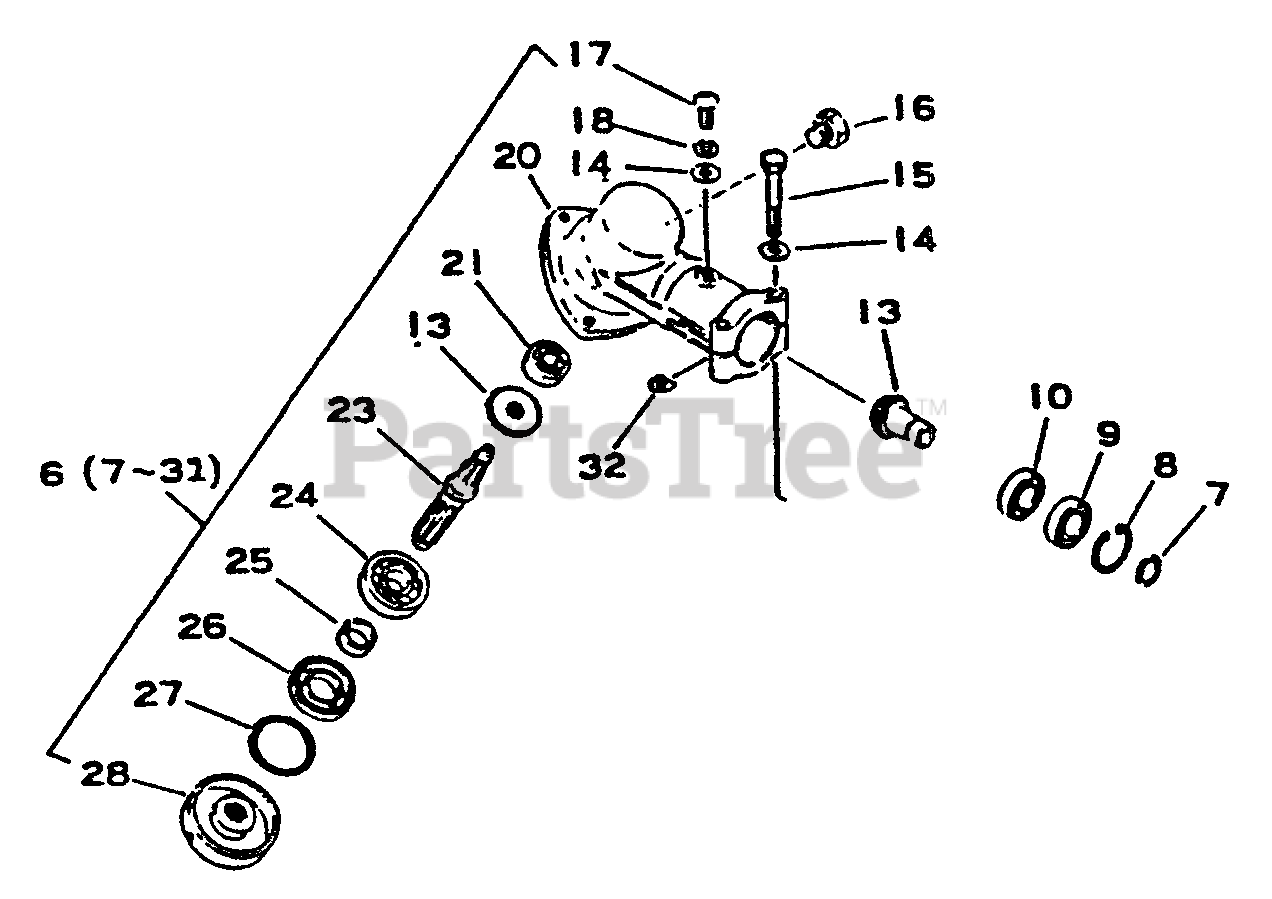

Gear Case Parts Diagram

  • Title

6

Echo 61040247732

GEAR CASE ASSY
(Superseded to 61040247733)

$98.99

$

Usually ships in 2-4 days

0

7

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

8

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

9

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

10

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

13

Echo 61030044830

GEAR SET - BEVEL

$88.99

$

Usually ships in 2-4 days

0

14

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

16

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

17

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 9

0

18

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

20

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

21

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 12

0

23

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

24

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

25

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 5

0

26

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

27

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 15

0

28

Echo 61031347730

ADAPTOR, BLADE - UPPER
(Superseded to 61031347731)

$12.99

$

In Stock, Qty 18

0

32

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0
