SRM-2301 - Echo String Trimmer (SN: 0001001 - 0031000) Clutch, Ignition, Starter Parts Diagram

String Trimmer

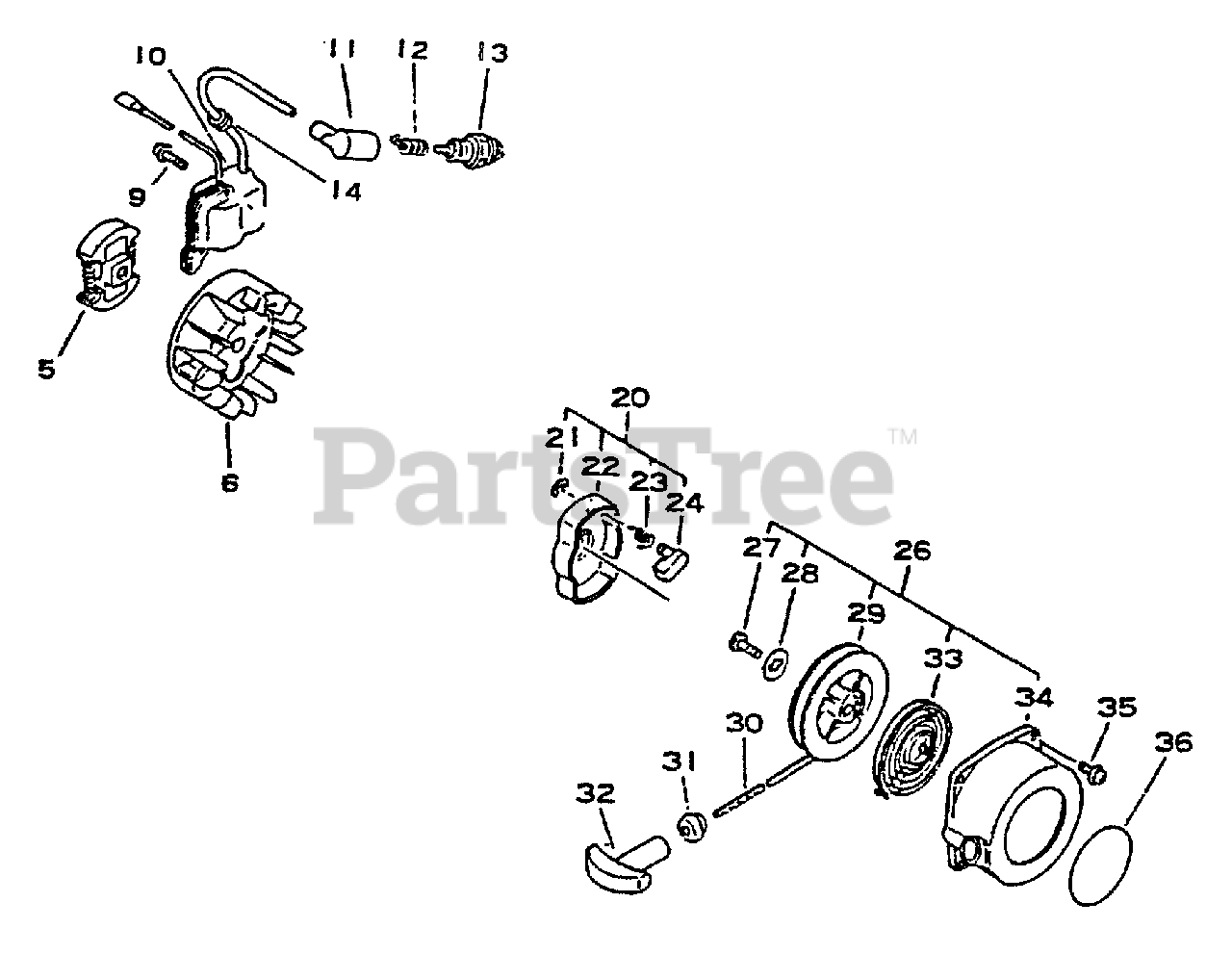

Clutch, Ignition, Starter Parts Diagram

  • Title
5

Echo 17500042030

CLUTCH ASSY
(Superseded to 17500042031)

$27.99

$

In Stock, Qty 6

0

6

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

9

Echo 90023504022

SCREW - 4X22

$

$

Currently unavailable

10

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

11

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

12

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 18

0

13

Echo 15901713930

SPARK PLUG -- CJ-7Y
(Superseded to 15901010630)

$3.49

$

In Stock, Qty 20+

0

14

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

20

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 18

0

21

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

22

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 18

0

23

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

24

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

26

Echo 17720042030

STARTER ASSY
(Superseded to 17720042031)

$49.99

$

In Stock, Qty 20+

0

27

$3.99

$

In Stock, Qty 14

0

28

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

29

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 16

0

30

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

31

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

32

Echo 17722805530

GRIP, STARTER
(Superseded to 17722806530)

$4.99

$

In Stock, Qty 20+

0

33

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 6

0

34

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 2 left!

0

35

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

36

Echo 89011844330

LABEL - ECHO
(Superseded to 89011848830)

$0.99

$

In Stock, Qty 8

0
