SRM-2300 - Echo String Trimmer Gear Case, Shield, Metal, Harness Parts Diagram

String Trimmer

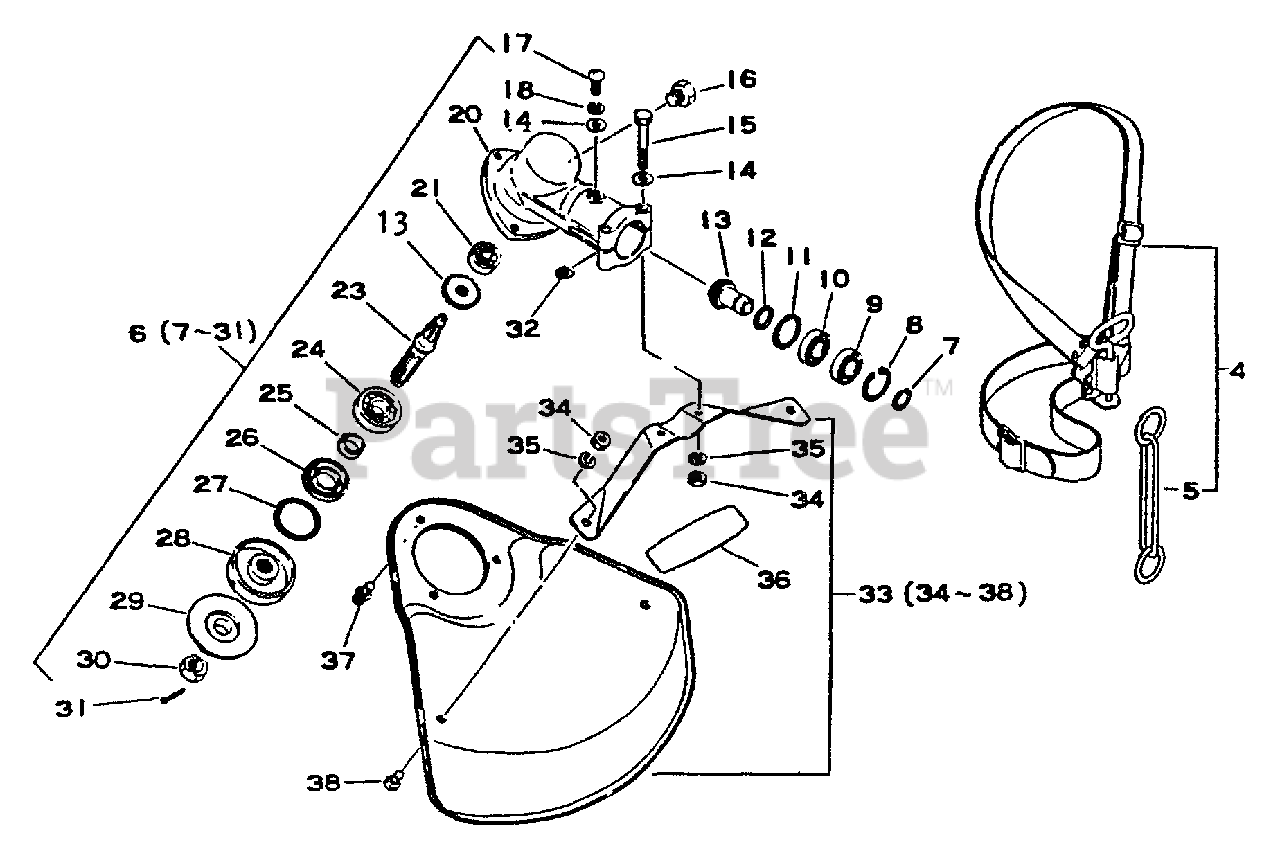

Gear Case, Shield, Metal, Harness Parts Diagram

  • Title

4

Echo 30100024330

SHOULDER STRAP ASSY
(Superseded to 30100050330)

$82.99

$

Usually ships in 2-4 days

0

5

Echo 30130524330

HOOK

$10.99

$

Usually ships in 2-4 days

0

6

Echo 61040042330

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

8

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

9

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

10

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

11

Echo 61031722830

WASHER

$0.99

$

In Stock, Qty 6

0

12

Echo 61031622830

WASHER

$0.99

$

Usually ships in 2-4 days

0

13

Echo 61030042330

GEAR SET

$100.99

$

Usually ships in 2-4 days

0

14

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

16

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

17

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

18

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

20

Echo 61041040830

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

21

Echo 90081000626

BEARING, BALL - 626

$11.99

$

Usually ships in 2-4 days

0

23

Echo 61031040830

GEAR - SHAFT
(Superseded to Discontinued)

$

$

Not available

24

Echo 90080006000

BEARING, BALL - 6000

$10.99

$

Usually ships in 2-4 days

0

25

Echo 61031522830

SPACER

$6.49

$

Usually ships in 2-4 days

0

26

Echo 61041322830

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

27

Echo 90070200026

RING, RETAINING - 26

$1.99

$

In Stock, Qty 10

0

28

Echo 61031340830

ADAPTOR, BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

29

Echo 61031406030

ADAPTOR, BLADE - LOWER
(Superseded to Discontinued)

$

$

Not available

30

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 6

0

31

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

32

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

33

Echo 69900009131

SHIELD ASSY
(Superseded to Discontinued)

$

$

Not available

34

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

35

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

37

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

38

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

36

Echo 89013844330

LABEL - ECHO
(Superseded to 89011848730)

$0.99

$

In Stock, Qty 8

0
