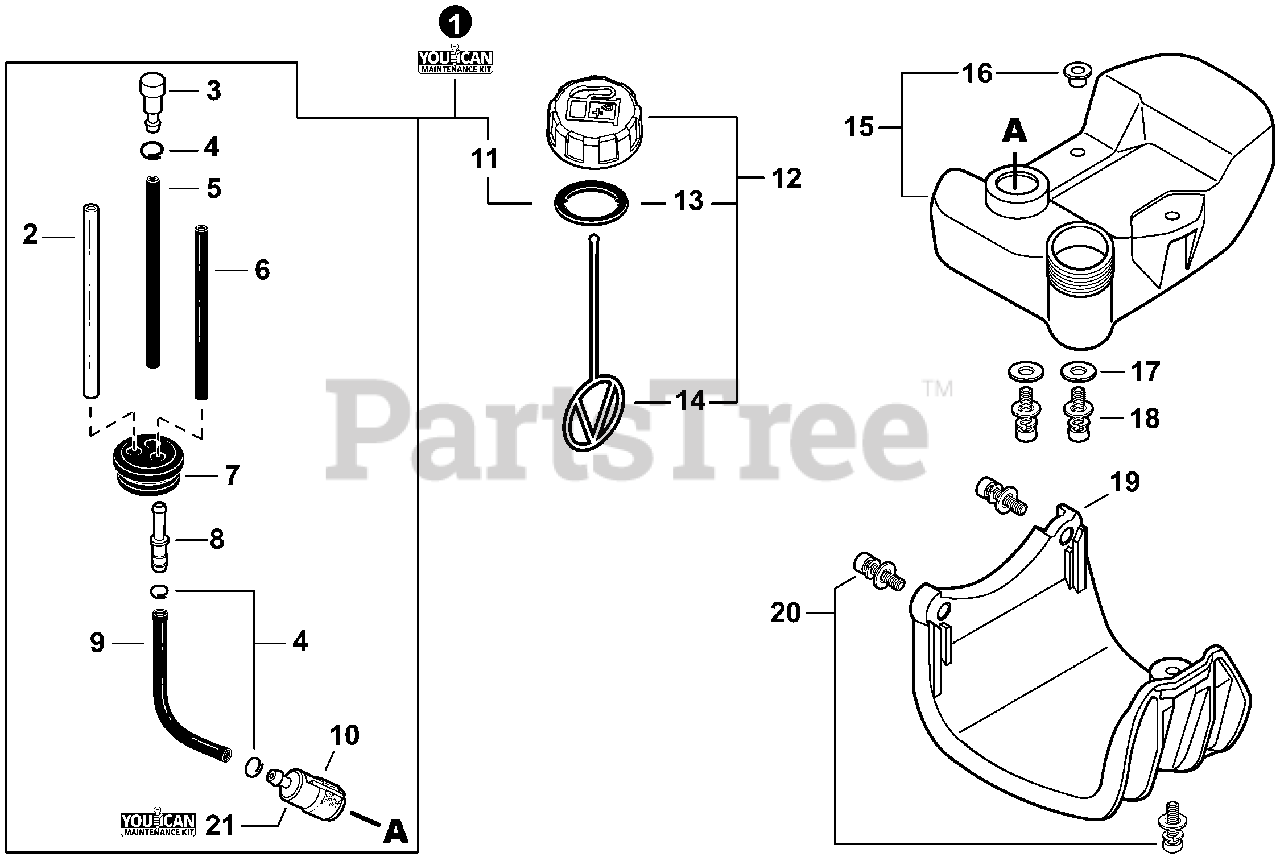

SRM-230 - Echo String Trimmer (SN: U07815001001 - U07815999999) Fuel System Parts Diagram

String Trimmer

Fuel System Parts Diagram

  • Title

1

Echo 90142Y

FUEL SYSTEM KIT - YOUCAN™
(Superseded to Discontinued)

Note: Includes ITEMS 2-11

$

$

Not available

2

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

3

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

4

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

$2.49

$

In Stock, Qty 20+

0

6

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

$3.49

$

In Stock, only 1 left!

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo 43721720760

PIPE, FUEL 3×6×100
(Superseded to 43721720761)

$5.49

$

In Stock, only 1 left!

0

10

Echo A369000460

FILTER, FUEL

$9.49

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

12

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 13-14

$5.99

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

15

Echo A350002320

TANK, FUEL
(Superseded to A350002321)

Note: Includes ITEM 16

$

$

Not available

16

Echo V353000231

COLLAR 5

$3.99

$

Usually ships in 2-4 days

0

17

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo 90016205018

BOLT 5×18

$0.99

$

In Stock, Qty 9

0

19

Echo A175000380

GUARD, FUEL TANK

$14.99

$

Usually ships in 2-4 days

0

20

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

21

Echo 90152Y

TUNE-UP KIT - YOUCAN™

$20.99

$

In Stock, Qty 20+

0
