SRM-230 - Echo String Trimmer (SN: S80613001001 - S80613999999) Intake Parts Diagram

String Trimmer

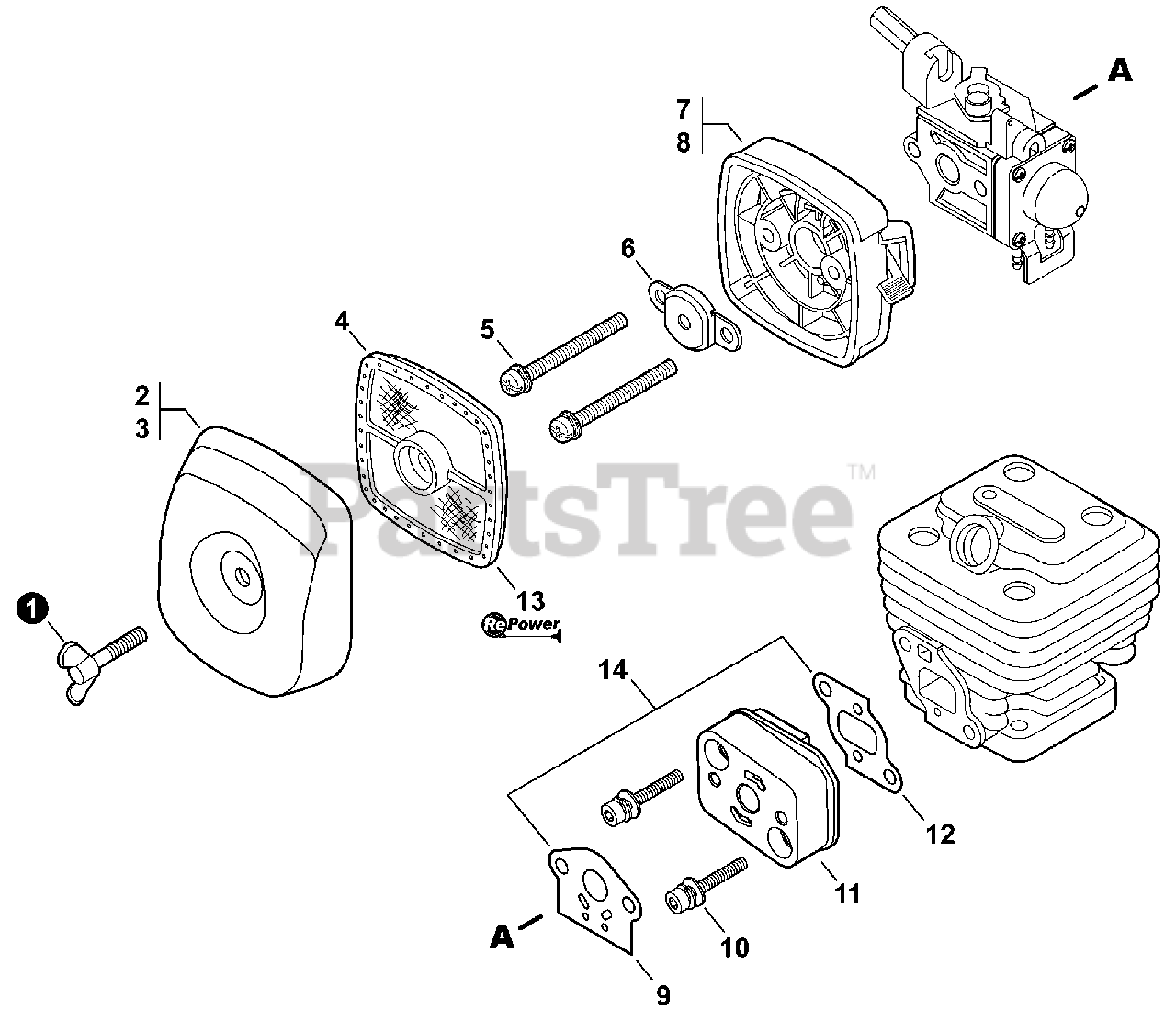

Intake Parts Diagram

  • Title

1

Echo 21041752730

BOLT, WING 5×20

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

4

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$7.49

$

In Stock, Qty 20+

0

5

Echo 90024205060

SCREW 5×60

$0.99

$

In Stock, Qty 12

0

6

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

7

Echo P021000991

CASE, AIR FILTER - GRAY

$9.49

$

In Stock, Qty 20+

0

8

Echo P021004480

CASE, AIR FILTER - BLACK
(Superseded to P021049750)

$9.99

$

In Stock, Qty 20+

0

9

Echo 13001013410

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 20+

0

10

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

11

Echo 13001756431

INSULATOR, INTAKE

$12.99

$

In Stock, only 1 left!

0

12

Echo 13001055930

GASKET, INTAKE

$1.49

$

In Stock, Qty 17

0

13

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 20+

0

14

Echo P021003900

GASKET KIT
(Superseded to Discontinued)

$

$

Not available
