SRM-225 U - Echo Brush Cutter (SN: U01914001001 - U01914999999) Engine Parts Diagram

Brush Cutter

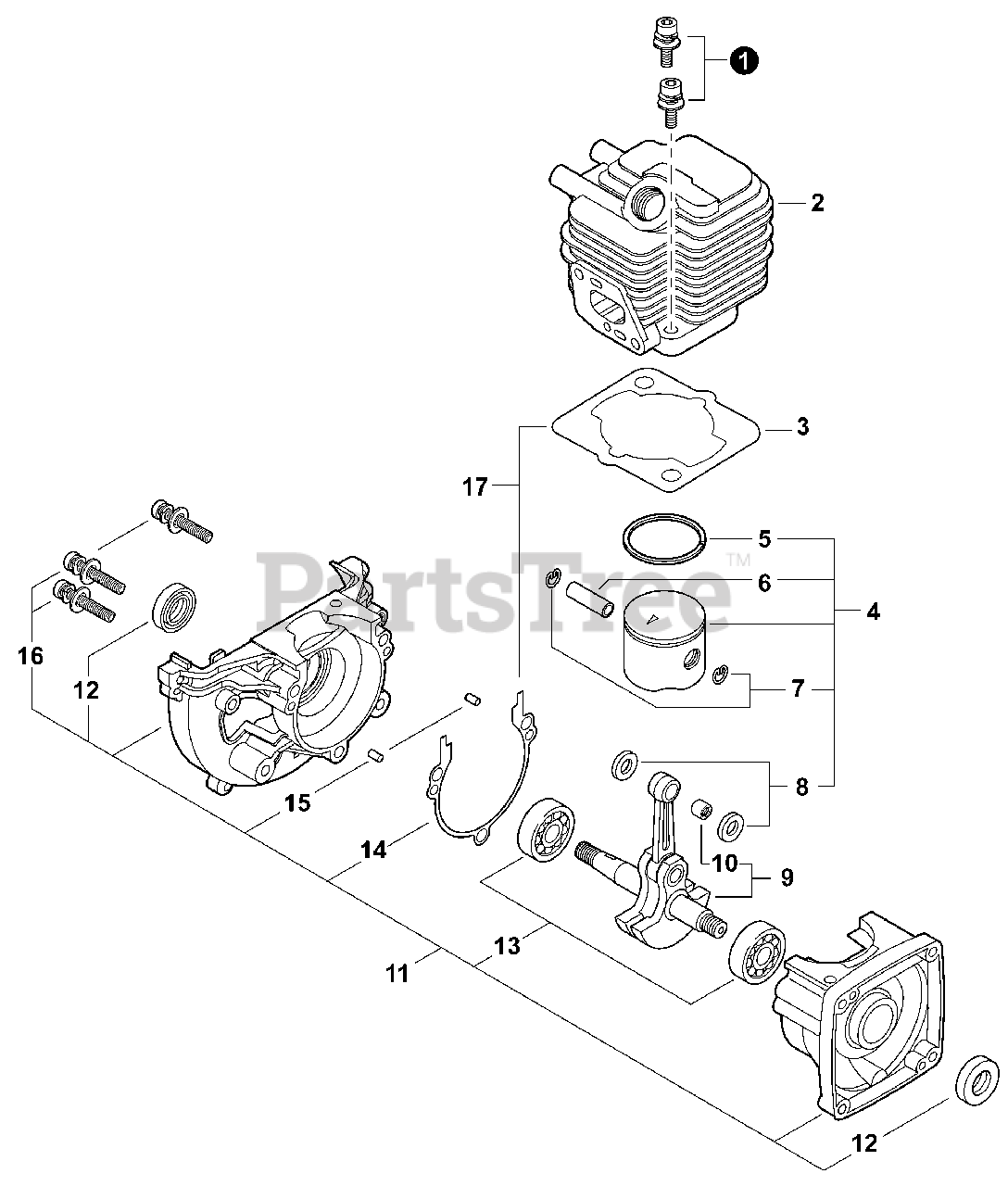

Engine Parts Diagram

  • Title

1

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

2

Echo A130002100

CYLINDER

$88.99

$

Usually ships in 2-4 days

0

3

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, Qty 6

0

4

Echo P021051050

PISTON KIT

Note: Includes ITEMS 5-8

$59.99

$

In Stock, only 2 left!

0

5

Echo A101000090

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON 8

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

8

Echo 10001411520

WASHER, THRUST

$3.49

$

In Stock, only 3 left!

0

9

Echo A011001410

CRANKSHAFT ASSY

Note: Includes ITEM 10

$155.99

$

In Stock, only 1 left!

0

10

Echo V553000060

BEARING, NEEDLE 8

$10.99

$

Usually ships in 2-4 days

0

11

Echo 10020452133

CRANKCASE KIT

Note: Includes ITEMS 12-16

$140.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 11

0

13

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

14

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

15

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

16

Echo 90016205028

BOLT 5×28

$1.99

$

In Stock, Qty 20+

0

17

Echo P021051670

GASKET KIT

$19.99

$

In Stock, Qty 12

0
