SRM-225 U - Echo Brush Cutter (SN: S79111001001 - S79111999999) Carburetor Parts Diagram

Brush Cutter

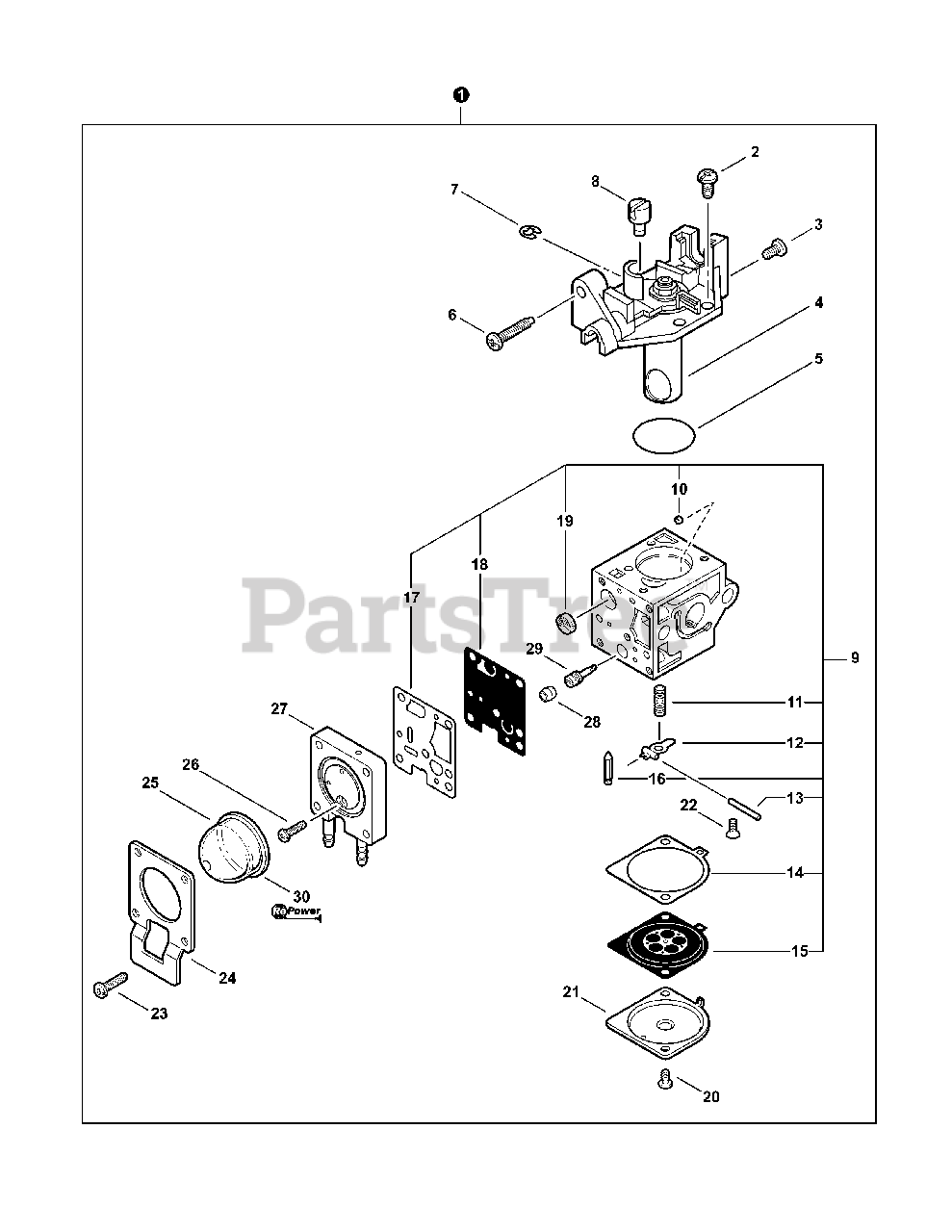

Carburetor Parts Diagram

  • Title
1

Echo A021001690

CARBURETOR -- RB-K93
(Superseded to A021001691)

Note: Includes Item 2 - 29

$69.99

$

In Stock, Qty 20+

0

$2.49

$

In Stock, Qty 12

0

$0.99

$

In Stock, Qty 8

0

4

Echo P005002050

ROTOR COVER ASSY

$29.99

$

In Stock, Qty 6

0

5

$3.49

$

In Stock, only 4 left!

0

6

Echo P005000100

SCREW, IDLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

7

Echo P005000190

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

8

$4.99

$

In Stock, only 1 left!

0

9

Echo P005001670

REPAIR KIT

Note: Includes Items 10 - 19

$20.99

$

In Stock, only 2 left!

0

10

Echo P005001000

GUIDE, ROLLER

$1.99

$

In Stock, Qty 5

0

11

------------------

SPRING, METERING LEVER

$

$

Not available

12

------------------

LEVER, METERING

$

$

Not available

13

------------------

PIN, METERING LEVER

$

$

Not available

14

------------------

GASKET, DIAPHRAGM

$

$

Not available

15

------------------

DIAPHRAGM, METERING

$

$

Not available

16

------------------

VALVE, INLET NEEDLE

$

$

Not available

17

------------------

GASKET, PUMP

$

$

Not available

18

------------------

DIAPHRAGM, PUMP

$

$

Not available

19

------------------

STRAINER

$

$

Not available

20

$0.99

$

In Stock, Qty 8

0

21

Echo 12534252130

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

22

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

23

Echo P005001900

SCREW, PURGE BULB RETAINER

$0.99

$

In Stock, Qty 20+

0

24

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

25

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

26

Echo P005000270

SCREW, PURGE BASE

$1.49

$

In Stock, Qty 20+

0

27

Echo P005001890

BASE, PURGE

$18.99

$

In Stock, Qty 16

0

28

$1.49

$

In Stock, Qty 20+

0

29

Echo P005001260

NEEDLE - HIGH SPEED

$5.99

$

In Stock, only 1 left!

0

30

Echo 90127

RePower FUEL SYSTEM KIT
(Superseded to 90127Y)

$30.99

$

Usually ships in 2-4 days

0
