SRM-225 i - Echo String Trimmer (SN: T49114001001 - T49114999999) Starter Parts Diagram

String Trimmer

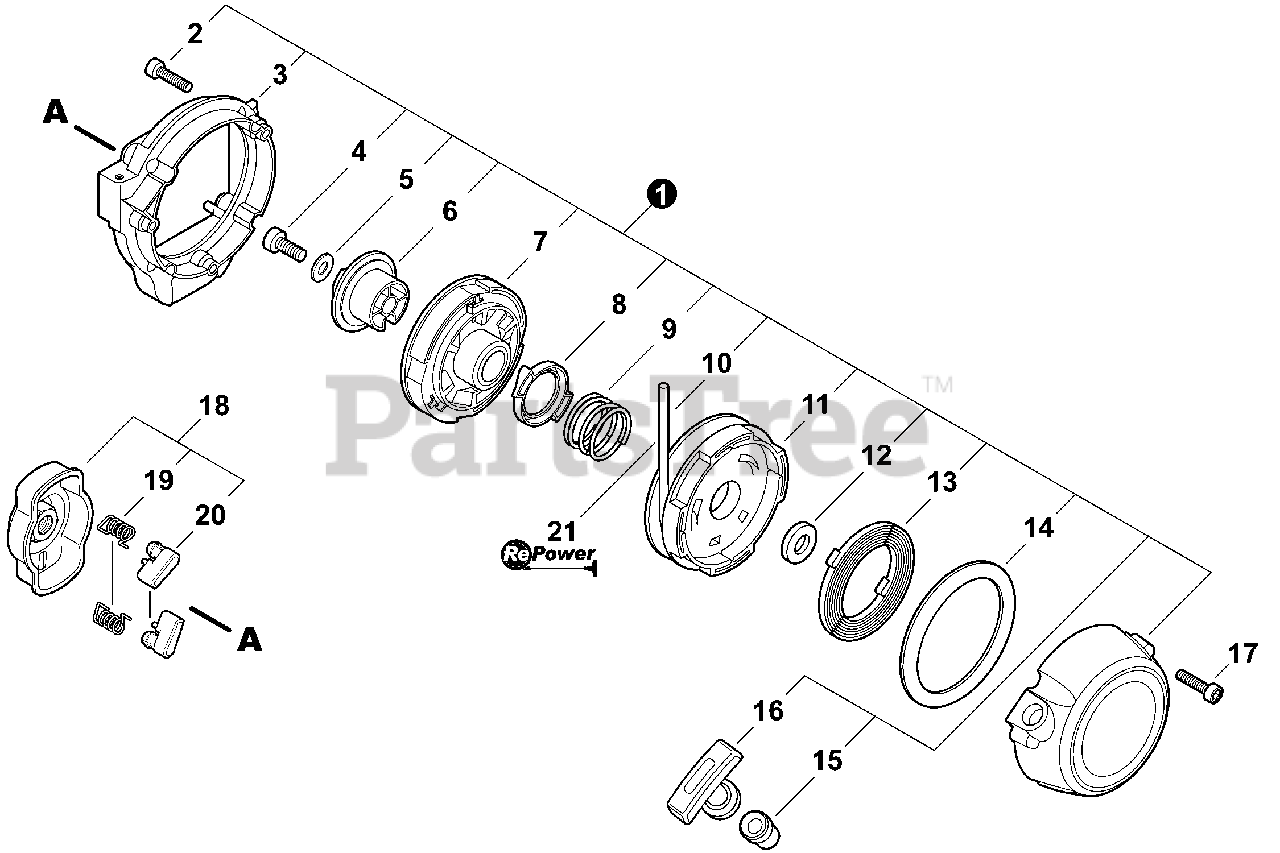

Starter Parts Diagram

  • Title

1

Echo A051001390

STARTER ASSY, RECOIL
(Superseded to A051003320)

Note: Includes ITEMS 2-16

$88.99

$

Usually ships in 2-4 days

0

2

Echo V804000010

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 19

0

3

Echo V376001080

BRACKET, STARTER

$11.99

$

Usually ships in 2-4 days

0

4

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

5

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo A520000070

CAM

$6.99

$

Usually ships in 2-4 days

0

7

Echo P021015540

CLUTCH ASSY

$59.99

$

Usually ships in 2-4 days

0

8

Echo A514000060

PAWL

$3.49

$

Usually ships in 2-4 days

0

9

Echo V450000440

SPRING

$3.49

$

Usually ships in 2-4 days

0

10

Echo 17722656030

ROPE, STARTER 3×900

$5.99

$

Usually ships in 2-4 days

0

11

Echo A506000060

REEL

$13.99

$

Usually ships in 2-4 days

0

12

Echo V355000080

COLLAR 8

$1.99

$

Usually ships in 2-4 days

0

13

Echo A504000001

SPRING, RECOIL

$15.99

$

Usually ships in 2-4 days

0

14

Echo A503000020

PLATE, STARTER

$3.99

$

Usually ships in 2-4 days

0

15

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

16

Echo A511000000

GRIP, STARTER

$5.49

$

Usually ships in 2-4 days

0

17

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0

18

Echo 17720212220

PAWL ASSY, STARTER

Note: Includes ITEMS 19-20

$16.99

$

In Stock, Qty 18

0

19

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

20

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

21

Echo 99944440000

ROPE, STARTER - REPOWER BULK Ø3

$29.99

$

In Stock, Qty 9

0
