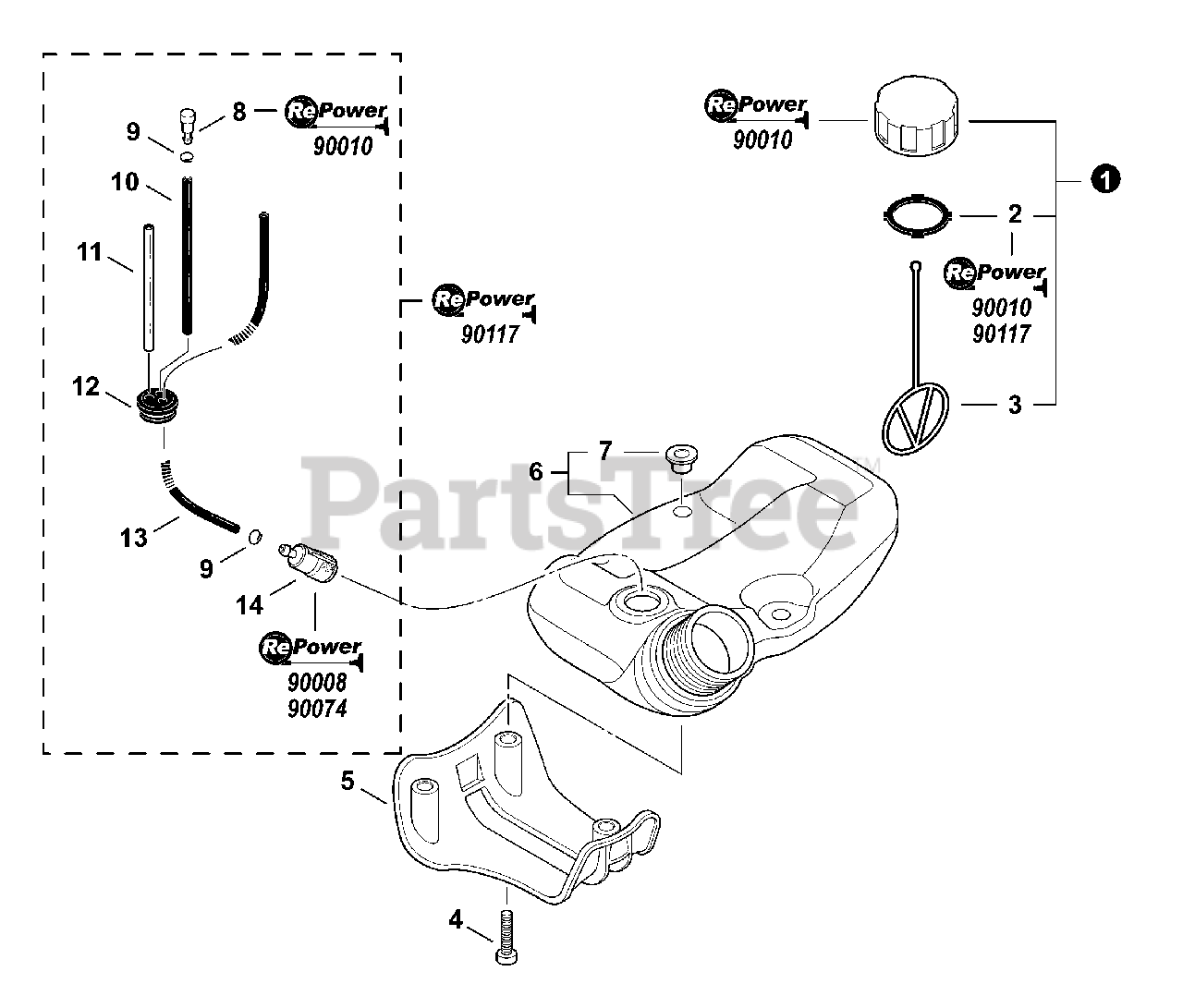

SRM-225 i - Echo String Trimmer (SN: S08712001001 - S08712999999) Fuel System S/N: S08712001001 - S08712016797 Parts Diagram

String Trimmer

Fuel System S/N: S08712001001 - S08712016797 Parts Diagram

  • Title

1

Echo P021012210

CAP ASSY
(Superseded to P021012211)

Note: Includes Items 2 - 3

$5.99

$

In Stock, only 1 left!

0

2

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

3

Echo A365000060

CONNECTOR, CAP

$1.49

$

In Stock, Qty 10

0

4

Echo V805000170

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0

5

Echo A175000070

GUARD, FUEL TANK

$4.99

$

Usually ships in 2-4 days

0

6

Echo A350000780

FUEL TANK ASSY

Note: Includes Item 7

$21.99

$

In Stock, only 3 left!

0

7

Echo V353000231

SPACER

$3.99

$

Usually ships in 2-4 days

0

8

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

9

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo V471001210

PIPE - 3×5×90 -- BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

11

Echo 13201256030

PIPE - 3×6×80 -- CLEAR

$3.49

$

In Stock, Qty 20+

0

12

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

13

Echo V471001230

PIPE - 3×5×210 -- BLACK
(Superseded to V471001231)

$5.99

$

In Stock, Qty 5

0

14

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0
