SRM-225 - Echo String Trimmer (SN: T98314001001 - T98314999999) Gear Case Parts Diagram

String Trimmer

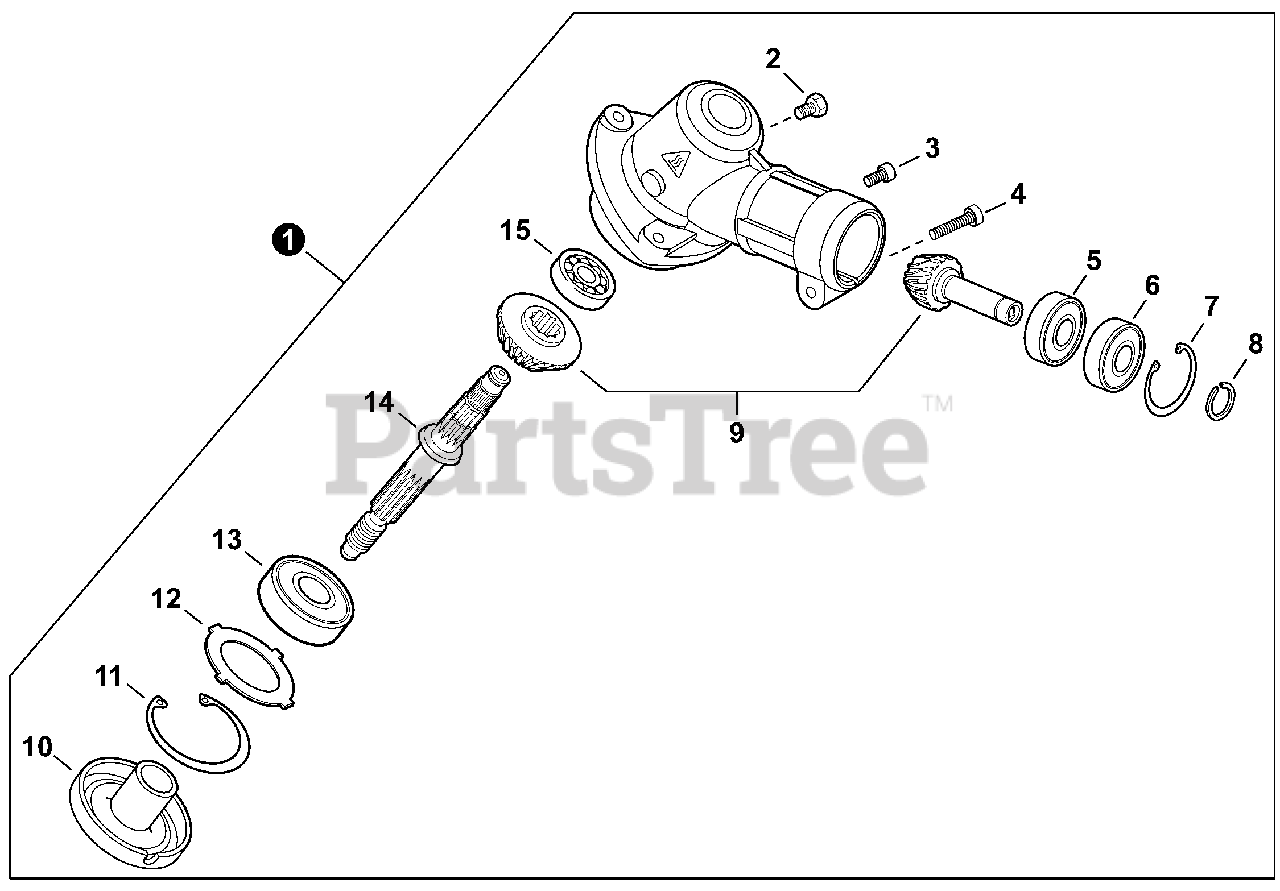

Gear Case Parts Diagram

  • Title

1

Echo P021051520

GEAR CASE ASSY

Note: Includes ITEMS 2-15

$103.99

$

In Stock, only 1 left!

0

2

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 6

0

3

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

4

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

5

Echo 9411000609

BEARING, BALL

$10.99

$

Usually ships in 2-4 days

0

6

Echo 9411100609

BEARING, BALL

$10.99

$

Usually ships in 2-4 days

0

7

Echo 90070200025

RING, SNAP Ø25

$1.99

$

In Stock, Qty 5

0

8

Echo 90070100009

RING, SNAP Ø9

$

$

Not available

9

Echo V000000250

GEAR SET

$69.99

$

In Stock, only 1 left!

0

10

Echo C535000210

PLATE, ADAPTOR - UPPER

$12.99

$

Usually ships in 2-4 days

0

11

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 13

0

12

Echo V340000180

WASHER

$1.49

$

In Stock, only 4 left!

0

13

Echo 90081206201

BEARING, BALL 6201

$12.99

$

In Stock, only 2 left!

0

14

Echo C534001090

SHAFT, GEAR

$50.99

$

In Stock, only 2 left!

0

15

Echo 9411000629

BEARING, BALL

$10.99

$

Usually ships in 2-4 days

0
