SRM-225 - Echo String Trimmer (SN: T79813001001 - T79813999999) Gear Case Parts Diagram

String Trimmer

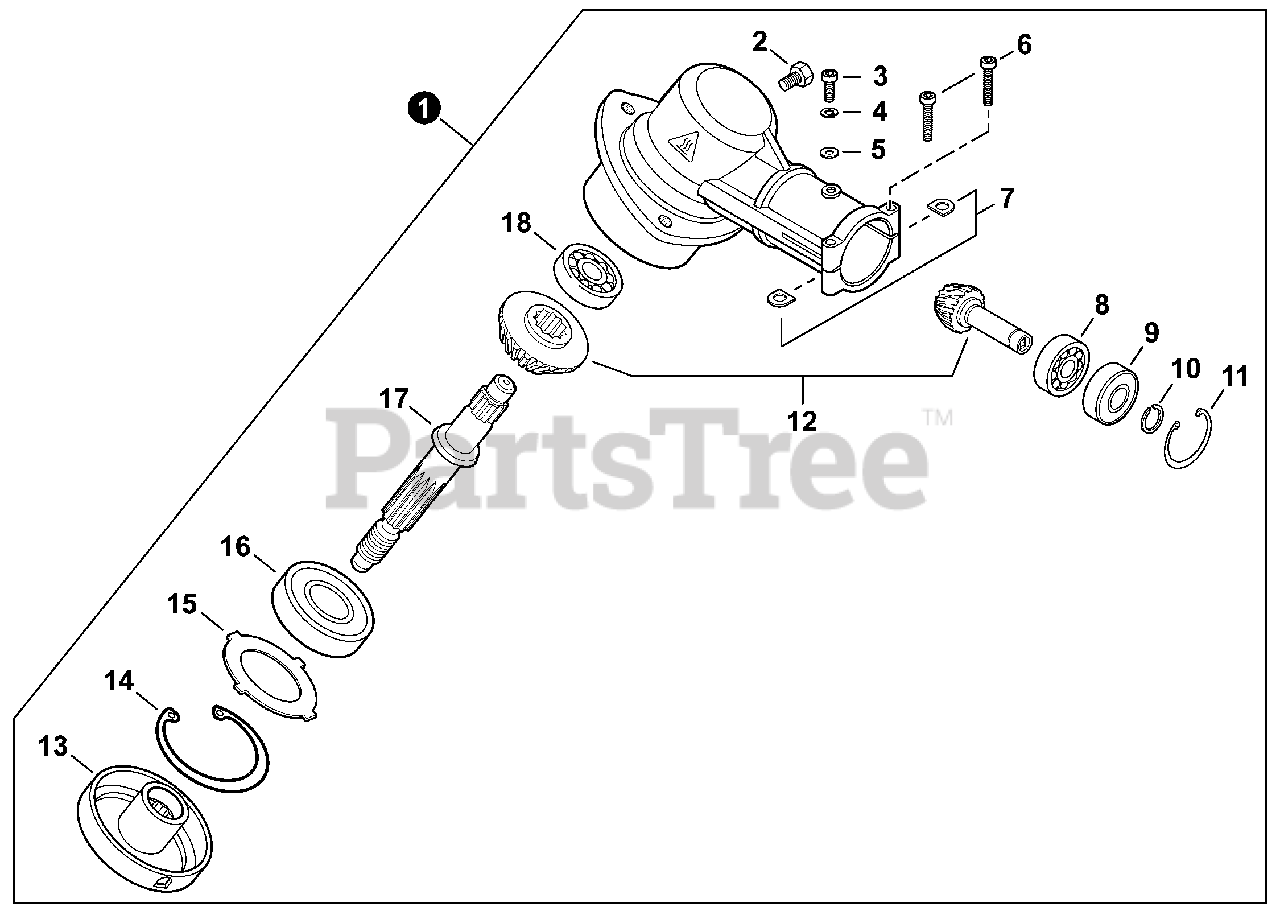

Gear Case Parts Diagram

  • Title

1

Echo P021015611

GEAR CASE ASSY

Note: Includes ITEMS 2-18

$173.99

$

In Stock, only 1 left!

0

2

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 6

0

3

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 10

0

5

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

7

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 10

0

8

Echo 90085506900

BEARING, BALL 6900

$18.99

$

In Stock, Qty 5

0

9

Echo 90085806900

BEARING, BALL 6900Z

$22.99

$

In Stock, Qty 6

0

10

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

11

Echo 90070200022

RING, SNAP Ø22

$1.99

$

In Stock, Qty 5

0

12

Echo 61030044830

GEAR SET

$88.99

$

Usually ships in 2-4 days

0

13

Echo C535000210

PLATE, ADAPTOR - UPPER

$12.99

$

In Stock, only 3 left!

0

14

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 14

0

15

Echo V340000180

WASHER

$1.49

$

In Stock, Qty 5

0

16

Echo 90081206201

BEARING, BALL 6201

$12.99

$

In Stock, only 3 left!

0

17

Echo C534000270

SHAFT, GEAR

$67.99

$

In Stock, Qty 5

0

18

Echo 90080000609

BEARING, BALL 609

$9.99

$

In Stock, Qty 11

0
