SRM-225 - Echo String Trimmer (SN: S89312001001 - S89312999999) Debris Shield Parts Diagram

String Trimmer

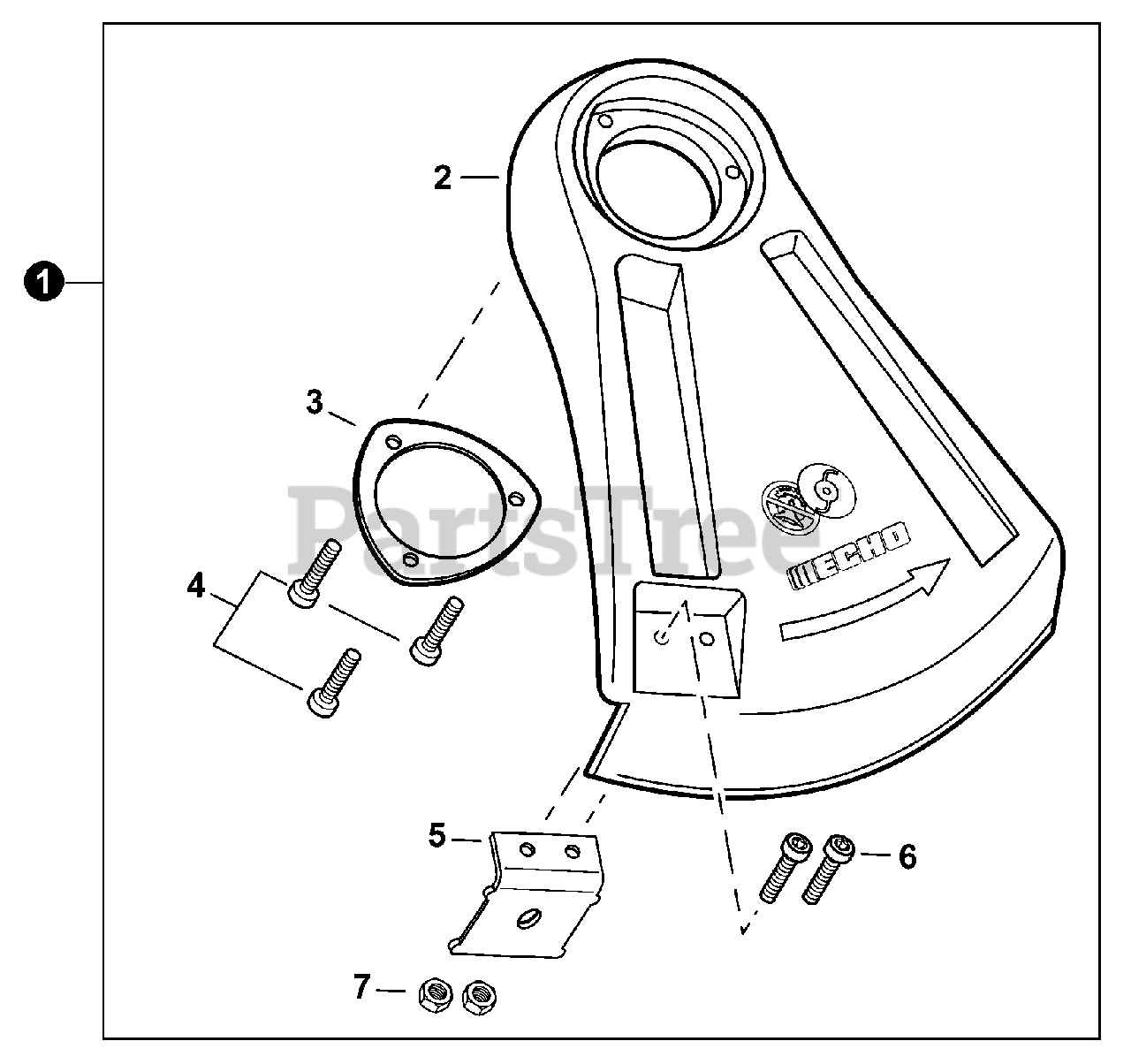

Debris Shield Parts Diagram

  • Title
1

Echo P021015660

DEBRIS SHIELD KIT
(Superseded to P021015661)

Note: Includes ITEMS 2-7

$

$

Not available

2

Echo C550000032

SHIELD, DEBRIS PLASTIC
(Superseded to C550000830)

$10.99

$

In Stock, Qty 19

0

3

Echo C552000110

PLATE, SHIELD Ø49.5 MM
(Superseded to C552000240)

$2.49

$

In Stock, Qty 13

0

4

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

5

Echo 69901644330

CUTTER, LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

6

Echo V835000010

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 20+

0
