SRM-2201 - Echo String Trimmer Clutch, Ignition, Starter Parts Diagram

String Trimmer

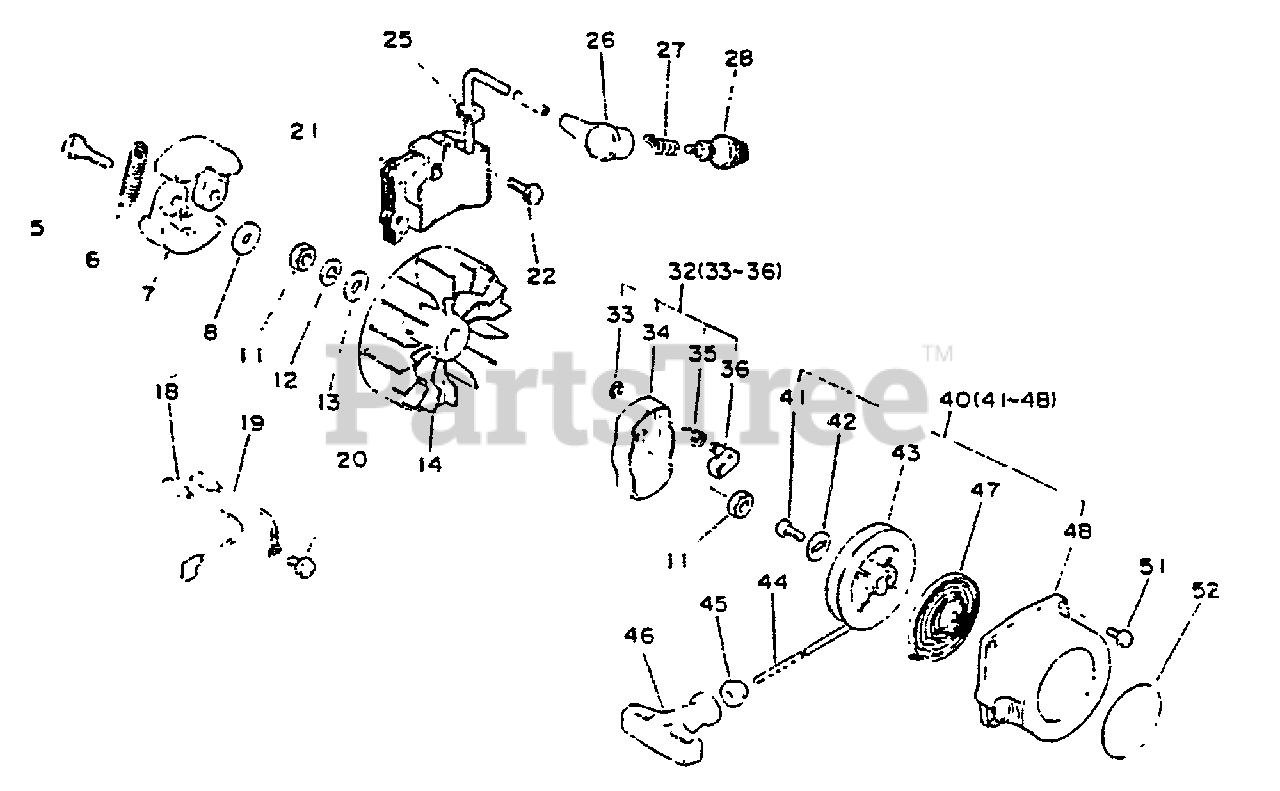

Clutch, Ignition, Starter Parts Diagram

  • Title
5

Echo 17504622332

BOLT, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

6

Echo 17501805535

SPRING, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

7

Echo 17500905531

SHOE, CLUTCH
(Superseded to 17500905532)

$21.99

$

In Stock, only 2 left!

0

8

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 20+

0

11

$0.99

$

In Stock, only 2 left!

0

12

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

14

Echo 15680128230

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

18

Echo 15663040630

LEAD
(Superseded to Discontinued)

$

$

Not available

19

Echo 15663540630

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

20

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 15660140630

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

22

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

25

$1.49

$

In Stock, only 3 left!

0

26

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 8

0

27

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

28

Echo 15901713930

SPARK PLUG -- CJ-7Y
(Superseded to 15901010630)

$3.49

$

In Stock, Qty 20+

0

32

Echo A052000030

STARTER PAWL ASSY

$12.99

$

In Stock, Qty 20+

0

33

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

34

Echo 17721040630

CATCHER, PAWL
(Superseded to 17720240630)

$12.99

$

In Stock, Qty 20+

0

35

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

36

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

40

Echo 17720040630

STARTER ASSY
(Superseded to 17720049130)

$

$

Not available

41

$3.99

$

In Stock, Qty 14

0

42

Echo 17721440630

WASHER
(Superseded to P022022280)

$0.99

$

In Stock, Qty 6

0

43

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

44

Echo 17722640630

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

Usually ships in 2-4 days

0

45

Echo 17722705530

GUIDE, ROPE

$3.99

$

In Stock, Qty 10

0

46

Echo 17722805530

GRIP, STARTER
(Superseded to 17722806530)

$4.99

$

In Stock, Qty 20+

0

47

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 12

0

48

Echo 17723240630

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

51

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

52

Echo 89011844330

LABEL - ECHO
(Superseded to 89011848830)

$0.99

$

In Stock, Qty 8

0
