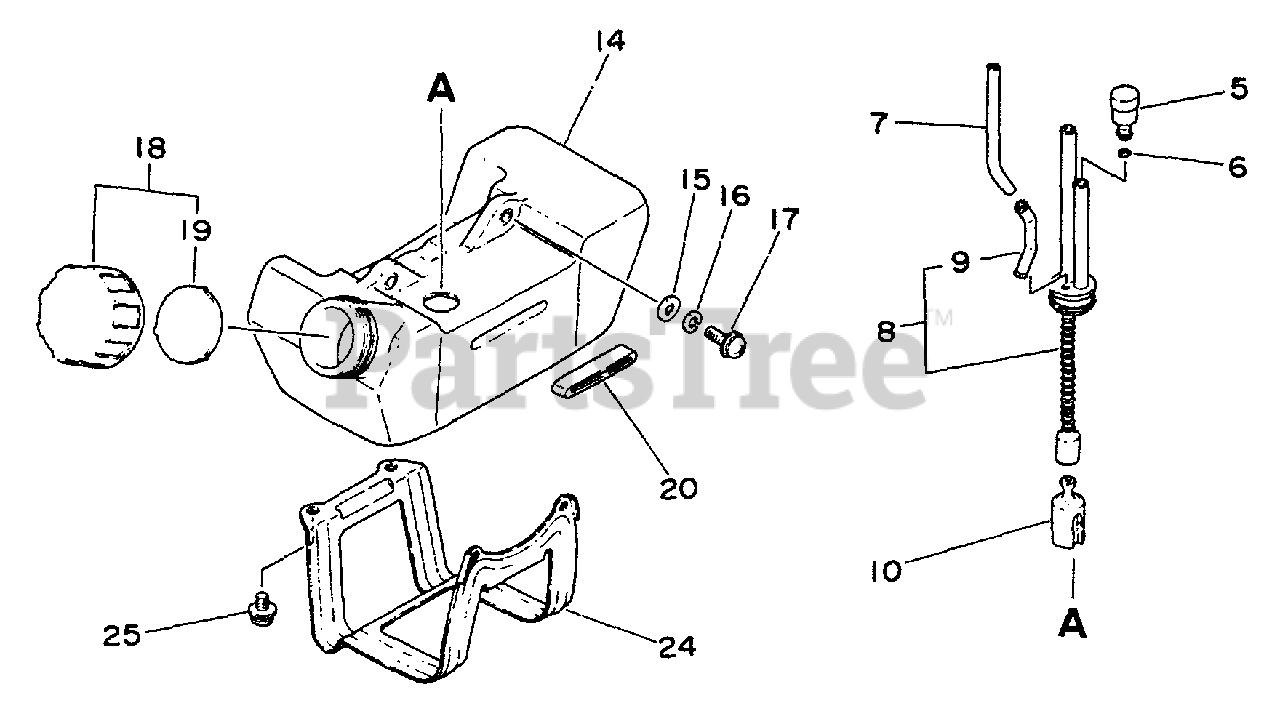

SRM-2200 - Echo String Trimmer Fuel System Parts Diagram

String Trimmer

Fuel System Parts Diagram

  • Title

5

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 16

0

6

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

7

Echo 13201040830

PIPE - 3X6X75 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 20+

0

8

Echo 13200240630

FUEL PIPE KIT
(Superseded to Discontinued)

$

$

Not available

9

Echo 13202140630

CONNECTOR, PIPE

$5.99

$

In Stock, only 1 left!

0

10

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

14

Echo 13100540630

TANK, FUEL
(Superseded to 13100540530)

$

$

Not available

15

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

17

Echo 90022005016

SCREW - 5X16

$0.99

$

In Stock, Qty 8

0

18

Echo 13100440630

CAP ASSY
(Superseded to 13100440930)

$7.49

$

In Stock, only 4 left!

0

19

Echo 13101640630

GASKET, CAP
(Superseded to Discontinued)

$

$

Not available

20

Echo 13192040630

CUSHION, FUEL TANK

$1.99

$

Usually ships in 2-4 days

0

24

Echo 30511040630

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

25

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0
