SRM-2200 - Echo String Trimmer Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing Parts Diagram

String Trimmer

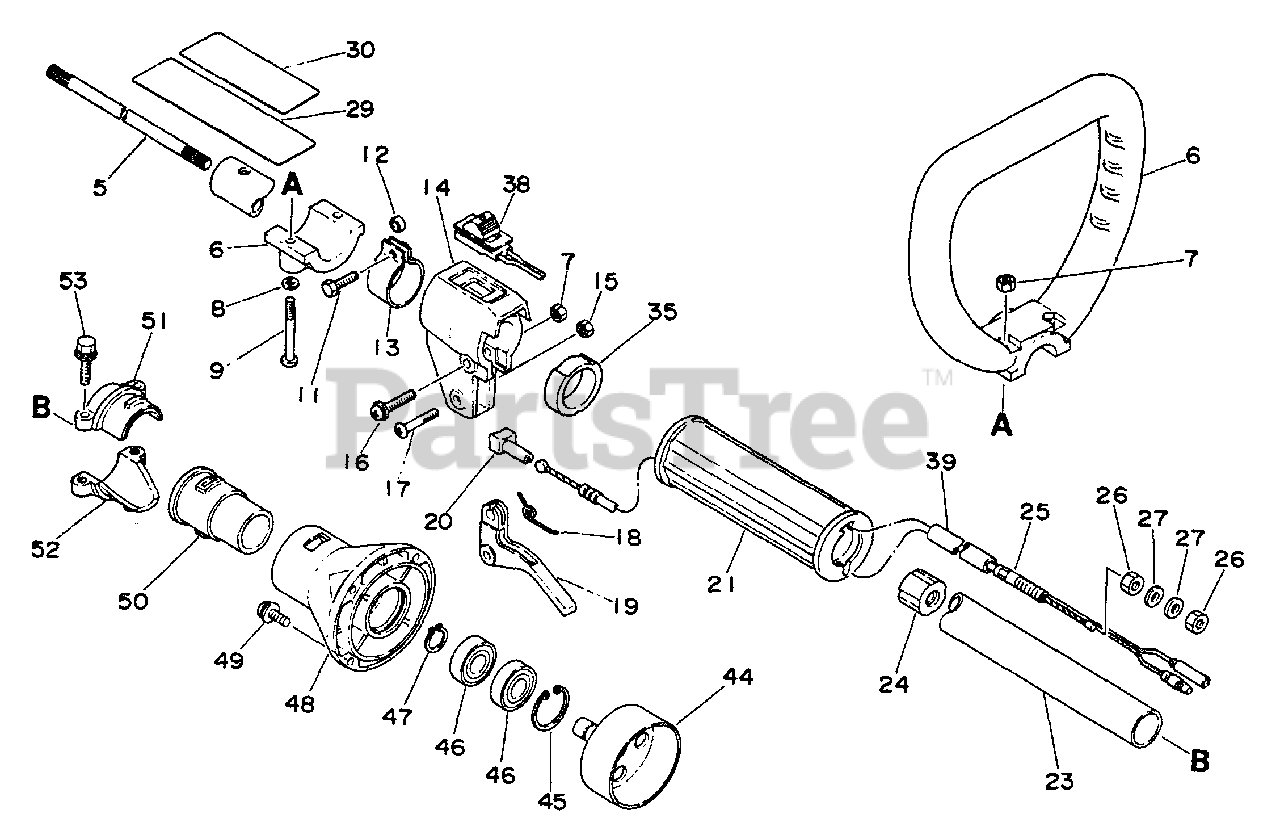

Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing Parts Diagram

  • Title
5

Echo 61001827830

DRIVESHAFT

$48.99

$

Usually ships in 2-4 days

0

6

Echo 35120108930

LOOP HANDLE ASSY

$37.99

$

Usually ships in 2-4 days

0

7

$0.99

$

In Stock, Qty 20+

0

8

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 90022005040

SCREW - 5X40

$0.99

$

In Stock, Qty 12

0

11

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

12

$1.49

$

In Stock, Qty 15

0

13

$4.99

$

In Stock, only 2 left!

0

14

Echo 17802424330

BRACKET, THROTTLE CONTROL
(Superseded to 17802441930)

$

$

Not available

15

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

16

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

17

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

18

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

19

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.49

$

In Stock, Qty 20+

0

20

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 15

0

21

Echo 35101224330

GRIP, HANDLE

$10.99

$

Usually ships in 2-4 days

0

23

Echo 61020623030

PIPE, MAIN

$128.99

$

Usually ships in 2-4 days

0

24

Echo 61010527830

STOPPER
(Superseded to Discontinued)

$

$

Not available

25

Echo 17800140630

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

26

$0.99

$

In Stock, only 1 left!

0

27

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

29

Echo 89016024230

LABEL - CAUTION
(Superseded to 89016044730)

$3.99

$

Usually ships in 2-4 days

0

30

Echo 89017709130

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

35

$2.49

$

Usually ships in 2-4 days

0

38

Echo 16340040630

IGNITION SWITCH ASSY
(Superseded to 16340049130)

$

$

Not available

39

Echo 17812740630

TUBE - VINYL
(Superseded to Discontinued)

$

$

Not available

44

Echo 17500540830

DRUM, CLUTCH

$54.99

$

Usually ships in 2-4 days

0

45

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

46

Echo 90080806001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 4 left!

0

47

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

48

Echo 61020540830

CASE, CLUTCH - ORANGE
(Superseded to 61022344730)

$56.99

$

Usually ships in 2-4 days

0

49

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

50

$7.99

$

In Stock, only 1 left!

0

51

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

52

Echo 61092327432

CLAMP, MAIN PIPE

$6.49

$

Usually ships in 2-4 days

0

53

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0
