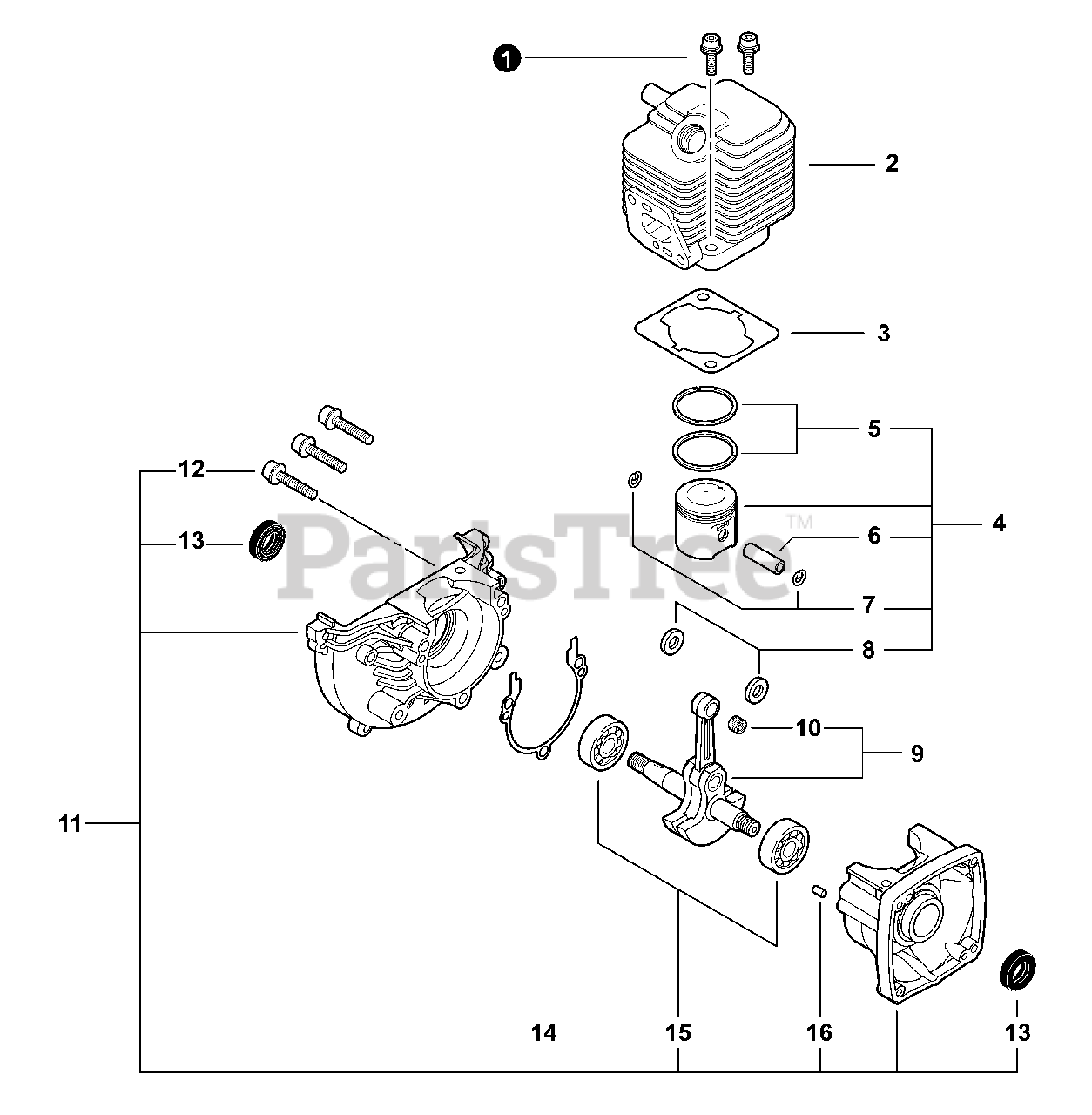

SRM-22 GESU - Echo Brush Cutter (SN: S89720001001 - S89720999999) Engine Parts Diagram

Brush Cutter

Engine Parts Diagram

  • Title

1

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

2

Echo A130000012

CYLINDER

$116.99

$

Usually ships in 2-4 days

0

3

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, only 4 left!

0

4

Echo P021009950

PISTON KIT

Note: Includes Items 5-8

$54.99

$

Usually ships in 2-4 days

0

5

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON 8

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 7

0

8

Echo V306000150

WASHER 8.2×13×0.8

$2.49

$

Usually ships in 2-4 days

0

9

Echo A011000002

CRANKSHAFT ASSY

Note: Includes Item 10

$147.99

$

Usually ships in 2-4 days

0

10

Echo V553000010

BEARING, NEEDLE 8

$9.99

$

In Stock, only 2 left!

0

11

Echo 10020452133

CRANKCASE KIT

Note: Includes Items 12-16

$140.99

$

Usually ships in 2-4 days

0

12

Echo 90016205028

BOLT 5×28

$1.99

$

In Stock, Qty 19

0

13

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 6

0

14

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

15

Echo 9409536201

BEARING, BALL
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

16

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0
