SRM-22 GESU - Echo Brush Cutter (SN: C30226001001 - C30226999999) Fuel System Parts Diagram

Brush Cutter

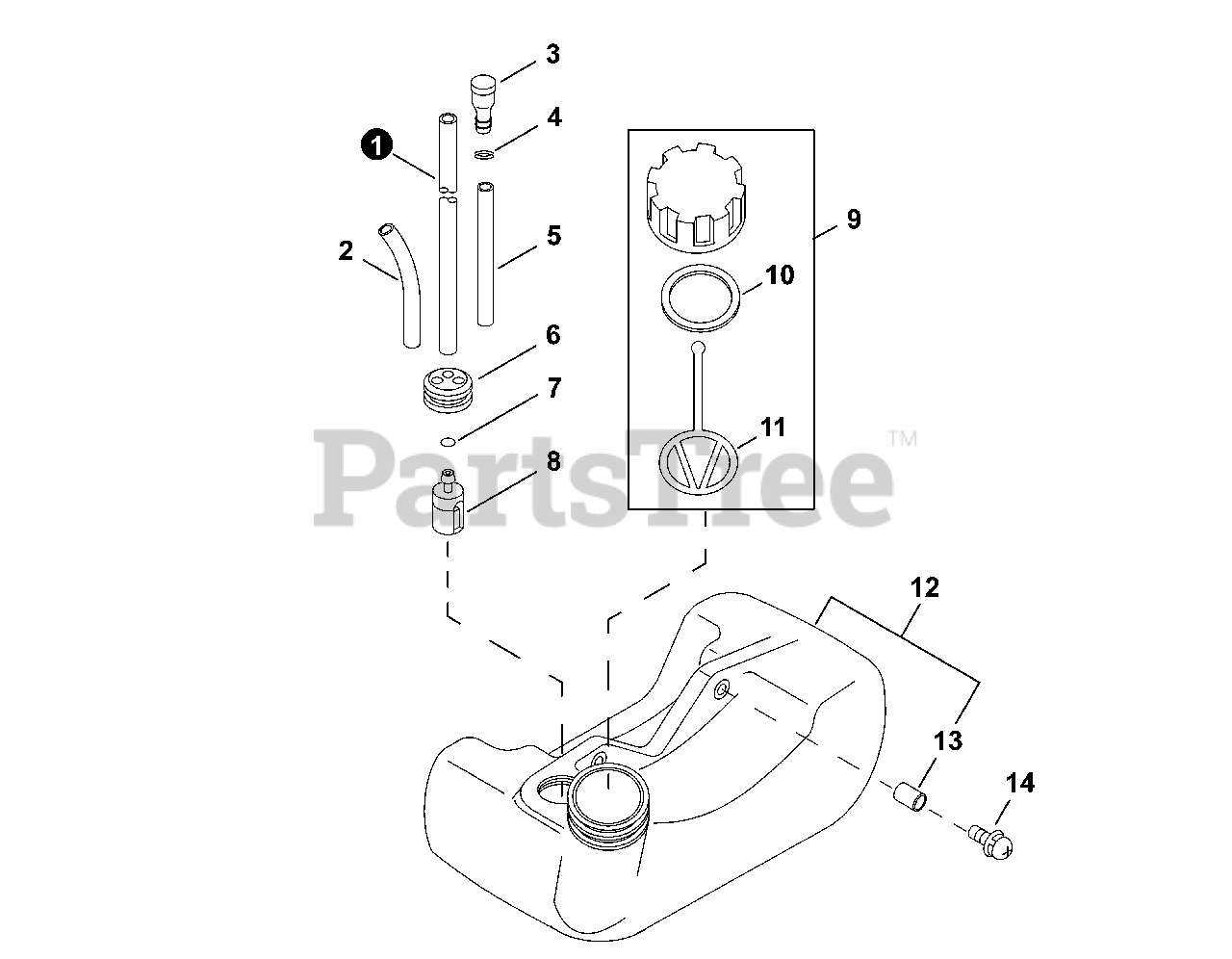

Fuel System Parts Diagram

  • Title

1

Echo V471001190

PIPE, FUEL 3×5×180
(Superseded to V471001191)

$1.49

$

In Stock, Qty 20+

0

2

Echo 13271750430

PIPE, FUEL RETURN 3×6×70

$1.99

$

In Stock, Qty 20+

0

3

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 14

0

4

Echo 13011100530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

5

Echo V471001200

PIPE, FUEL 3×5×70 BLACK
(Superseded to V471001201)

$1.99

$

In Stock, Qty 20+

0

6

Echo 13211546730

GROMMET, FUEL Ø5

$1.99

$

In Stock, Qty 20+

0

7

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 6

0

8

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

9

Echo P021012210

CAP ASSY, FUEL
(Superseded to P021012211)

Note: Includes Items 10-11

$5.99

$

Usually ships in 2-4 days

0

10

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

11

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

12

Echo A350001841

TANK, FUEL
(Superseded to A350000032)

Note: Includes Item 13

$25.99

$

Usually ships in 2-4 days

0

13

Echo 13104528230

SPACER 6.2×7.8×6

$1.49

$

In Stock, Qty 20+

0

14

Echo 90024305016

SCREW 5×16

$0.99

$

Usually ships in 2-4 days

0
