SRM-22 GES - Echo String Trimmer (SN: S55822001001 - S55822999999) Fuel System Parts Diagram

String Trimmer

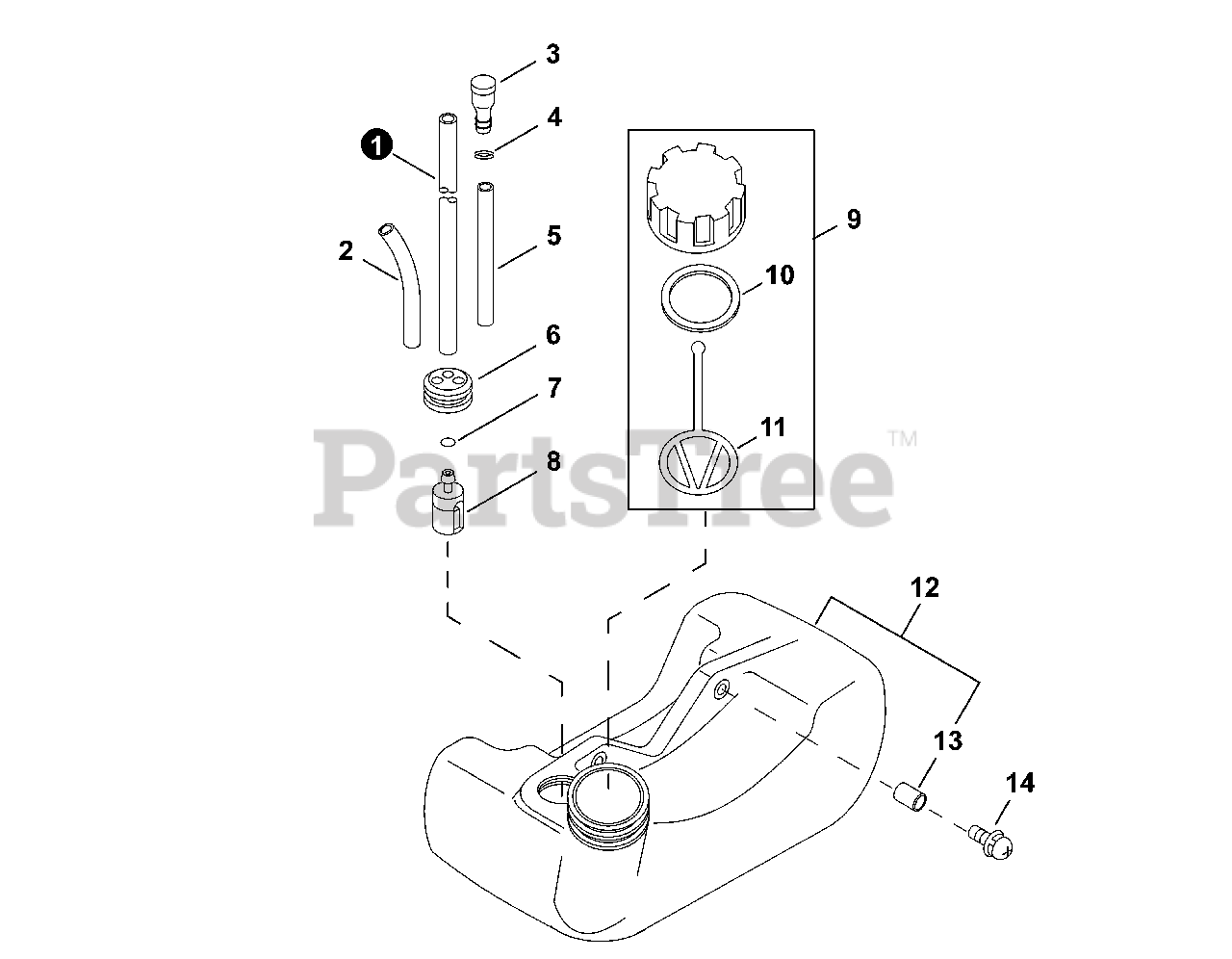

Fuel System Parts Diagram

  • Title

1

Echo V471-001190

PIPE, FUEL

$

$

Currently unavailable

2

Echo 13271750430

PIPE, FUEL RETURN 3x6x70

$1.99

$

In Stock, Qty 20+

0

3

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

4

Echo 13011100530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

5

Echo V471-001200

PIPE, FUEL

$

$

Currently unavailable

6

Echo 13211546730

GROMMET, FUEL 5

$1.99

$

In Stock, Qty 19

0

7

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0

8

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

9

Echo P021012210

CAP ASSY, FUEL
(Superseded to P021012211)

Note: Includes Items 10-11

$5.99

$

In Stock, only 1 left!

0

10

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

11

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

12

Echo A350001841

TANK, FUEL
(Superseded to A350000032)

Note: Includes Item 13

$25.99

$

Usually ships in 2-4 days

0

13

Echo 13104528230

SPACER 6.2x7.8x6

$1.49

$

In Stock, Qty 20+

0

14

Echo 90024305016

SCREW 5x16

$0.99

$

Usually ships in 2-4 days

0
