SRM-22 GES - Echo String Trimmer (SN: S55822001001 - S55822999999) Control Handle Parts Diagram

String Trimmer

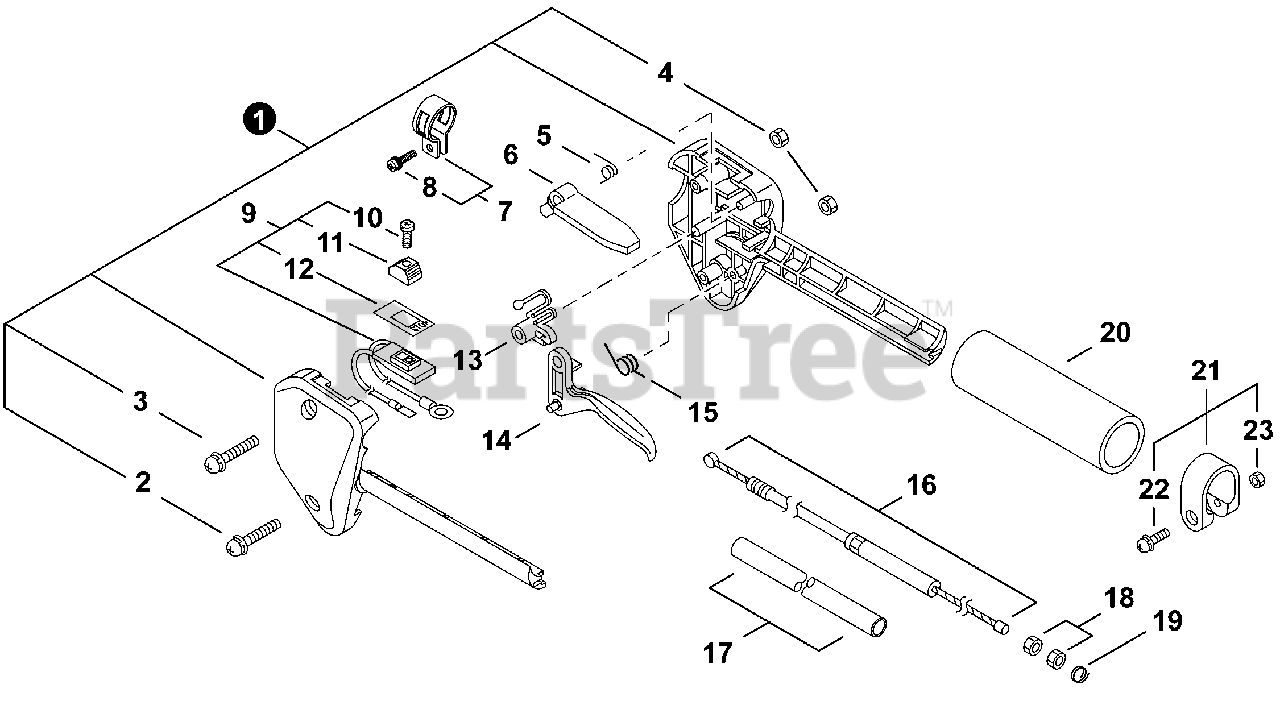

Control Handle Parts Diagram

  • Title

1

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes Items 2-4

$4.99

$

In Stock, only 1 left!

0

2

Echo 90024205025

SCREW 5x25

$0.99

$

In Stock, Qty 20+

0

3

Echo 90024205035

SCREW 5x35

$0.99

$

In Stock, Qty 20+

0

4

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

5

Echo 17801352630

SPRING, TORSION

$2.49

$

In Stock, Qty 10

0

6

Echo 17809052632

LEVER, THROTTLE LOCKOUT

$2.49

$

In Stock, Qty 20+

0

7

Echo 30120029431

CLAMP KIT

Note: Includes Item 8

$9.49

$

In Stock, only 1 left!

0

8

Echo 90024205014

SCREW 5x14

$0.99

$

In Stock, Qty 20+

0

9

Echo A440000651

SWITCH, ON-OFF

Note: Includes Items 10-12

$11.99

$

Usually ships in 2-4 days

0

10

Echo 9154503010

SCREW 3x10

$0.99

$

In Stock, Qty 20+

0

11

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

12

Echo 89015712330

LABEL - SWITCH

$3.49

$

In Stock, Qty 13

0

13

Echo 17801252630

LOCKOUT, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

14

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

15

Echo 17804342230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

16

Echo V430001520

CABLE, THROTTLE 320x77.5

$10.99

$

Usually ships in 2-4 days

0

17

Echo 17812724430

PIPE, 10x11x180

$0.99

$

Usually ships in 2-4 days

0

18

Echo 90050200006

NUT M6

$0.99

$

In Stock, only 3 left!

0

19

Echo V490000440

CLIP

$2.49

$

Usually ships in 2-4 days

0

20

Echo C403000140

GRIP, HANDLE

$9.49

$

Usually ships in 2-4 days

0

21

Echo 61027252130

CLAMP KIT

Note: Includes Items 22-23

$9.99

$

In Stock, only 1 left!

0

22

Echo 90024205028

SCREW 5x28

$0.99

$

In Stock, Qty 7

0

23

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0
