SRM-22 GES - Echo String Trimmer (SN: S55822001001 - S55822999999) Carburetor Parts Diagram

String Trimmer

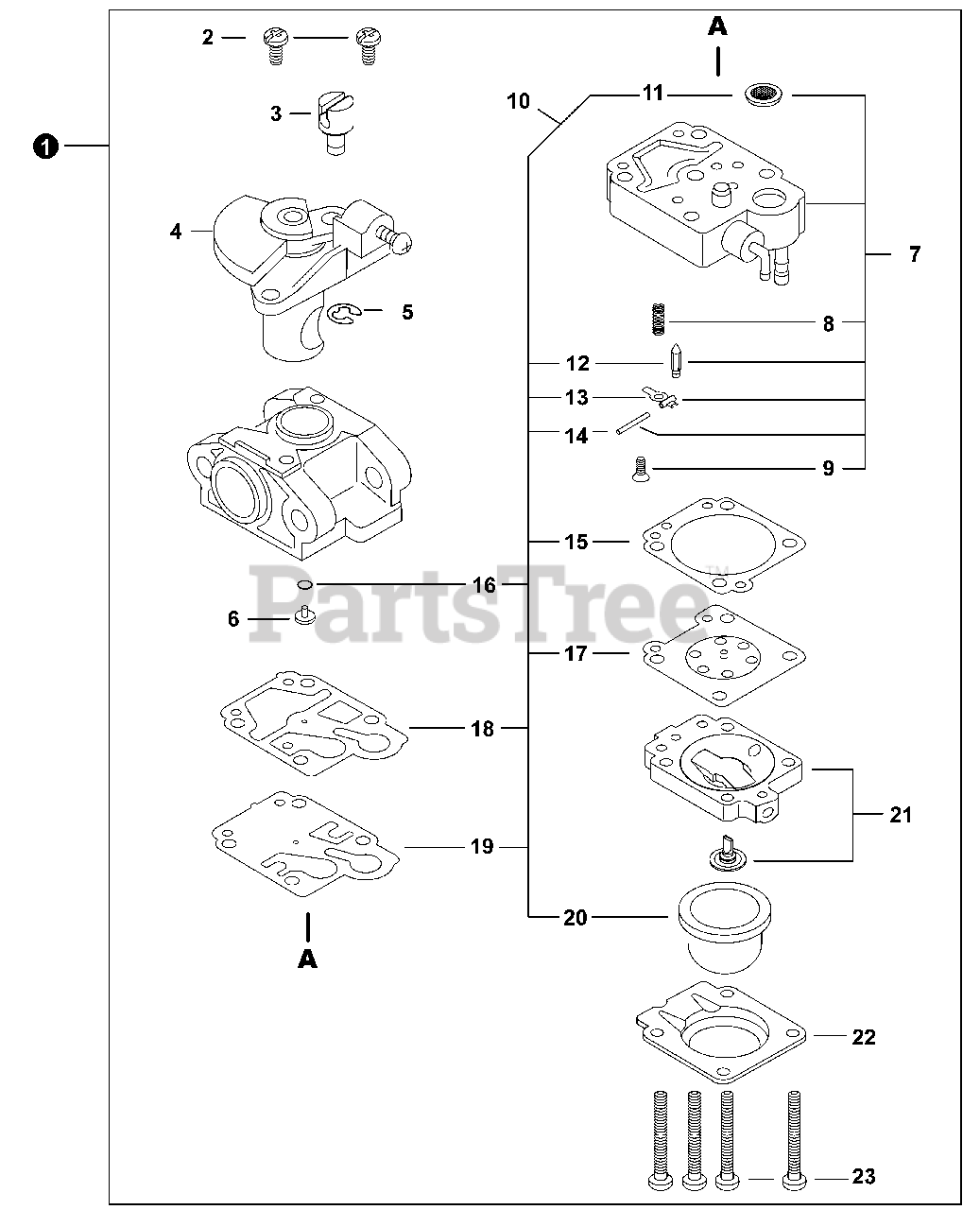

Carburetor Parts Diagram

  • Title

1

Echo A021000550

CARBURETOR - WYL-170

Note: Includes Items 2-23

$83.99

$

Usually ships in 2-4 days

0

2

Echo 12311444330

SCREW, THROTTLE COLLAR

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

4

Echo P003000840

VALVE ASSY, THROTTLE

$37.99

$

Usually ships in 2-4 days

0

5

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

6

Echo 12318444330

JET, MAIN #37

$3.49

$

In Stock, only 4 left!

0

7

Echo 12317905560

BODY ASSY, PUMP

Note: Includes Items 8-9, 11-14

$16.99

$

In Stock, only 1 left!

0

8

Echo 12312205560

SPRING, METERING LEVER

$3.99

$

Usually ships in 2-4 days

0

9

Echo 12313905560

SCREW

$0.99

$

Usually ships in 2-4 days

0

10

Echo P003000060

REPAIR KIT, CARBURETOR

Note: Includes Items 11-20

$10.99

$

In Stock, Qty 13

0

11

Echo 12312610631

SCREEN, FUEL INLET

$1.49

$

In Stock, Qty 19

0

12

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

13

Echo 12312338330

LEVER, METERING

$6.49

$

In Stock, only 1 left!

0

14

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

15

Echo 12314005560

GASKET, METERING DIAPHRAGM

$3.99

$

In Stock, only 2 left!

0

16

Echo 12318305960

O-RING

$1.99

$

In Stock, Qty 5

0

17

Echo P003001850

DIAPHRAGM, METERING

$7.99

$

In Stock, only 1 left!

0

18

Echo 12312540630

GASKET, FUEL PUMP

$4.99

$

In Stock, only 1 left!

0

19

Echo 12311240630

DIAPHRAGM, FUEL PUMP

$12.99

$

In Stock, only 1 left!

0

20

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

21

Echo 12318005560

BODY ASSY, PURGE

$7.49

$

In Stock, only 2 left!

0

22

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

23

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0
