SRM-22 GES - Echo String Trimmer (Original Version) Gear Case Parts Diagram

String Trimmer

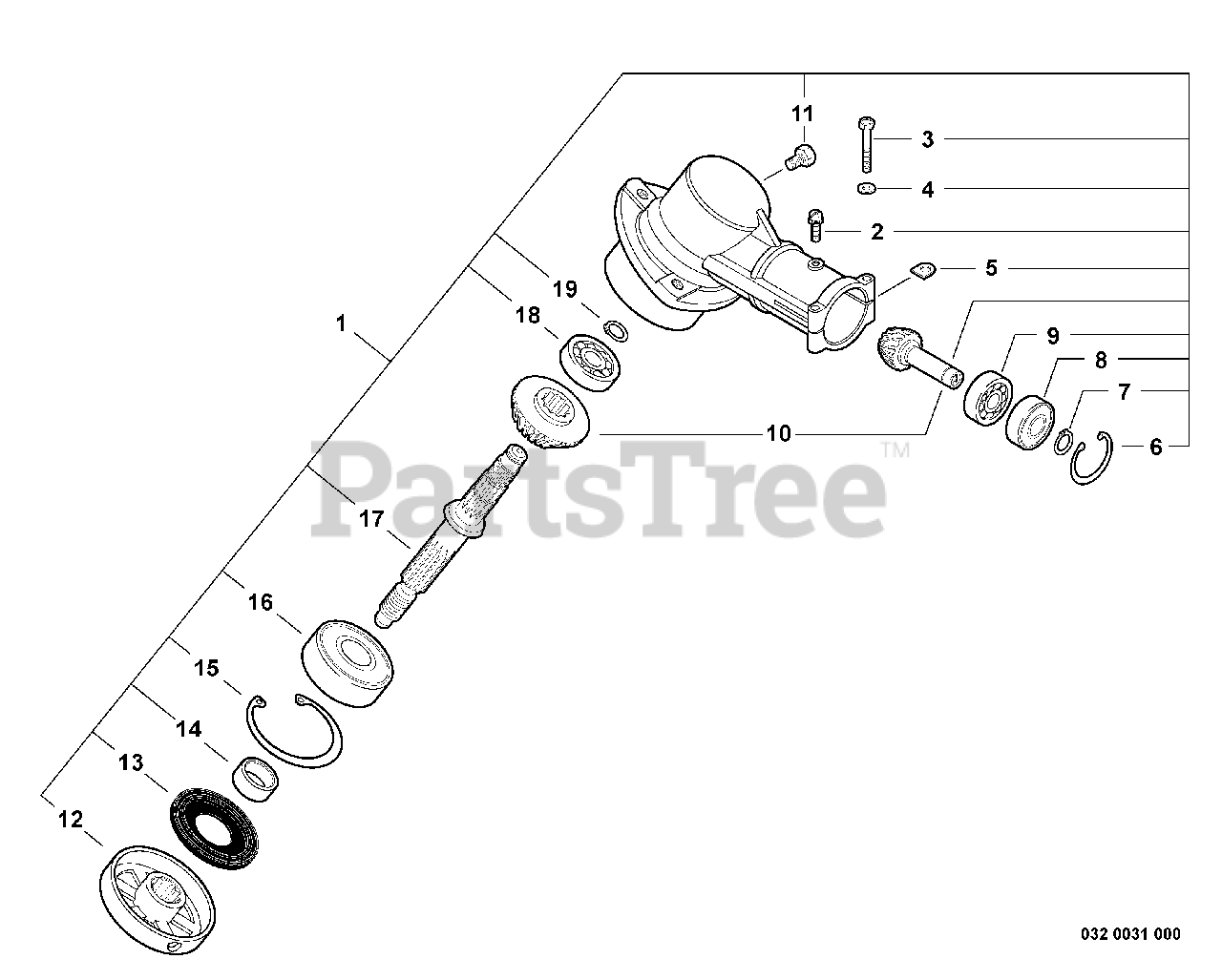

Gear Case Parts Diagram

  • Title

1

Echo P021009541

GEAR CASE ASSY
(Superseded to P021009543)

Note: Includes ITEMS 2-19

$146.99

$

Usually ships in 2-4 days

0

2

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

3

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

6

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

7

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

8

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

9

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

10

Echo 61030044830

GEAR SET - BEVEL

$88.99

$

Usually ships in 2-4 days

0

11

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, only 2 left!

0

12

Echo 61031347731

ADAPTOR, BLADE - UPPER

$12.99

$

In Stock, Qty 18

0

13

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

14

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 5

0

15

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 15

0

16

Echo 90081006201

BEARING, BALL - 6201

$6.99

$

Usually ships in 2-4 days

0

17

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

18

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 11

0

19

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0
