SRM-2110 - Echo String Trimmer (Type 1) Driveshaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

String Trimmer (Type 1)

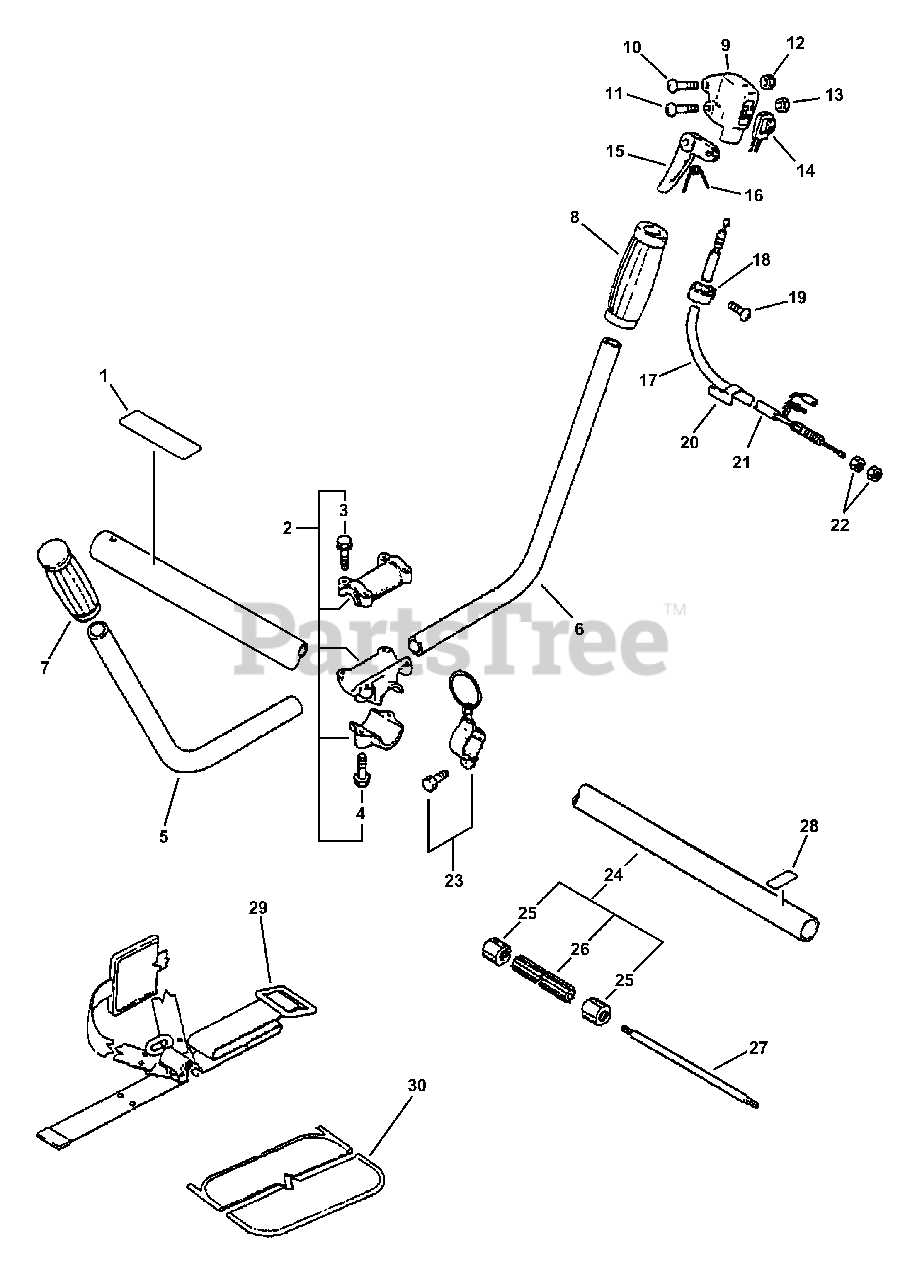

Driveshaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

  • Title

1

Echo 89016054130

LABEL - CAUTION

Note: S/N 001001-503953

$1.49

$

In Stock, only 1 left!

0

2

Echo P021000460

HANDLE BRACKET KIT

Note: INCLUDES ITEMS 3-4; S/N 001001-503953

$28.99

$

Usually ships in 2-4 days

0

3

Echo 90014205025

BOLT - 5X25

Note: S/N 001001-503953

$0.99

$

In Stock, only 4 left!

0

4

Echo 90014206030

BOLT - 6X30

Note: S/N 001001-503953

$0.99

$

Usually ships in 2-4 days

0

5

Echo 35121005530

HANDLE, FRONT - LEFT

Note: S/N 001001-503953

$

$

Not available

6

Echo 35101005530

HANDLE

Note: S/N 001001-503953

$27.99

$

Usually ships in 2-4 days

0

7

Echo 35131102330

GRIP, HANDLE - LEFT

Note: S/N 001001-503953

$6.49

$

In Stock, only 3 left!

0

8

Echo 35131522130

GRIP, HANDLE

Note: S/N 001001-503953

$10.99

$

Usually ships in 2-4 days

0

9

Echo 17802451830

BRACKET, THROTTLE CONTROL

Note: S/N 001001-503953

$7.49

$

In Stock, only 1 left!

0

10

Echo 90022005025

SCREW - 5X25

Note: S/N 001001-503953

$0.99

$

In Stock, only 1 left!

0

11

Echo 17811005330

SCREW - 5X30

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 6

0

12

Echo 90056000005

LOCKNUT - 5

Note: S/N 001001-503953

$1.49

$

In Stock, Qty 20+

0

13

Echo 90050000005

NUT - 5

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 20+

0

14

Echo 16340149230

IGNITION SWITCH ASSY
(Superseded to A440000340)

Note: S/N 001001-503953

$11.99

$

In Stock, only 1 left!

0

15

Echo 17801006460

TRIGGER, THROTTLE

Note: S/N 001001-503953

$4.99

$

In Stock, only 4 left!

0

16

Echo 17804305230

SPRING, TRIGGER

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 7

0

17

Echo 17800141330

CABLE, THROTTLE
(Superseded to Discontinued)

Note: S/N 001001-503953

$

$

Not available

18

Echo 17810605330

CLAMP

Note: S/N 001001-503953

$4.99

$

Usually ships in 2-4 days

0

19

Echo 90022005010

SCREW - 5X10

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 7

0

20

Echo 17811104930

BRACKET

Note: S/N 001001-503953

$1.99

$

Usually ships in 2-4 days

0

21

Echo 17812708030

TUBE
(Superseded to V475002270)

Note: S/N 001001-503953

$1.49

$

Usually ships in 2-4 days

0

22

Echo 17802105530

LOCKNUT - 6

Note: S/N 001001-503953

$2.99

$

Usually ships in 2-4 days

0

23

Echo C646000060

HANGER KIT
(Superseded to P021046740)

Note: S/N 001001-503953

$3.49

$

In Stock, Qty 20+

0

24

Echo 61060944730

MAIN PIPE ASSY

Note: INCLUDES ITEMS 25-26; S/N 001001-503953

$51.99

$

Usually ships in 2-4 days

0

25

Echo 61024644730

BUSHING

Note: S/N 001001-503953

$1.49

$

In Stock, Qty 20+

0

26

Echo C507000260

LINER - FLEXIBLE

Note: S/N 001001-503953

$25.99

$

Usually ships in 2-4 days

0

27

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

Note: S/N 001001-503953

$16.99

$

In Stock, only 3 left!

0

28

Echo 89015204930

LABEL - ALIGNMENT

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 9

0

29

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

Note: S/N 001001-503953

$21.99

$

In Stock, only 1 left!

0

30

Echo C652000000

CUSHION

$24.99

$

Usually ships in 2-4 days

0
