SRM-2110 - Echo String Trimmer (Type 1) Carburetor S/N: 290323 - 999999, 024171 - 999999 Parts Diagram

String Trimmer (Type 1)

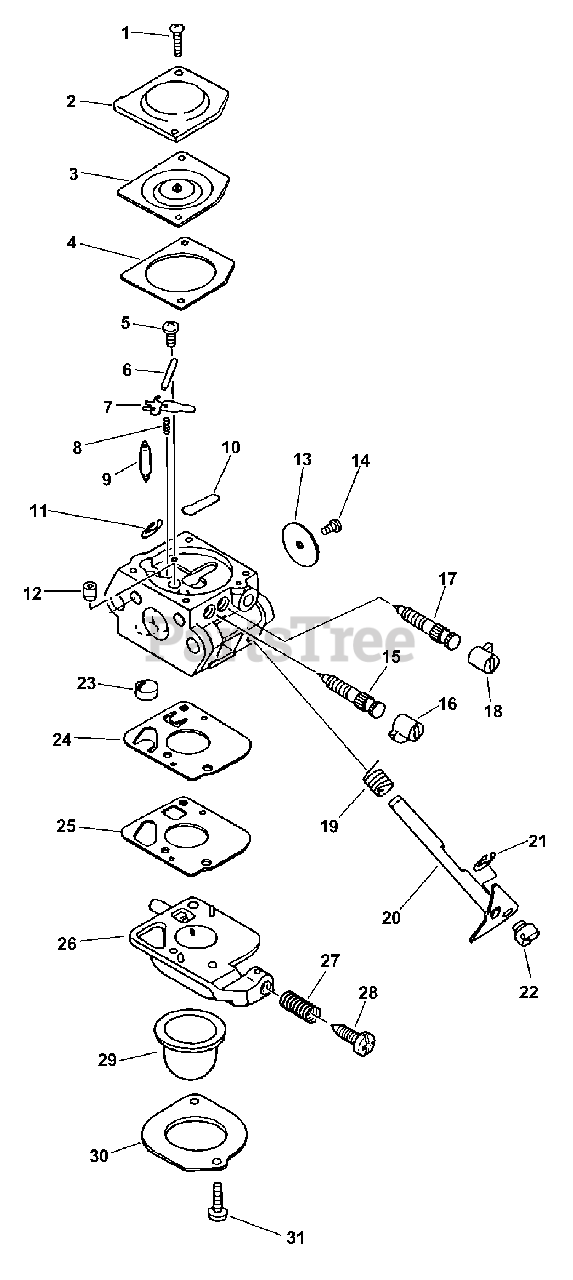

Carburetor S/N: 290323 - 999999, 024171 - 999999 Parts Diagram

  • Title

Echo 12520013312

CARBURETOR C1U-K52
(Superseded to 12520013313)

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP; INCLUDES THE FOLLOWING ITEMS:

$78.99

$

In Stock, Qty 20+

0

1

Echo 12534452130

SCREW

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$0.99

$

In Stock, Qty 8

0

2

Echo 12534213210

COVER, METERING
(Superseded to 12534252130)

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM, METERING

Note: USE REPAIR KIT P/N 12530013310 AND GASKET/DIAPHRAGM KIT P/N 12530313310; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

4

------------------

GASKET, METERING

Note: USE REPAIR KIT P/N 12530013310 AND GASKET/DIAPHRAGM KIT P/N 12530313310; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$0.99

$

In Stock, Qty 12

0

6

------------------

PIN, METERING LEVER

Note: USE REPAIR KIT P/N 12530013310; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

7

------------------

LEVER, METERING

Note: USE REPAIR KIT P/N 12530013310; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: USE REPAIR KIT P/N 12530013310; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: USE REPAIR KIT P/N 12530013310; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

10

------------------

PLUG, WELCH

Note: USE REPAIR KIT P/N 12530013310; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

11

Echo 12532715130

RING, RETAINING

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$0.99

$

In Stock, Qty 9

0

12

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

13

Echo 12531649030

VALVE, THROTTLE

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$2.49

$

Usually ships in 2-4 days

0

14

Echo 12531413930

SCREW

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12532013310

NEEDLE - HIGH SPEED

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$3.99

$

Usually ships in 2-4 days

0

16

Echo 12532939030

CAP, LIMITER

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$1.99

$

In Stock, Qty 11

0

17

Echo 12531813310

NEEDLE - LOW SPEED
(Superseded to 12531813120)

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$4.99

$

Usually ships in 2-4 days

0

18

Echo 12532909860

CAP, LIMITER

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$1.99

$

In Stock, Qty 13

0

19

Echo 12531342030

SPRING, RETURN

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$1.49

$

In Stock, Qty 12

0

20

Echo 12531713310

SHAFT, THROTTLE

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$6.49

$

In Stock, only 1 left!

0

21

Echo 12532713930

RING, RETAINING

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$0.99

$

In Stock, Qty 9

0

22

Echo 12537242030

SWIVEL

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$4.49

$

Usually ships in 2-4 days

0

23

------------------

STRAINER

Note: USE REPAIR KIT P/N 12530013310; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

24

------------------

DIAPHRAGM, PUMP

Note: USE REPAIR KIT P/N 12530013310 AND GASKET/DIAPHRAGM KIT P/N 12530313310; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

25

------------------

GASKET, PUMP

Note: USE REPAIR KIT P/N 12530013310 AND GASKET/DIAPHRAGM KIT P/N 12530313310; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$

$

Not available

26

Echo P005000990

BASE, PURGE

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$22.99

$

In Stock, only 4 left!

0

27

Echo 12533306960

SPRING, IDLE ADJUST

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$1.49

$

In Stock, Qty 10

0

28

Echo 12533406960

SCREW, IDLE ADJUST

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$4.99

$

Usually ships in 2-4 days

0

29

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$6.99

$

In Stock, Qty 20+

0

30

Echo 12536311610

RETAINER, PURGE BULB

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$2.49

$

In Stock, Qty 8

0

31

Echo 12531011610

SCREW, RETAINER

Note: SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP

$1.49

$

In Stock, Qty 13

0

Echo 12530013310

REPAIR KIT
(Superseded to P005002840)

$18.99

$

In Stock, Qty 9

0

Echo 12530313310

DIAPHRAGM/GASKET KIT

$8.99

$

Usually ships in 2-4 days

0
